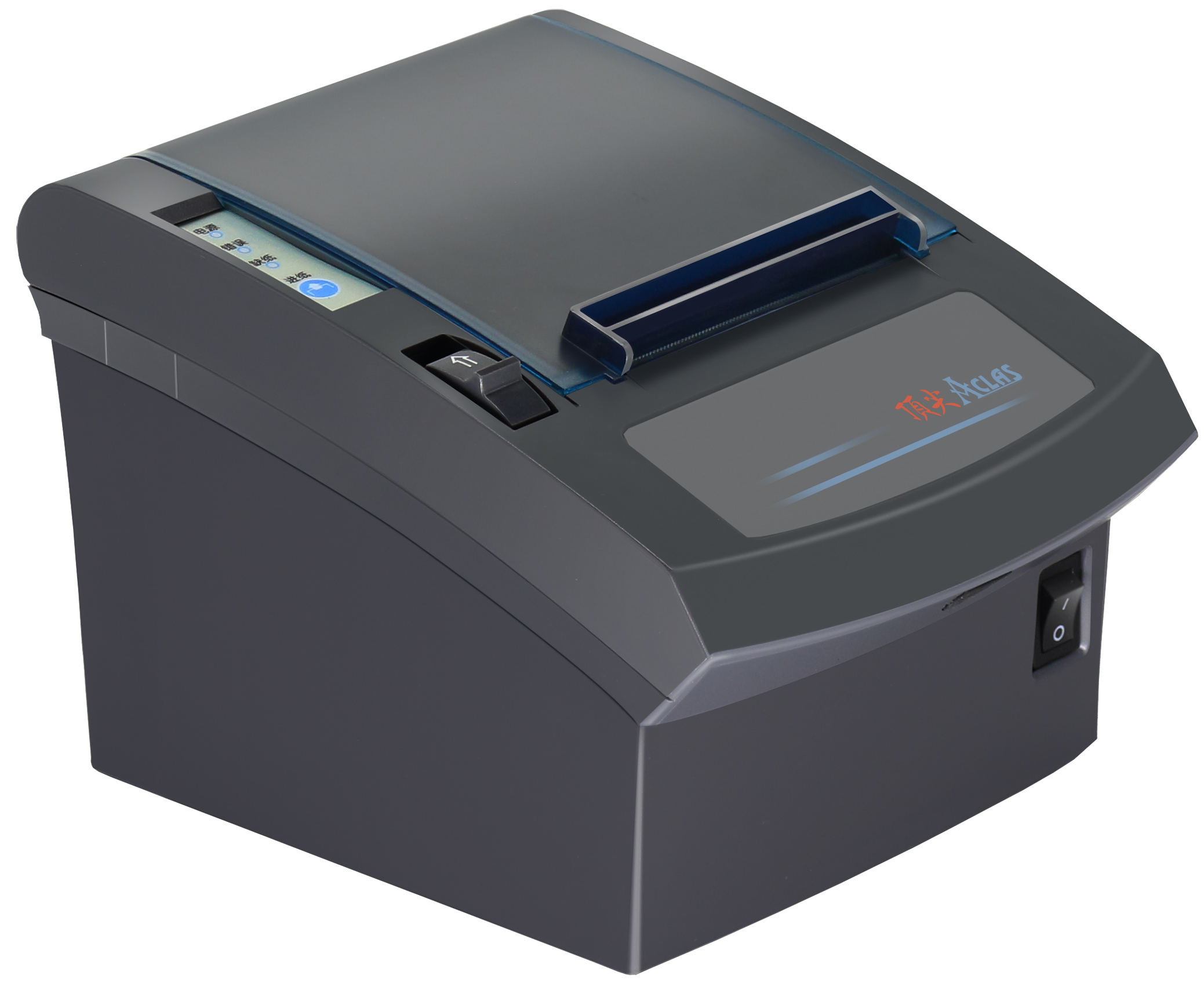

Aclas PP7
Desktop Receipt/Pos Printer



● Direct thermal printing
● Max. 72 mm printing width
● Max. 250 mm /sec printing speed
● RS-232C, USB Wifi LPT, Ethernet and Bluetooth port options
● ESC/POS support
● Auto Cutter
● Paper outlet waterproof

 Operational
 Printing method Direct Thermal
 Printing resolution 203 DPI (8 dots/mm)
 Printing speed Max. 250 mm/sec
 Printing width Max. 72 mm
 Communication interface RS-232C*, USB Wifi*, LPT*, Ethernet* and Bluetooth* port options
 Flash Memory 8 Mbit
Data receiving buffer 128 KByte
 Sensors Paper Near End Sensor
Paper End Sensor
Cover Open Sensor
 Auto Cutter 500,000 times
 TPH Lifetime 100km (recommend to use high quality thermal paper, such as OJI,PD-160R or Aclas paper)
 Physical
 Width 196,5 mm
 Height 135 mm
 Length (Depth) 145 mm
 Weight -
 Material ABS Plastic
 Electrical
 Power input type External adaptor
 Power source (Input) DC 24V, 2A
 Environmental
 Operation temperature 0 °C ~ 40 °C
 Humidty %5 ~ %90 (Non Condensing)
 Label
 Type Thermal receipt paper
 Width Max. 79,5 ±0,5 mm
 Roll Outside diameter 80 mm (Max.)
 Software
 Windows Compatibility Windows 2000/XP/VISTA/WIN7
Supported printing language Compatible with command ESC/POS
Supported barcodes types UPC-A, UPC-E, Code 39, Code 128, EAN 128, JAN-8,JAN-13 (EAN), Interleaved 2 Of 5, Codabar
 Fonts
Character Set ANK,GB2312,BIG5
Character Size Font A:12*24 letters; Font B:24*24 Chinese character
Character Per Line FontA:48 FontB:24
 Turkish
 Data Sheet
 User Manual
 English
 Data Sheets
 User Manual
 Programming Manual
 Driver Installation Manual
 Windows Driver  Windows 2000, XP, Vista, 7 (32 Bit)
 Windows Driver  Windows 2000, XP, Vista, 7 (64 Bit)
