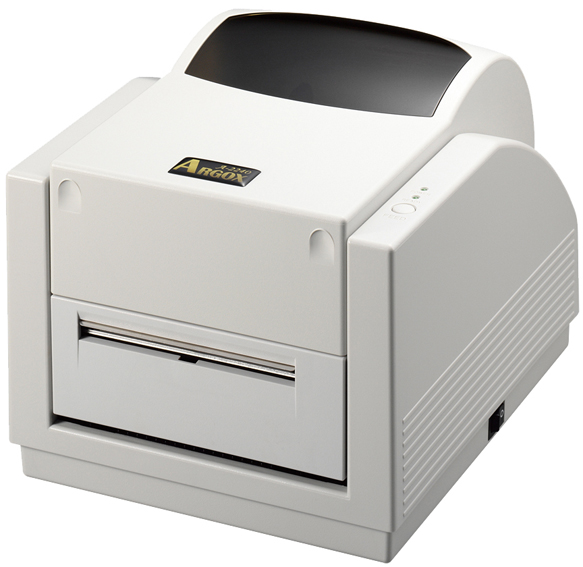

Argox A-2240
Intermediate Level Barcode Printer



● Direct Thermal And Thermal Printing
● 203 DPI Printing Resolution
● Max. 104 mm Printing Width
● Max. 2540 mm Printing Length
● Max. 127 mm / Sec Printing Speed
● 8 MB DRAM and 4 MB Flash ROM
● PPLA, PPLB ve PPLZ Support
● RS-232C and USB Port

 Operational
 Printing method Direct thermal and thermal transfer
 Printing resolution 203 DPI (8 dots/mm)
 Printing speed (Maximum) 127 mm/saniye
 Printing length 13 ~ 2540 mm
 Printing width 25 mm ~ 104 mm
 Memory 8 MB DRAM, 4 MB Flash ROM
 Proccessor 32 bit RISC micro proccessor
 Operation interface 1 button (Feed) and 2 LED (Power and Ready)
 Communication interface Serial Port (RS-232C) and USB 2.0 port
 Sensor Reflective and transmissive (Fixed)
 Print directions 0, 90, 180, 270 degree
 Agency listing CE, FCC, cTUVus and CCC
 Physical
 Width 200 mm
 Height 170 mm
 Length (Depth) 245 mm
 Weight 2,2 kg
 Material ABS Plastic
 Electrical
 Power input type External adaptor
 Power source (Input) 100V~240V±10%, 1.5A, 50~60Hz
 Power source (Output) 24VDC, 2.4A (70W Max)
 Environmental
 Operation temperature 4 °C ~ 38 °C
 Storage temperature -20 °C ~ 50 °C
 Humidty %10 ~ %90 (Non Condensing)
 Label
 Type Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper
 Width 25,4 mm ~ 110 mm
 Thickness 0.0635 ~ 0.254 mm
 Roll Inside diameter 25,4 mm
 Roll Outside diameter 127 mm (Maximum)
 Ribbon
 Type Wax, Wax/Resin and Resin
 Ink side Outside
 Width 25,4 mm ~ 110
 Length 100 Meter (Maximum)
 Roll Inside diameter 13 mm
 Roll Outside diameter 37 mm (Maximum)
 Software
 Windows drivers Windows 2000/XP/2003/VISTA/Windows 7
 Label Design programs Argobar Lite/ Pro or Bartender UltraLite (Free)
 Utility programs Printer Utility and Font Utility
 Supported barcode printing language PPLA, PPLB and PPLZ
Supported graphics formats PPLA: PCX, BMP, IMG, HEX and GDI
PPLB: PCX, BMP, IMG, HEX,GDI and Binary raster
PPLZ: GRF,HEX and GDI
 Supported Barcode Types
 1D PPLA: Code 39 (standard/with checksum digit), Code 93 Interleaved 2of 5 (standard/with checksum digit/with human readable check digit), EAN-8, EAN-13,UPC-A, UPC-E, Postnet, Codabar, Code 128 subset A/B/C, UCC/EAN-128, UCC/EAN-128 K-MART, UCC/EAN-128 , Random Weight, Plessey, HBIC, Telepen, FIM, UPC2, UPC5, GS1 Data Bar
PPLB:Code 39 (standard/with checksum digit),Code 93 Interleaved 2 of 5 (standard/with checksum digit/with human readable check digit), EAN-8 (standard/2 digit add-on/5 digit add-on), EAN-13 (standard/2 digit add-on/5 digit add-on), UPC-A (standard/2 digit add-on/5digit add-on), UPC-E (standard/2 digit add-on/5
digit add-on), Postnet, Codabar, Code 128 subset A/B/C, Code 128 UCC (Shipping Container Code), Code 128 Auto, German, Postcode, Matrix 2 of 5, UCC/EAN 128, UPC Interleaved 2 of 5, GS1 Data Bar
PPLZ: Code 39 (standard/with checksum digit), Code 93 Interleaved 2of 5 (standard/with checksum digit/with human readable check digit), EAN-8, EAN-13, UPC-A, UPC-E, Postnet, Codabar, Code 128 subset A/B/C, Code 128 Auto, UPC/EAN-Extension, Plessey, Industrial 2 of 5 , Standard 2 of 5, Logmars, MSI, Code 11, GS1 DataBar
 2D PPLA/PPLB/PPLZ: MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, Composite codes
 Accessories
 Optional Items Cutter
Dispencer Kit
RTC (Real Time Clock)
Stacker
ArgoKee keyboard
 Turkish
 Data Sheets
 İngilizce
 Data Sheets
 Users Manual
 Argox Windows Driver  Windows XP, Vista, 7, Server 2003, Server 2008, Server 2008R2 (32 Bit & 64 Bit)
 Seagull Windows Driver  Windows XP, Vista, 7, Server 2003, Server 2008, Server 2008R2 (32 Bit & 64 Bit)
 Argobar Pro  Label Design and Printing Software
 Bartender UltraLite  Label Design and Printing Software
 Printer Utility  Printer Configuration Software
 Font Utility  Font Create / Download Software
 S.D.K  Software Developement Kit
