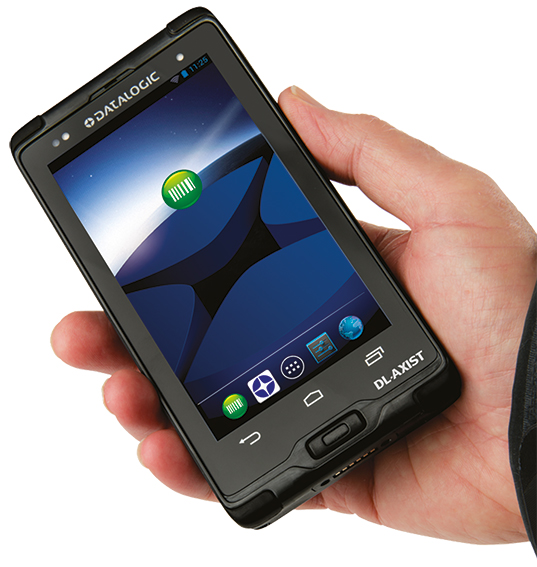

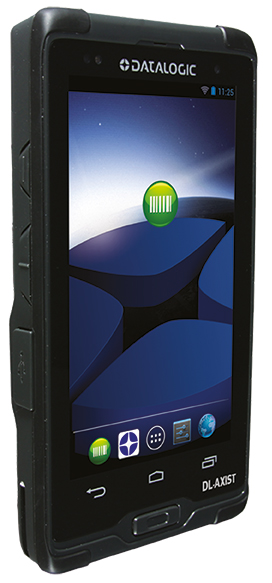

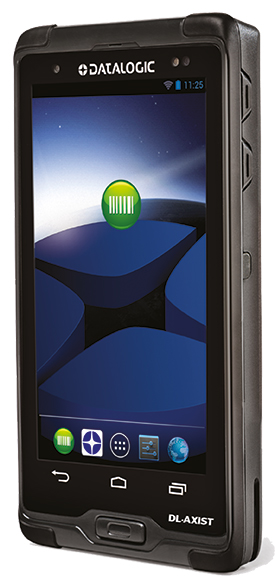

Datalogic DL-Axist
Android Handheld Terminal



● Android 4.4 (Kit Kat) operation systems
● TI OMAP 4430 Dual Core 1 Ghz proccessor
● 1 GB DDR-RAM, 8 GB eMMC ROM
● 5 Inch (1280 x 720 pixel) TFT, IPS LCD Display
Wifi, Bluetooth, RFID, GPRS (3,5G), GSM, GPS  technology
● 1,8 mt (6 ft) drop resistance
● IP67 Protection Class
● 5MP CMOS Sensor Autofocus Camera with Flash

 System5/font>
 Micro Processor 1TI OMAP 4430 Dual Core 1 Ghz proccessor
 Memory 1 GB Mobile DDR RAM, 8 GB eMMC Flash ROM
 Operation System Android 4.4 (Kit Kat)
 Embedded Sensors Accelerometer, Gyroscope, Ambient light, Proximity
 Real Time Clock Time and date stamping under software control
 Expansion Slots Micro-SD card slot: Compatible with Micro SD-HC cards, Data transfer up to 48 Mbps, User-accessible
 Camera Resolution 5 megapixel
Illumination User controllable LED flash
Lens Auto focus
 Display
 Display Type TFT HD, LED Backlight
 Dimension 5" (Inch)
 Resolutioin 1280 x 720 Pixel
 Touch Panel 5 points multitouch capacitive panel with Corning Gorilla Glass 3, Glove Support
 Keypad
 Physical Keys Home/Scan Key and 2 side scan keys, Power On/Off, Volume Up/Down
 User programmable key 3 user programmable virtual keys out of the display area
 Physical
 Dimension Length: 157 mm, Width: 80, Thickness: 19 mm
 Weight With Standard Battery: 350 g, With High Capacity Standard Battery: 400 g
 Audio Standard 3.5 mm audio jack, suitable for headsets or mobile POS attachables
 Interfaces
 Interfaces Micro-USB connector High Speed USB 2.0 Hostand Client
Ethernet Via single dock, up to 1 Gbps
 Barcode Scanner
 Type 2D Area Imager
 Supported Barcode Types 1D And 2D
 Resolution 752 x 480 pixels (WVGA)
 Goog Read Feedback Datalogic Green Spot
 Depth of field 8,5 cm ~ 50 cm
 Illumination White LEDs
 Aiming 650 nm VLD
 Field of View 40°H x 26°V
 Print Contrast (Minimum) %25
 Minimum Element Width 1D 0.0762 mm (3 Mil)
PDF 0.127 mm (5 Mil)
DataMatrix 0.195 mm (7.5 Mil)
 Decoding Capability
 1D / Linear Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes
 2D Codes Aztec Code, Data Matrix, MaxiCode, QR Code, UPU FICS, USPS Intelligent Mail
 Postal Codes Australian Post, Japan Post, KIX Code, PLANET,POSTNET, Royal Mail Code (RM4SCC)
 Stacked Codes Micro-PDF417, PDF417, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
 Regulatory Approvals
 Regulatory Approvals CE, NCC, FCC, BSMI, VCCI, CCC and RoHS compliance
 Wireless Communications
 WLAN 802.11 a/b/g/n Cisco CCX v4 certified (Supporting MIMO Technology)
 PAN Bluetooth 4.0 ((IEEE 802.15)
 WWAN 3G/4G (HSPA+): 850/900/1800/1900/2100 MHz (Voice & data communication)
 GPS Integrated Assisted-GPS (A-GPS) with u-blox technology; Supported Types: GPS, GLONASS, Beidou; Time-To-First-Fix: Cold starts 26s; Aided starts 2s; Reacquisition 1.5s
 NFC Support for the following standards: ISO14443-4 (type-A, type-B); ISO15693; Mifare; Felica
 Electrical
 Battery Standard Battery: 3,8V 3200 mAh Li-Ion Battery
Extended Battery: 3,8V 6400 mAh Li-Ion Battery
 Working time With Standard Battery: ~ 10 Hours
With Extended Battery: ~ 20 Hours
 Enviromental
 Operating temperature -20°C to 50°C
 Storage temperature -30°C to 70°C
 Drop test to Concrete Without Rubber Boot: 1,2 meter
With Rubber Boot: 1,8 meter
 Environmental Sealing IP67
 Safety & Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use
 Enviromental Compliance Complies to EU RoHS
 2D Imager Aiming System (laser): EN/IEC 60825-1:2007 (Class 2); 21 CFR 1040 (CDRH) (Class 2) Illumination System (white LEDs): IEC 62471 Exempt risk group
 Software
 Applications Datalogic’s SoftSpot technology for configurable soft triggers, Pre-licensed device and browser lockdown powered by 42Gears, Enterprise class PTT offered by Zello
 Configuration and maintenance Datalogic DXU for device configuration and firmware upgrade from PC, NFC Tap to Configure,NFC Tap to Pair (for other Bluetooth® devices)
 Develepment Datalogic SDK™ with Android
 Accessories
 Accessories Single Slot Dock USB
Single Slot Ethernet
4-Slot Battery Charger

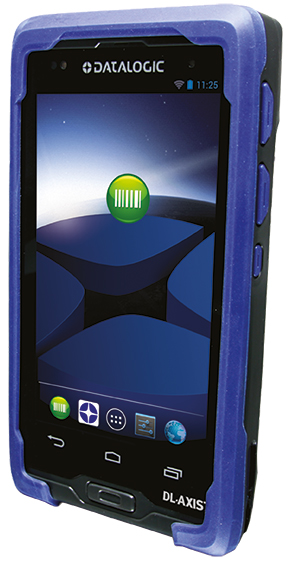

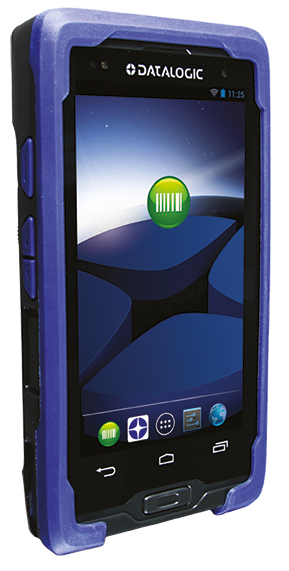

Rubber Boot
Hand Strap
Bluetooth Headset
