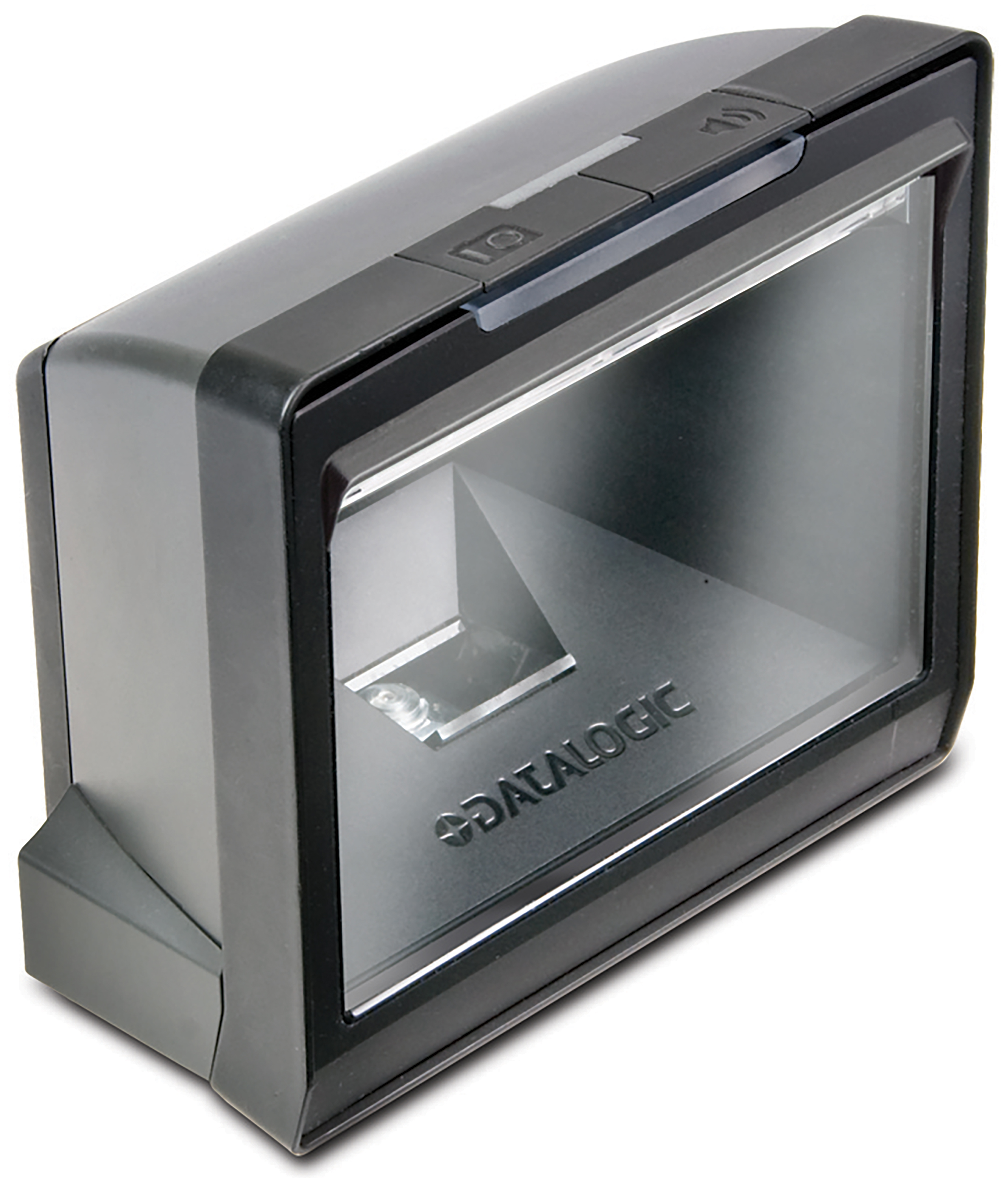

Datalogic Magellan 3200VSi
Imager Barcode Scanner


1D/2D Imager barcode Scanner
● 1
280 x 1024 Pixel Image Capture
Aggressive scanning performance
Advanced Data Formatting
Read barcodes from mobile phone and PC screen
IP52 Standard
● Schockproof to 1,2 meters
● Upgradable capability with MicroSD card

 Scanning Capability
 1D Linear Barcodes Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
 2D Barcodes Aztec code; Data Matrix (ecc200 Only); Maxicode; QR code
 Stacked Codes GS1 DataBar composites; GS1 DataBar expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDf417; PDf417
 AC Power requirements 90-264VAC, 47-63 Hz
 Power consumption Operation Mode: 8.75 Watts (Max), 2.8 Watts (Nominal)
 Power consumption Standby Mode: 2.0 Watts
 Light Levels 0-86.100 Lux
 Operation temperature 0°C ~ 40°C
 Storage temperature -40 °C ~ 70 °C
 Humidty %5 ~ %95 (Non Condensing)
 ESD Protection (Air Discharge) 25 kV
 Interfaces IBM 46xx; Keyboard Wedge; OEM (IBM) USB; RS-232; USB
 Auxiliary Ports Powered RS-232
 Optional Features
 EAS Features checkpoint Systems: Integrated eAS hardware will work with counterpoint IV, V, VI and VII models
Sensormatic: Good Read Acknowledgement
 Value Addes Features Diagnostic Reporting; Productivity Index Reporting™ (PIR)
 Height 142 mm
 Width 152 mm
 Depth 82 mm
 Weight 600 gr
 Reading Performance
 Graphic format BMP, JPEG
 Imager Sensor 1280 x 1024
 Light Source Illumination: Multiple diffused 625nm LeDs
 Print Contrast (Max) %25
 Read Rate 39 Million pixels per second
 Reading Angle Pitch: +/- 65°; Roll (Tilt): 0 - 360°; Skew (Yaw): +/- 75°
 Indicators (LED) Beeper (Adjustable Tone and Volume); Good Read LeD; Good Transmission
 Resolution (Max.) 0,127 mm (5 Mil)
 Scanning Distances
 Scanning Distances (1D) 5 mils: 1.3 to 6.4 cm
7.5 mils: 1.3 to 11.4 cm
10 mils: 0 to 15.2 cm
13 mils: 0 to 20.3 cm
20 mils: 0 to 22.9 cm
 Safety and Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use.
 Environmental Compliance Complies to China end EU RoHS
 LED Classification EN 60825-1 Class 1 LED; IEC 60825-1 Class 1 LED Product
 Magellan OSP Magellan On-Screen Programming (OSP) configuration software is available for download at no charge.
 OPS/JAVAPOS JavaPOS Utilities are available for download at no charge.  OPOS Utilities are available for download at no charge.
 Remote Host Download Lowers service costs and improves operations.
