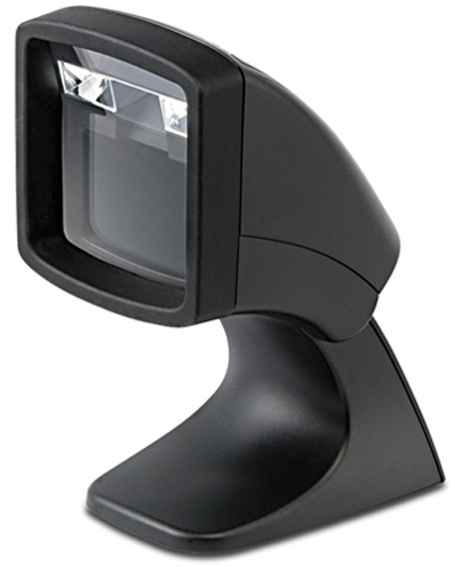

Datalogic Magellan 800i
Imager Barcode Scanner



● 1D Imager barcode Scanner
752 x 458 Pixel Image Capture
Aggressive scanning performance
Advanced Data Formatting
Read the phone and PC screen
Support both omnidirectional and single-line scanning
IP52 Standard
● Schockproof to 1,2 meters

 Reading Performance
 Light source 752x480 pixel
 Graphic format JPEG
 Print Contrast (Minimum) 25%
 Scan Angle Pitch: +/- 60°; Roll (Tilt): 0-360°; Skew (Yaw): +/- 60°
 Indicators (LED) Adjustable Beeper Tone, Good Read LED
 Resolution 0.130 mm / 5 mil (Maximum)
 Physical
 Height 151 mm
 Depth 76 mm
 Width 109 mm
 Weight 306,2 gr (Without Stand)
 Color Black
 Electrical
 AC Power requirements 5VDC ± %10
 Power consumption Operation Mode: 350 mA @5VDC
 Power consumption Standby Mode: 250 mA @5VDC
 Environmental
 Light Levels Internal Environment: 6.000 Lux, Internal Environment:86.000 Lux
 Operation temperature 0°C ~ 40°C
 Storage temperature -40 °C ~ 70 °C
 Nem %5 ~ %95 (Non Condensing)
 Drop Durability 1,2 meter
 IP Standard IP52
 ESD Protection (Air Discharge) 16 kV
 Scanning Capability
 1D Linear Barcodes Autodiscriminates all standard 1D codes including GS1 Databar™ linear codes
 2D Barcodes Aztec Code; Data Matrix; MaxiCode; QR Code
 Stacked Codes GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1, DataBar Stacked Omnidirectional; MicroPDF417; PDF417
 Scanning Distances
 Scanning Distances (1D) 5 mils: 0 ~ 2.5 cm
7.5 mils: 0 ~ 8.2 cm
10 mils: 0 ~ 12.7 cm
13 mils UPC: 0 ~ 15.2 cm
 Scanning Distances (2D) 6.6 mils PDF417: 0 ~ 7.6 cm
10 mils Data Matrix: 0.6 ~ 3.1 cm
10 mils PDF417: 0 ~ 12.7 cm
15 mils PDF417: 0 ~ 15.2 cm
24 mils Data Matrix: 0 ~ 12.7 cm
 Safety and Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use.
 Environmental Compliance Complies to China end EU RoHS
