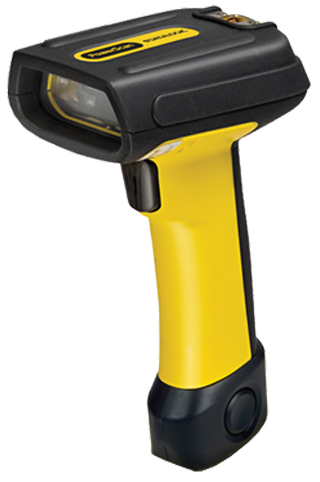

Datalogic PowerScan PBT7100
Industrial 1D Barcode Scanner



● Wireless Industrial Barcode Scanner
● Bluetooth Wireless Technology with up to 100 m
● Decodes 1D, stacked codes and postal codes
● 0,076 mm (3 mil) resolution
● Water and particulate sealing rating:IP65
● Drop resistance to 2.0 m
● Ability to work even at -20°C
● Multi Interface Support

 Cordless Communication
 Protocol Bluetooth 2.0 Class 1
 Frekans 2,4 ~ 2,48 Ghz
 Radio Range (Open Air) 100 m (328 ft)
 Decoding Capability
 1D Linear Barcodes Autodiscriminates all standard 1D codes including GS1 Databar™ linear codes
 Postal Codes China Post
 Stacked Codes GS1 DataBar Expanded Stackedi GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
 Electrical
 Battery Battery Type: Lithium-Ion: 2400 mAh
Charge Time: External Power: 4 Hours
Reads per Charge: 22,000 +
 Current Operating: 280 mA @ 5 VDC (BC70X0)
Standby/Idle: 210 mA @ 5 VDC (BC70X0)
 Input Voltage 5VDC ±%5, 7 - 14 VDC
 Environmental
 Light Levels 0 ~ 100.000 Lux
 Drop Durability 2 meter
 ESD Protection (Air Discharge) 25 kV
 Humidty %5 ~ %95 (Non Condensing)
 Operation temperature -20°C ~ 50°C
 Storage temperature -40 °C ~ 60 °C
 IP Standard IP65
 Interfaces
 Supported Interfaces RS-232, IBM 46XX, USB (Multi-Interface)
RS-232, USB, Keyboard Wedge, Wand (Multi-Interface)
 Physical Characteristics
 Color Available Black or Yellow/Black
 Dimensions Cradle: 23.9 x 11.7 x 4.8 cm (9.4 x 4.6 x 1.9 in)
Reader: 20.3 x 7.6 x 11.4 cm (8.0 x 3.0 x 4.5 in)
Weight Cradle: 326.2 g (11.5 oz), Reader: 354.4 g (12.5 oz)
 Reading Performance
 Light Source Aiming: 630 - 680 nm VLD
Illumination: LED Array 630 - 670 nm
 Print Contrast Ratio (Min.) 15%
 Reading Angle Pitch: ±65°; Roll (Tilt): 30°; Skew (Yaw): ±65°
 Reading Indicators Beeper (Adjustable Tone),Datalogic ‘Green Spot’ Good Read Feedback, Good Read LED
 Resolution (Max.) 0.076 mm (3 mils)
 Scanning Distances
 Scanning Distances 5 mil: 1,5 cm ~ 14 cm
7,5 mil: 0 cm ~ 44 cm
10 mil: 0 cm ~ 60 cm
20 mil: 0 cm ~ 119 cm
40 mil: 0 cm ~ 240 cm
Reflective-55 mil: 0 cm ~ 300 cm
Reflective-100 mil: 0 cm ~ 530 cm
 Safety and Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
 Environmental Compliance Complies to China end EU RoHS
 Laser Classification Caution Laser Radiation - Do not stare into beam EN 60825-1 Class 1
 Utilities
 Datalogic Aladdin™ Datalogic Aladdin configuration program is available for download at no charge
 Remote Host Download Lowers service costs and improves operations.
