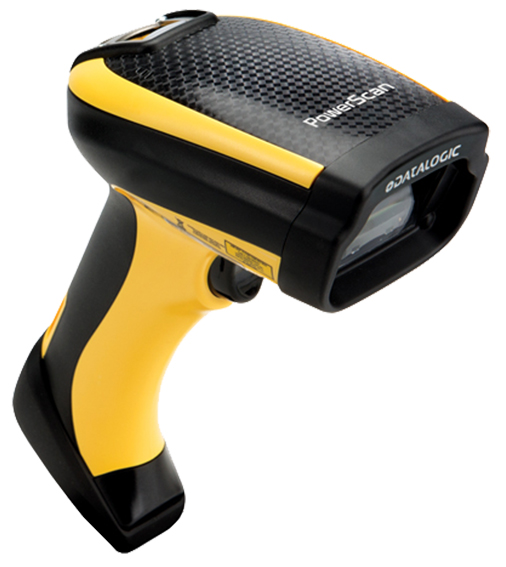

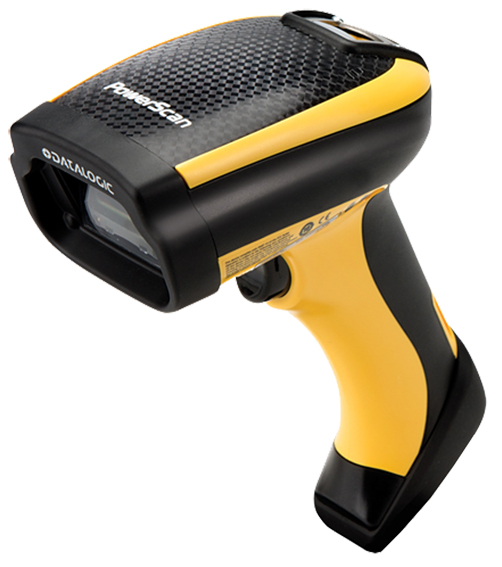

● Corded Industrial Barcode Scanner
● Supports 1D, stacked and 2D codes, postal codes and image capture
● 1280 x 10240 pixel Imager Sensor
● 0,1 mm (4 mil) resolution
● Water and particulate sealing rating:IP65
● Snappy omnidirectional reading from contact to over 1.0 m
● Datalogic’s new instinctive ‘frame’ aimer
● New ‘soft white light’ illumination
● Datalogic’s 3GL™ (3 Green Lights) technology and loud beeper for good read feedback
● Datalogic’s Motionix™ motion-sensing technology
● Drop resistance to 2.0 m
● Ability to work even at -20°C
● Keyboard Wedge, RS-232 and USB Interface
| Decoding Capability | ||
| 1D Linear Barcodes | Autodiscriminates all standard 1D codes including GS1 Databar™ linear codes | |
| 2D Codes | Aztec Code, Aztec Mesas, Data Matrix, MaxiCode, QR Code | |
| OCR Codes | OCR-A and OCR-B | |
| Postal Codes | Australian Post, China Post, IMB, Japanese Post, KIX Post, Planet Code, Portuguese Post, Postnet, Royal Mail Code (RM4SCC), Swedish Post | |
| Stacked Codes | EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites | |
| Electrical | ||
| Input Voltage | PD9530-HPE: 50 mA @ 10 VDC | |
| PD9530/PD9530-HP: 5 VDC +/- 10% | ||
| PD9530-HPE: 10-30 VDC | ||
| Current | Operating | PD9530/PD9530-HP: 335 mA |
| PD9530-HPE: 135 mA @ 10 VDC | ||
| Standby/Idle | PD9530/PD9530-HP: 180 mA | |
| Environmental | ||
| Light Levels | 0 ~ 100.000 Lux | |
| Drop Durability | 2 meter | |
| ESD Protection (Air Discharge) | 20 kV | |
| Humidty | %0 ~ %95 (Non Condensing) | |
| Operation temperature | -20°C ~ 50°C | |
| Storage temperature | -40 °C ~ 70 °C | |
| IP Standard | IP65 | |
| Interfaces | ||
| SupportedInterfaces | Keyboard Wedge, RS-232 and USB (Multi Interface) | |
| Physical | ||
| Dimensions | 212 mm x 110 mm x 74 mm | |
| Weight | 330 gr | |
| Color | Yellow Or Black | |
| Reading Performance | ||
| Imager Sensor | PD9530: 864 x 544 Pixel | |
| PD9530-HP/PD9530-HPE:1280 x 1024 Pixel | ||
| Image Capture | Graphic Formats: BMP, JPEG, TIFF | |
| Greyscale: 256, 16, 2; JPEG, TIFF | ||
| Light Source | Aiming: 630 - 680 nm VLD | |
| Illumination: White LED reading light | ||
| Print Contrast Ratio (Min.) | 15% | |
| Reading Angle | Pitch: ±40°; Roll (Tilt): 360°; Skew (Yaw): ±40° | |
| Reading Indicators | Beeper (Adjustable Tone and Volume), Datalogic’s 3GL™ (Three Green Lights) technology and loud beeper for good-read feedback, Datalogic ‘Green Spot’ on the Code, Dual Good Read LEDs | |
| Resolution (Max.) | PD9530: 1D Codes: 4 mil, 2D Codes: 7.5 mil | |
| PD9530-HP/PD9530-HPE: 1D Codes: 2.5 mil; 2D Codes: 4 mil | ||
| Scanning Distances | ||
| PD9530 |
1D |
4 mil: 6 cm ~ 17 cm |
| 13 mil: 4 cm ~ 45 cm | ||
| 20 mil: 4 cm ~ 55 cm | ||
| 40 mil: 4 cm ~ 85 cm | ||
|
2D |
10 mil (PDF417): 2 cm ~ 25 cm | |
| 7,5 mil (Datamatrix): 9 cm ~ 12 cm | ||
| 10 mil (Datamatrix): 4 cm ~ 18 cm | ||
| PD9530-HP/ PD9530-HPE |
1D |
2,5 mil: 2 cm ~ 6 cm |
| 13 mil: 3 cm ~ 60 cm | ||
| 20 mil: 3 cm ~ 70 cm | ||
| 40 mil: 3 cm ~ 110 cm | ||
|
2D |
10 mil (PDF417): 2 cm ~ 30 cm | |
| 4 mil (Datamatrix): 2 cm ~ 6 cm | ||
| 10 mil (Datamatrix): 2 cm ~ 20 cm | ||
| Safety and Regulatory | ||
| Agency Approvals | The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications. | |
| Environmental Compliance | Complies to China RoHS, Complies to EU RoHS, Complies to R.E.A.C.H. | |
| Laser Classification | Caution Laser Radiation - Do not stare into beam CDRH Class II, IEC 60825 Class 2 | |
| LED Classification | IEC 62471 Class 1 LED | |
| Utilities | ||
| Datalogic Aladdin™ | Datalogic Aladdin configuration program is available for download at no charge | |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
|
| Remote Host Download | Available on request | |
