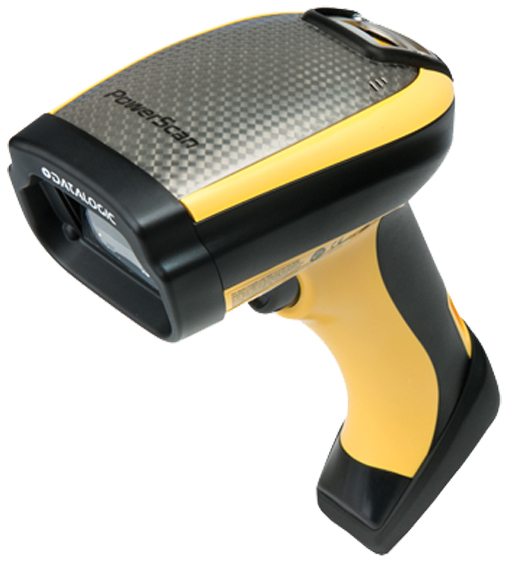

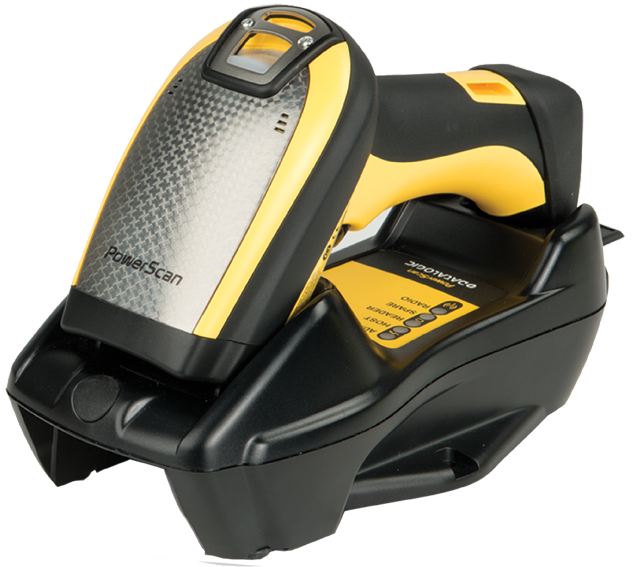

Datalogic PowerScan PM9500-DPM
Industrial 2D/DPM Barcode Scanner



● Wireless Industrial Barcode Scanner
● Datalogic Star2® System Wireless Technology with up to 150 m
● Decodes 1D, 2D, Stacked Codes and Postal Codes
● Supports any kind of Direct Part Marked (DPM) code
● 0,063 mm (2,5 mil) resolution
● Water and particulate sealing rating:IP65
● Lithium-Ion battery replaces in 3 seconds!
● Datalogic’s Motionix™ motion-sensing technology
● Soft white light illumination
● Intuitive aiming system
● Drop resistance to 2.0 m
● Ability to work even at -20°C
● Multi Interface Support

 Cordless Communication
 Datalogic Star2 Cordless System Point to Point Configuration
Mult Point Configuration
Seamless Roaming
Two Way Communications
 Effective Radiated Power 433 MHz <10 mW
910 MHz <50 mW
 Frequency 433 MHz or 910 MHz
 Radio Range (Open Air) 433 MHz: 100 m (Low Speed), 50 m, (High Speed)
910 MHz: 150 m (Low Speed), 80 m, (High Speed)
 Decoding Capability
 1D Linear Barcodes Autodiscriminates all standard 1D codes including GS1 Databar™ linear codes
 2D Codes Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code
 Postal Codes Australian Post, China Post, IMB, Japanese Post, KIX Post, Planet Code, Portuguese Post, Postnet, Royal Mail Code (RM4SCC), Swedish Post
 Stacked Codes EAN/JAN Composites, GS1 DataBar Composites,GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
 Electrical
 Battery Battery Type: Lithium-Ion: 2150 mAh
Charge Time: External Power: 4 Hours, Host Power: 10 hours
Reads per Charge: 50,000 +
 Current Charging: External Power: 800 mA @ 10 VDC
POT:500mA @ 10 VDC
 Cradle Indicator LEDs RED: Battery Charging
Green: Charge Completed
Yellow: Power/Data
 Input Voltage 10 - 30 VDC, POT: 5 VDC +/- 10%
 Environmental
 Light Levels 0 - 100,000 lux
 Drop Durability Cradle: 1,2 Meter, Reader: 2 Meter
 ESD Protection (Air Discharge) 20 kV
 Humidty Max: %95 (Non Condensing)
 Charging temperature 0°C ~ 45°C
 Operation temperature -20°C ~ 50°C
 Storage temperature -20 °C ~ 70 °C
 IP Standard IP65
 Interfaces
 Supported Interfaces Keyboard Wedge, RS-232, RS-485, USB, OEM USB, USB COM, USB HID Keyboard
 Physical Characteristics
 Color Yellow/Black
 Dimensions Cradle: 240 mm x 108 mm x 95 mm
Reader: 212 mm x 110 mm x 74 mm
 Display PM9500: No Display
PM9500D: Graphic with backlight
Font Dimensions: 6 Line x 21 Columns
Screen Dimensions: 48 x 132 pixel
 Keypad PM9500: No Keypad
PM9500D: 4 Key (Configurable)
 Weight PM9500: 380 gr
PM9500D: 400 gr
 Reading Performance
 Direct Part Marking (DPM) Capability Codes are readable when marked by laser or chemical etching or ink jet printed. Data Matrix codes are also readable when marked by dot peening
 Imager Sensor 864 x 544 Pixel
 Light Source Aiming: 630 - 680 nm VLD
Illumination: White LEDs
 Print Contrast Ratio (Min.) 15%
 Reading Angle Pitch: ±40°; Roll (Tilt): 360°; Skew (Yaw): ±40°
 Reading Indicators Beeper (Adjustable Tone and Volume), Datalogic Three Green Lights (3GL™) Good Read Feedback, Datalogic ‘Green Spot’ on the Code, Dual Good Read LEDs
 Resolution (Max.) PM9500: 1D: 0.1 mm (4 mils), 2D: 0.190 mm (7,5 mils)
PM9500-HP: 1D: 0.063 mm (2,5 mils), 2D: 0.1 mm (4 mils)
 Scanning Distances
 Scanning Distances

1D

2 mil: 2,8 cm ~ 6,3 cm
2,5 mil: 2,5 cm ~ 7,8 cm
5 mil: 1,2 cm ~ 9,0 cm
13 mil (EAN-13): 2,5 cm ~ 16,0 cm

2D

4 mil (Datamatrix): 2,6 cm ~ 5,2 cm
5 mil (Datamatrix): 2,2 cm ~ 7,2 cm
10 mil (Datamatrix): 2 cm ~ 10,5 cm
5 mil (PDF417): 1,2 cm ~ 9,0 cm
10 mil (PDF417): 1,0 cm ~ 12,5 cm
 Safety and Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
 Environmental Compliance Complies to China RoHS, Complies to EU RoHS, Complies to R.E.A.C.H.
 Laser Classification Caution Laser Radiation - Do not stare into beam, CDRH Class II, EN 60825-1 Class 2
 LED Classification IEC 62471 Class 1 LED
 Utilities
 Datalogic Aladdin™ Datalogic Aladdin configuration program is available for download at no charge
 OPOS / JavaPOS JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.
 Remote Host Download Available on request
