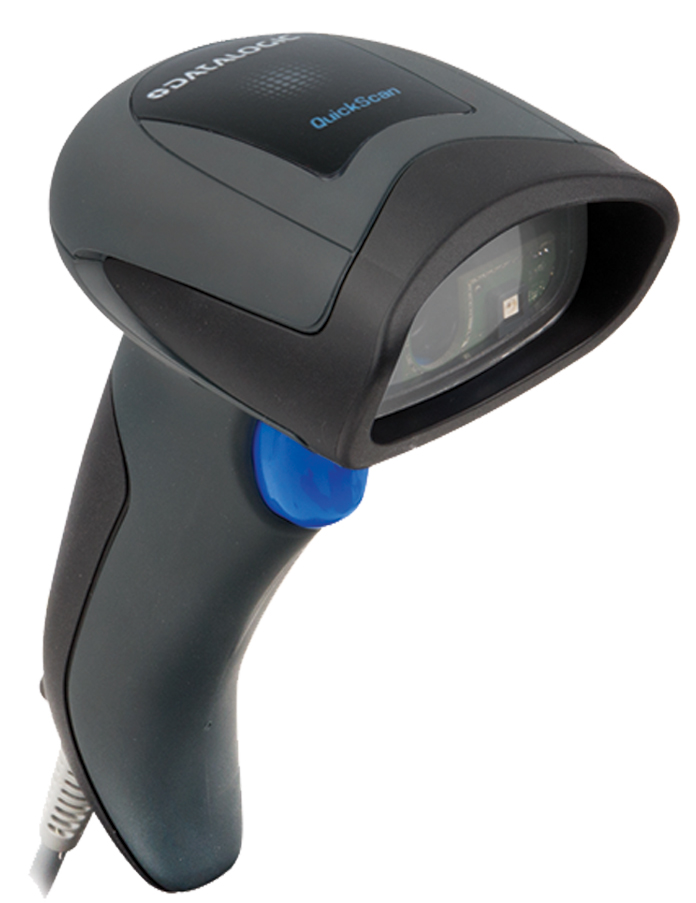

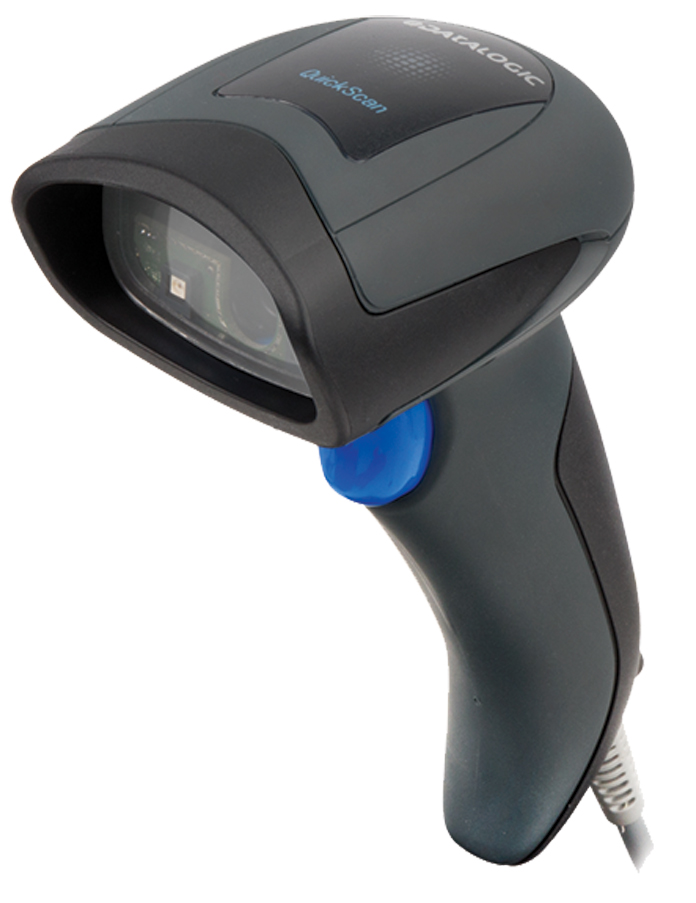

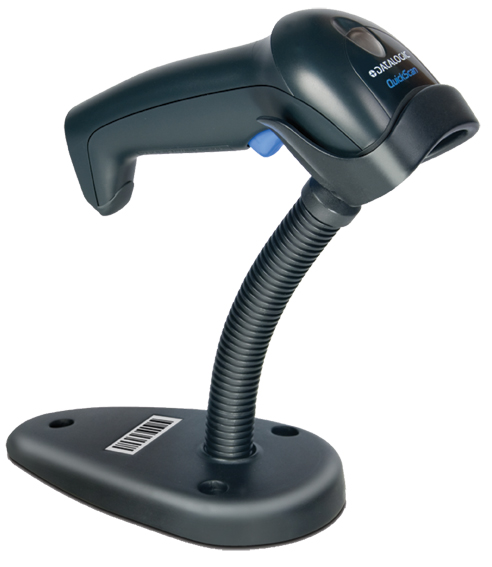

Datalogic QuickScan QD2400
2D/Imager Barcode Scanner


● 2D / Imager Barcode Reader
● Support 1D, 2D, Postal Codes And Stacked Codes
● Wide VGA (752 x 480 Pixel)
● 0,1 mm (4 mil) resolution (1D)
"Green Spot" Light For Good Read Feedback
● IP42 Standard
● Schockproof to 1,5 meters
● USB Interfaces

 Reading Performance
 Image Sensor Wide VGA (752 x 480 Piksel)
 Light source Aiming: 2 Blue LED
610-650 nm Red LED
 Motion Tolerance 25 IPS
 Print Contrast (Minimum) 25%
 Scan Angle Pitch: ± 65°; Roll (Tilt): ± 360°; Skew (Yaw): ± 60°
 Indicators (LED) Adjustable Beeper Tone , Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED; Good Transmission
 Resolution 0.102 mm / 4 mil (1D Codes)
 Interfaces Keyboard Wedge, OEM (IBM) USB, RS-232 and USB
 Height 163 mm
 Depth 91 mm
 Width 41 mm
 Weight 145 gr
 Color Black
 AC Power requirements 4.5 - 14 VDC (±%10)
 Power consumption Operation Mode: 140 mA @5VDC
Standby Mode: 50 mA @5VDC
 Light Levels 86.000 Lux (Max.)
 Operation temperature 0°C ~ 50°C
 Storage temperature -40 °C ~ 70 °C
 Humidty %5 ~ %95 (Non Condensing)
 Drop Durability 1,5 meter
 IP Standard IP42
 ESD Protection (Air Discharge) 16 kV
 Scanning Capability
 1D Linear Barcodes Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
 2D Codes Aztec Code, Aztec Mesas,DataMatrix, MaxiCode, QR Code, Micro QR Code, China Han Xin Code
 Postal Codes Australian Post, British Post, Canadian Post, ChinaPost, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, Royal Mail Code (RM4SCC)
 Stacked Codes EAN/JAN Composites; GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
 Scanning Distances
 Scanning Distances Code 39: 5 mils, 0,5  cm ~  15 cm
EAN/UPC-A: 13 mils, 0,5  cm ~  35 cm
PDF417: 6,6 mils, 1  cm ~  13 cm
DataMatrix: 10 mils, 1  cm ~  13 cm
 Safety and Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use.
 Environmental Compliance Complies to China end EU RoHS
