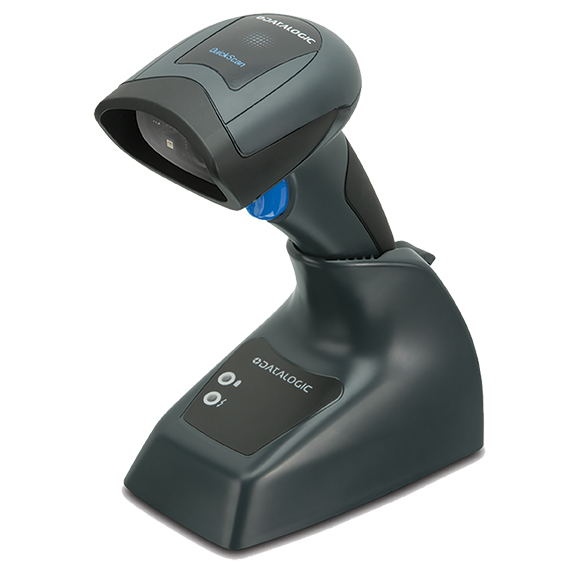

Datalogic QuickScan QM-2400
Wireless 2D Barcode Scanner



● 2D Barcode Scanner
● Datalogic STAR2.0 Cordless System™ with up to 25 m range
● Datalogic’s patented ‘Green Spot’ technology for good-read feedback
● Batch Mode capability (500+ linear codes stored in memory)
● IP42 Industrial Standard
● Schockproof to 1,8 meters
● Easy, tool-free, user-replaceable, long-lastinglithium-ion battery

 Cordless Communication
 Protocol Datalogic Star 2.0 Cordless System
 Radio Frequency 433 MHz
 Radio Range 25 m (82 ft)
 Decoding Capability
 1D Linear Barcodes Autodiscriminates all standard 1D codes including GS1 Databar™ linear codes
 2D Codes Aztec Code, Aztec Mesas, Data Matrix, MaxiCode, QR Code, Micro QR Code, China Han Xin Code
 Postal Codes Australian Post, British Post, Canadian Post, China Post, IMB, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, Royal Mail Code (RM4SCC)
 Stacked Codes EAN/JAN Composites, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites
 Electrical
 Battery Battery Type: Lithium-Ion: 1400 mAh
Charge Time: External Power: 4 Hours @ 12 VDC
Reads per Charge: 30,000 +
 Input Voltage 4.75 - 14 VDC
 Environmental
 Light Levels 0 ~ 100.000 Lux
 Operation temperature 0°C ~ 50°C
 Storage temperature -40 °C ~ 70 °C
 Humidty %5 ~ %95 (Non Condensing)
 Drop Durability 1,5 meter
 IP Standard IP42
 ESD Protection (Air Discharge) 16 kV
 Interfaces
 Interfaces Keyboard Wedge, OEM (IBM) USB, RS-232, USB
 Physical
 Height 163 mm
 Depth 91 mm
 Width 41 mm
 Weight Reader: 200 gr, Base/Charger:230 gr
 Color Black Or White
 Reading Performance
 Imager Sensor Wide VGA (752 x 480 Pixel)
 Light Source Aiming: 2 Blue LED
610-650 nm Red LED
 Motion Tolerance 25 IPS
 Print Contrast Ratio (Max.) 25%
 Scan Angle Pitch: ± 65°; Roll (Tilt): ± 360°; Skew (Yaw): ± 60°
 Reading Indicators Adjustable Beeper Tone , Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED; Good Transmission
 Resolution (Max.) 0.102 mm / 4 mils (1D Linear)
 Scanning Distances
 Scanning Distances Code 39: 5 mils, 0,5  cm ~  15 cm
EAN/UPC-A: 13 mils, 0,5  cm ~  35 cm
PDF417: 6,6 mils, 1  cm ~  13 cm
DataMatrix: 10 mils, 1  cm ~  13 cm
 Safety and Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
 Environmental Compliance Complies to China end EU RoHS
 Utilities
 Datalogic Aladdin Datalogic Aladdin configuration program is available for download at no charge
 OPOS / JavaPOS JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.
 Remote Host Download Lowers service costs and improves operations
