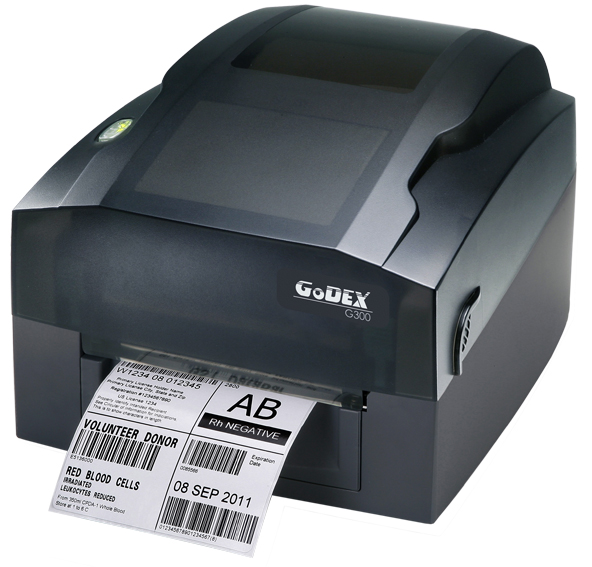

Godex G300
Entry Level Barcode Printer



● Direct Thermal And Thermal Printing
● 203 DPI Printing Resolution
● Max. 108 mm Printing Width
● Max.1727 mm Printing Length
● Max. 100 mm / Sec Printing Speed
● 8 MB DRAM and 4 MB Flash ROM
● EZPL, GEPL and GZPL Support
● RS232C, USB 2.0 and EthernetPort

 Operational
 Printing method Direct thermal and thermal transfer
 Printing resolution 203 DPI (8 dots/mm)
 Printing speed (Maximum) 100 mm/saniye
 Printing length 4 ~ 1727 mm
 Printing width 25 mm ~ 108 mm
 Memory 16 MB DRAM, 8 MB Flash ROM (4 MB User Storage)
 Proccessor 32 bit RISC micro proccessor
 Operation interface 1 button (Feed) and 3 LED (Green,Orange and Red)
 Communication interface Standart: RS232C, USB 2.0 and Ethernet
Optional: LPT and USB (As a seperately model)
 Sensor Reflective (Movable) and transmissive (Fixed And Center)
 Print directions 0, 90, 180, 270 degree
 Agency listing CE(EMC), FCC Class A, CB, CCC
 Physical
 Width 224 mm
 Height 170 mm
 Length (Depth) 226 mm
 Weight 2,5 kg
 Material ABS Plastic
 Electrical
 Power source (Input) 100V~240VAC, 50~60Hz
 Environmental
 Operation temperature 5 °C ~ 40 °C
 Storage temperature -20 °C ~ 50 °C
 Operation Humidty %30 ~ %85 (Non Condensing)
 Storage Humidty %10 ~ %90 (Non Condensing)
 Label
 Type Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label
 Width 25,4 mm ~ 118 mm
 Thickness 0.06 ~ 0.2 mm
 Roll Inside diameter 25,4, 38,1 or 76,2 mm
 Roll Outside diameter 127 mm (Maximum)
 Ribbon
 Type Wax, Wax/Resin and Resin
 Ink side Outside
 Width 30 mm ~ 110 mm
 Length 110 Meter (Maximum)
 Roll Inside diameter 12,7 mm
 Roll Outside diameter 40 mm (Maximum)
 Software
 Windows drivers Windows XP / Vista / 7 / 8 / 8.1, Windows Server 2003 / 2008 / 2012
 Linux drivers Ubuntu 9.04 & 9.10
 MAC drivers Yes
 Label Design programs Qlabel IV (Free) (for EZPL only)
 Supported barcode printing language EZPL, GEPL ve GZPL
 Supported graphics formats Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
 Resident Fonts Bitmap fonts 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Bitmap fonts 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable
 Download Fonts Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable
Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions
Scalable fonts 90°, 180°, 270° rotatable
 Code Pages CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255
Unicode (UTF8, UTF16)
 Supported Barcode Types
 1D Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC, MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 Databar
 2D PDF417, Datamatrix code, MaxiCode, QR code and Micro QR Code
 Accessories
 Optional Items External label roll holder for 10” (250 mm) O.D. label rolls
External label rewinder
 Turkish
 Data Sheets
 Users Manual  Printer Users Manual
 English
 Data Sheets
 Users Manual  Printer Users Manual
 Users Manual  QLabel-IV Users Manual
 QLabel-IV  Label Design and Printing Software
 Bartender  Label Design and Printing Software (Trial Version)
 Windows Driver  Windows XP, Vista, 7, Server 2003, Server 2008, Server 2008R2 (32 Bit & 64 Bit)
 Linux Driver  For Ubuntu 9.04 ve 9.10
 Control Center  Setting Software for Ethernet and WLAN
 S.D.K  Software Developement Kit
