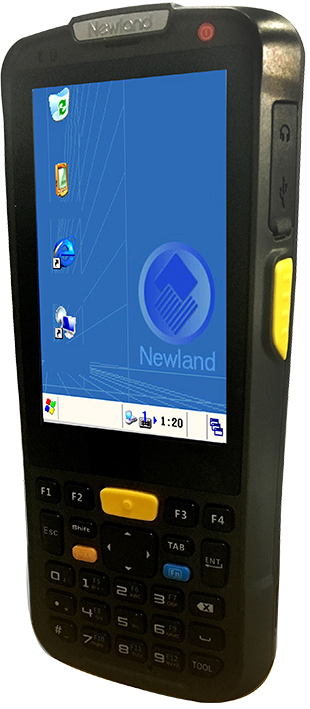

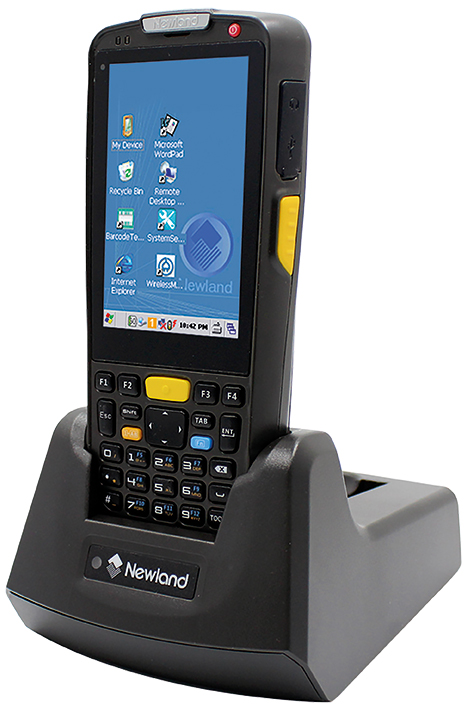

Newland PT60
Windows Ce.Net Mobile Computer



● Windows CE.NET 6.0 operation systems
● Marvell CPU PAX310 806 Mhz proccessor
● 256 MB RAM, 4 GB ROM
● 3,7 Inch With Backlight Color Touch Screen
● Ergonomic, compact, robust and lightweigt
Bluetooth and Wifi technology
● 1.2 mt (4 ft) drop resistance
● IP54 protection class
Free Data Collection Software

 System
 CPU Marvel XScale PXA310,806 Mhz Micro Proccessor
 RAM 256 MB
 Flash ROM 128 MB +(4 GB)
 Operation Systems Microsoft Windows CE .NET 6.0 Professional
 Indicator Vibrator, Multi Color LED and Speaker
 Expansion MicroSD card slot
 Interface Micro USB 2.0, supports USB charging
 Display
 Type QVGA with backlight TFT Touch screen LCD
 Size 3,7"
 Resolution 480 x 800 pixel
 Keypad
 Type Numeric
 Key Quantity 33
 Communication
 USB Micro USB 2.0 (supports USB charging)
 Wifi 802.11 b/g/n, security support EAP, WEP, WPA, WPA2, 802.1X
 Bluetooth Bluetooth Class II V2.0
 Power
 Power supply Input: AC 100~240V, 50~60Hz
Output:DC 5V, ≥ 1.5A
 Main Battery 3,7V 3800 mAh Rechargeable Li-Polymer Battery
 Backup Battery 3,7V 1500 mAh Rechargeable Li-Polymer Battery (supports50-hour data backup)
 Battery Charge Time 3,5 hours (charge via AC adapter)
 Battery Life Max: 10 hours (With 1 Scan Per Second)
 Physical
 Length 166 mm
 Width 73 mm
 Height 26 mm
 Weight 303 gr (batteries included)
 Environmental
 Operation temperature -10 °C ~ 50 °C
 Storage temperature -20 °C ~ 60 °C
 Humidty %5 ~ %95 (Non Condensing)
 Drop test 1,2 meters to concrete
 Sealed standard IP54
 ESD ±8 kV contact discharge; ±15 kV air discharge
 Certifications FCC Part15 Class B, CE EMC Class B, CCC
 Supported Barcode Types
 Supported barcode 1D: Code128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,Codabar, Interleaved 2 of 5, Code 93, ISBN, ISSN
2D: PDF417, QR Code, Data Matrix, Maxicode, Aztec
Turkish
 Data Sheets
 ActiveSync 4.5 Synchronization software (For Windows XP)
 Mobile Device Center  (32 Bit) Synchronization software (For Windows VISTA /7 / 8/ 8.1 / 10)
 Mobile Device Center  (64 Bit) Synchronization software (For Windows VISTA /7 / 8/ 8.1 / 10)
 İngilizce
 Data Sheets
 User Manual
 ActiveSync 4.5 Synchronization software (Windows XP)
 Mobile Device Center (32 Bit) Synchronization software (For Windows VISTA /7 / 8/ 8.1 / 10)
 Mobile Device Center (64 Bit) Synchronization software (For Windows VISTA /7 / 8/ 8.1 / 10)
 PowerToys Remote Managment Software
