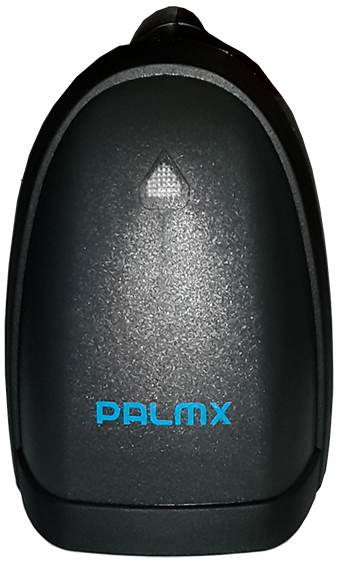

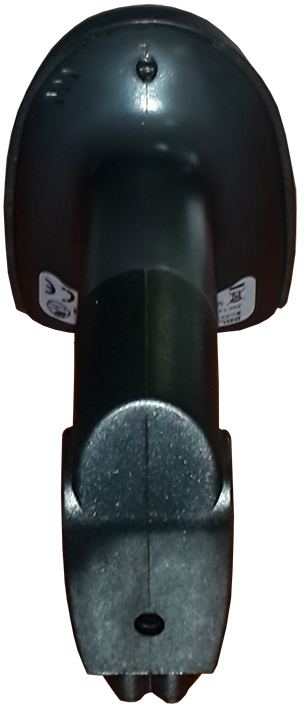

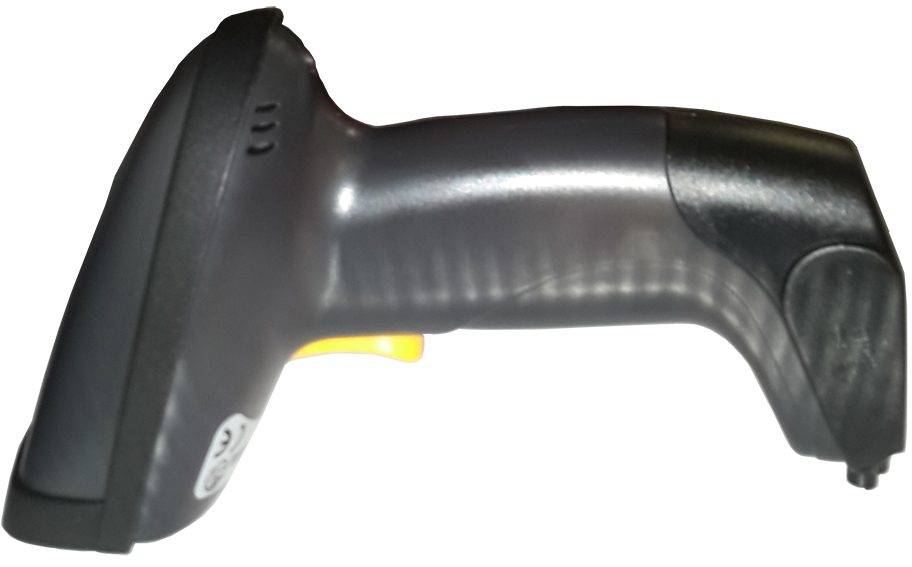

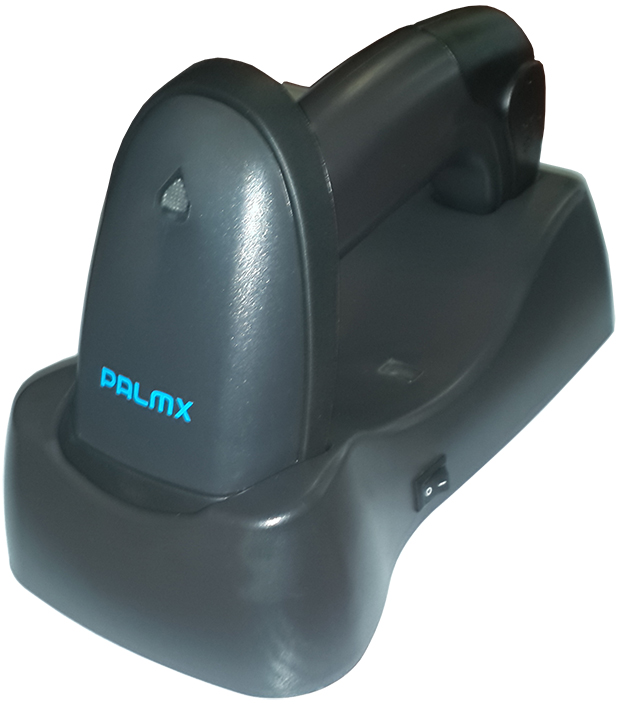

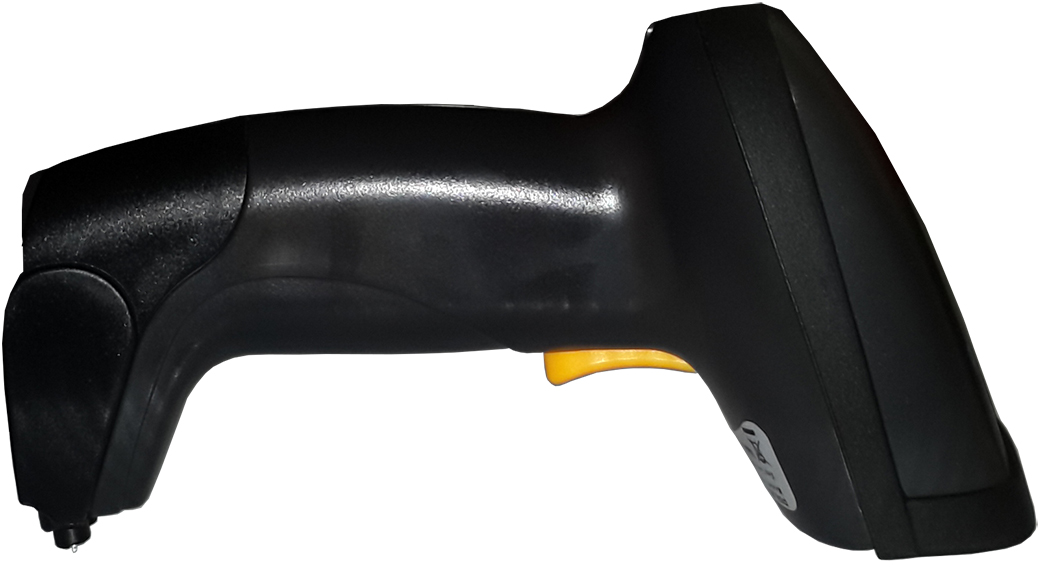

Palmx SC-830W
1D Wireless Barcode Scanner



● 1D Single Line Laser Barcode Scanner
● Wifi (433 Mhz) Communication
● Operate with a 300-meter data transmission range
● 200 scans per second
● 0.102 mm (4 Mil) resolution
● 0 ~ 550 mm scanning distance
● USB Interface

 Operational
 Light source  650 nm Visible Laser Diod (VLD)
 Number of Scan line Single Line
 Supported Barcode Types 1D Linear
 Scan Distance 0 - 550 mm
 Minimum Bar Width 0.102 mm (4 Mil)
 Scan Rate 200 Scans Per Second
 Revolve Angle ±70° (Left-Right), ±70° (Top-Down)
 Indicators (LED)  Beep and LED
 Symbol Contrast  Min: %30
 Communication
 Communication Method Wifi
 Radio Frequence 433 Mhz (ISM Band)
 Transmission range 300 metre (Max. Open Space)
 Supported Interfaces USB
 Memory 4 MB
 Memory Capacity Max. 260.000 EAN-13 Barcode
 Pairing ability Max. 70 Scanner
 Physical
 Height 138 mm
 Length 227 mm
 Width 107 mm
 Weight 415 Gram
 Material ABS Plastic
 Cables 2 Meter
 Color Black
 Electrical
 Input Voltage DC 5V ±5%
 Power Source (Cradle) USB from host system
 Battery (Scanner) 3.7V, 1000 mAH Polymer Li-Ion
 Battery Working Period Operation : Max. 20 Hours
Stand By : Max. 3 Days
 Operating Current Standby : 30 mA
Operation : 65 mA
Peak : 135 mA
 Environmental
 Operation temperature -20°C ~ 60°C
 Storage temperature -30 °C ~ 90 °C
 Humidty %5 ~ %95 (Non Condensing)
 IP Standard IP54
 ESD Protection (Air Discharge) 15KV
 Decode Capabilities
 Barcode Types UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code39, CODABAR,Interleaved 2 of 5, Industrial 2 of 5, Chinese 2 of 5,Code128, Code93,Code11 MSI/PIESSEY, UK/PLESSEY,UCC/EAN128, China Postage
