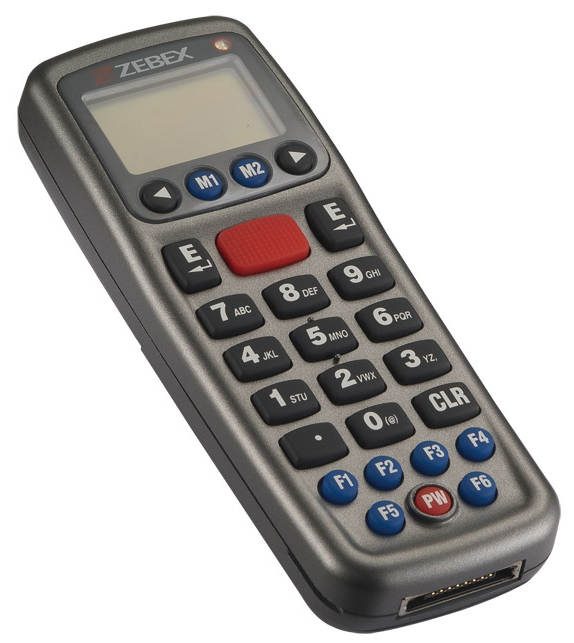

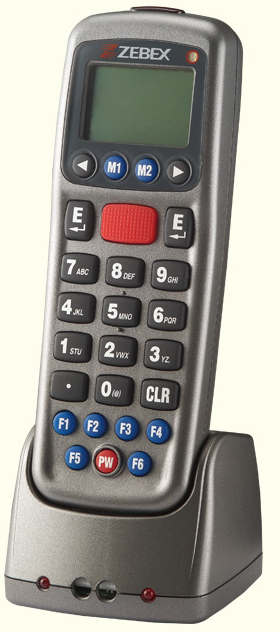

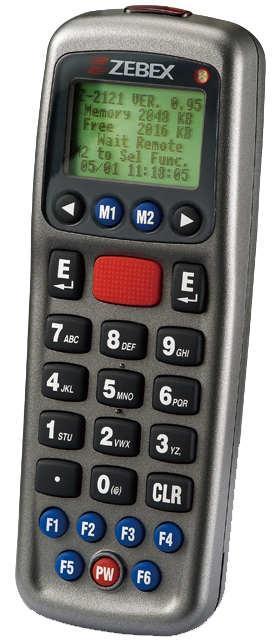

Zebex Z-2121
Data Collector



● 1D Laser Barcode Scanner

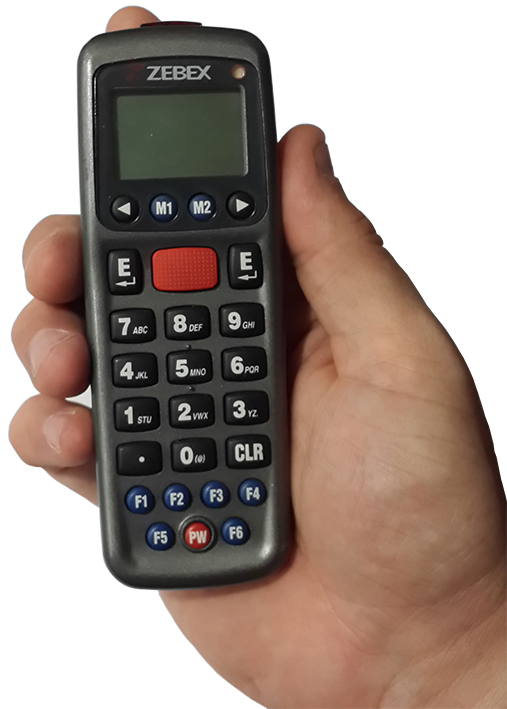

● Convenient, one-handed operation
● Ergonomic, modern cellular phone styling
● Built-in 96-character LCD
● 2 MB internal memory
● Extended battery life enables over 100 hours of scanning
● Programmable features
● 125 gr weight

 System
 CPU 32-bit C-MOS microprocessor
 RAM 2 MB
 Serial Flash ROM 8 MB
 Display (LCD) FSTN, 96×49 dots graphic backlight LCD (6×16 characters)
 Keypads Total 26-key for alpha/numeric input and system control
 Indicators (LED) Two-color LED (green & red)
 Beepers Operations Programmable tone & beep time
 Communication interface IRDA, RS-232C or USB-RS232C
 Scanner
 Engine Type 1D Laser Scanner
 Ligth source 650 nm visible laser diode (VLD)
 Scan Rate 100 scans/second
 Print Contrast 30% @ UPC/EAN 100%
 Depth of Field 20 -500 mm
 Physical
 Length 134,9 mm
 Width 23,6 mm
 Height 48 mm
 Weight 125 gr (batteries included)
 Power
 Main Battery 3.7V, 830 mAH, Li-Ion rechargeable battery
 Backup Battery 3.0V, 25 mAH, Li-Ion rechargeable battery
 Battery Life 100 hours at 12 scans per minute
 EMC CE & FCC Part 15B, 15C
 Environmental
 Operation temperature 0 °C ~ 50 °C
 Storage temperature -10 °C ~ 60 °C
 Operation Humidty %10 ~ %70 (Non Condensing)
 Storage Humidty %5 ~ %70 (Non Condensing)
 Drop Durability Designed to withstand 1 m drops
 Software
 Software a) Built-in free task
b) Support the TaskGen software
c) Application generator and SDK support
