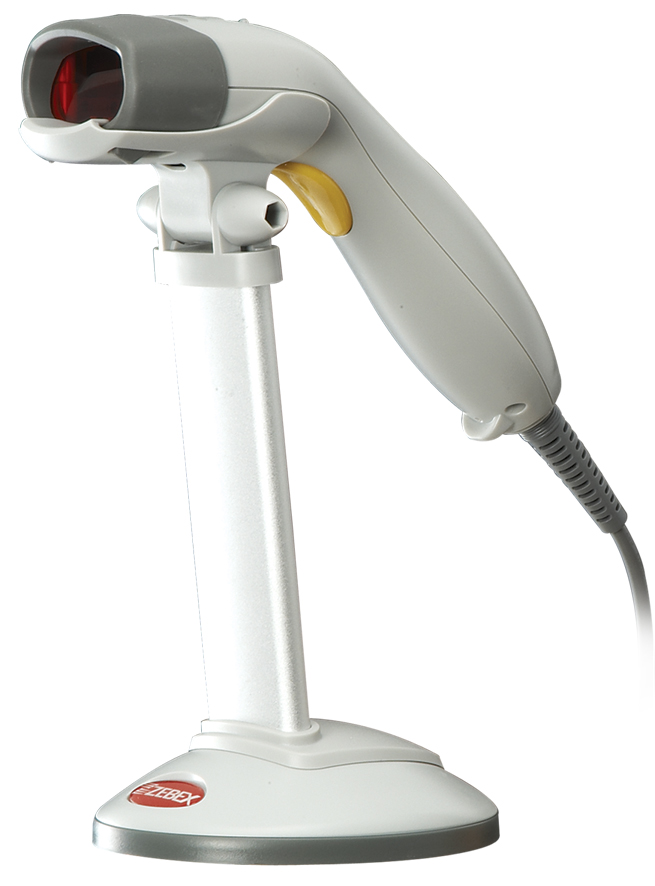

● 1D Single Line Laser barcode
scanner
● Light weight, ergonomic design
● Handsfree uses
● 32 Bit Microprocessor
● 500 scan per second
● 0,127 mm (5 mil) resolution
● 35 ~ 220 mm scanning distance
● USB, PS/2, RS-232C and WAND interface options
Operational | |
Light source | 650 nm visible laser diode (VLD) |
Scan Pattern | Single Line |
Microproccessor | 32 Bit |
Depth of field | 35 – 200 mm (UPC/EAN 100%, PCS=90%) |
Scan Rate | 500 scans/sec |
Scan Angle | 52° |
Pitch/Roll/Skew Angle | 65° / 30° / 65° |
Minimum Bar Width | 0.125 mm (5 mil) (Code 39, PCS=90%) |
Print Contrast | 30% @ UPC/EAN 100% |
Indicators (LED) | Three-color LED (green, red & blue) |
Beeper Operation | Programmable tone & beep time |
System Interfaces | Keyboard, RS-232C, HID USB,Wand |
Physical | |
Height | 155.0 mm |
Depth | 106.7 mm |
Width | 58.0 mm |
Weight | 148 g (Stand Excluded) |
Cable | Standard 2 meter straight |
Material | ABS Plastic |
Electrical | |
Input Voltage | 5 VDC ±10% |
Operating Current | 200 mA |
Laser Class | CDRH Class IIa; IEC 60825-1: Class 1 |
EMC | CE & FCC DOC compliance, VCCI, BSMI |
Environmental | |
Operation temperature | 0°C ~ 40°C |
Storage temperature | -20 °C ~ 60 °C |
Humidty | %5 ~ %95 (Non Condensing) |
Light Levels | Max. 4.500 Lux (fluorescence) |
Drop Durability | Designed to with stand 1 m drops |
Supported Barcode Types | |
Standart | UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8 & JAN 13, ISBN/ISSN, Japanese Bookland EAN, Code 39, Code 39 with full ASCII, trioptic Code 39, Codabar (NM7), Code 128, Code 128 with full ASCII, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32 |
Optional | Industrial 2 of 5, Standard 2 of 5, Discrete 2 of 5, Matrix 2 of 5, Code 11, UPC/EAN RSS, RSS variants |
