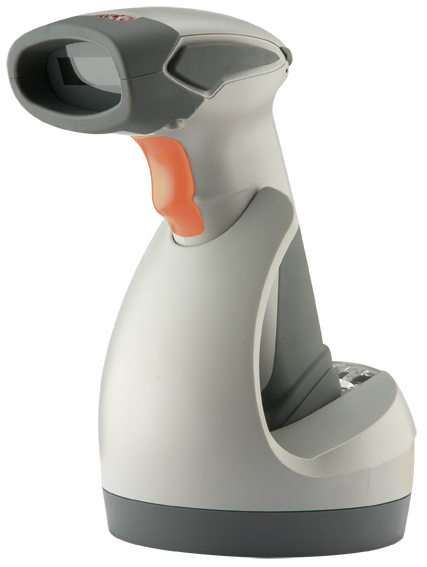

Zebex Z-3191BT
Wireless 1D Barcode Scanner



● 1D Laser Barcode Scanner
● Wireless (Via Bluetooth) Communication
● Proprietary Ultrascan decoding technologies
● 10 ~ 410 mm scanning distance
● GS1 DataBar decoding capability
● Strong gun type design
● Smart battery charging design
● Flexible communication options
● Support the Windows, BlackBery, Mac, Android and iPad

 Operational
 Light source 650 nm visible laser diode (VLD)
 Optical System Linear Laser
 Image Sensor Photo Diod
 Depth of field 15 – 260 mm (UPC/EAN 100%, PCS=90%)
 Scan Angle 47°
 Scan Rate 100 scan/sec
 Pitch/Roll/Skew Angle ±65° / ±35° / ±50°
 Minimum Bar Width 0.1 mm (4 mil) (Code 39, PCS 90%)
 Print Contrast 25% @UPC/EAN 100%
 Indicators (LED) Beep volume and LED (Optional: Vibrator)
 Beeper Operation Programmable tone & beep time
 System Interfaces Keyboard, RS-232C, USB-HID, USB Virtual COM,Wand, Opos and Jpos
 Radio Communication
 Radio Frequency 2.4 - 2.48 Ghz (ISM Band)
 Protocol Cradle Host, SPP Master, HID, Slave
 Working Range Max. 75~100 meter (depends on operating environment)
 Physical
 Scanner Dimensions Height:147 mm, Width:62 mm, Depth:114,5 mm
 Cradle Dimensions Height:176,4 mm, Width:101,6 mm, Depth:133,6 mm
 Scanner Weight 210 gr
 Cradle Weight 500 gr
 Cable Field replaceable, 3 meter (Straight)
 Electrical
 Input Voltage 5 VDC ±10%
 Battery 3,7V, 2500 mAH Li-Ion Pil
 Operating Current Charging: 700 mA (external power); Non-charging: 70 mA
 Recharging Time 4,5 hours (Via Cradle)
6 hours (Via USB Cable)
 Battery Life Over 150.000 Scans (at 1 scan per second per full charge)
40 hours (per full charge)
 Environmental
 Operation temperature 0 °C ~ 50 °C
 Storage temperature -20 °C ~ 60 °C
 Humidty %5 ~ %95 (Non Condensing)
 Light Levels Max 100.500 Lux (fluorescence)
 Drop Durability 1,5 meter
 IP Standard IP41
 Regulatory
 EMC CE & FCC DOC Compliance , VCCI, BSMI
 Laser Class CDRH Class IIa, IEC 60825-1, Class 2
 Radio FCC Part 15C, CE EN 300 328, ARIB STD-T66 (Japan), NCC (Taiwan)
 Supported Barcode Types
 Standart UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF, Addendum, 2 of 5, IATA Code, MSI/Plessey, China Postal Code, Code 32, Industrial 2 of 5, Standart 2 of 5, DTF, JAP, Code 11, RSS14, RSS Limited, RSS Expanded, Telepen
