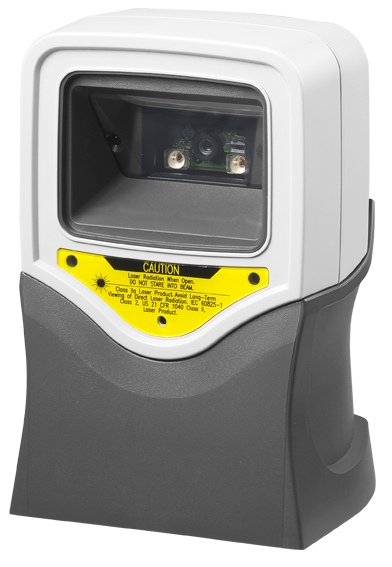

Zebex Z-6112
2D/Imager Barcode Scanner



● 1D/2D Barcodes support
● Powerful image sensor yields advanced scanning performance

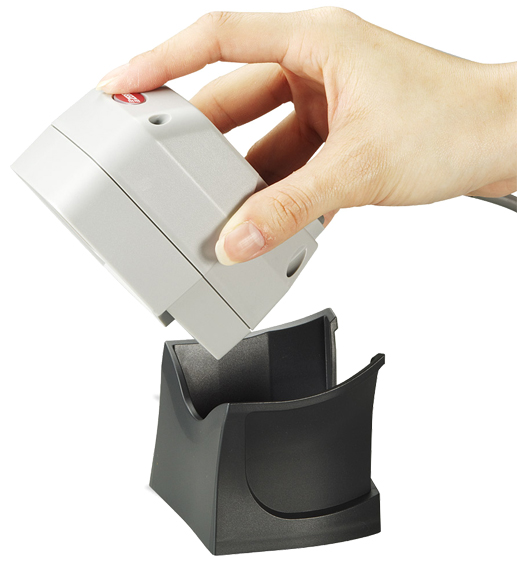

● Compact module designed for all kinds of niche applications
USB Interface

 Operational
 Aiming Element 650 nm Visible Laser Diyod (VLD)
 Illumication Element 625±5 nm visible LED
 Optical System 752×480 pixels (Wide VGA)
 Field of View 39,6° (horizontal); 25,7° (vertical)
 Focusing Distance 20,3 cm (8 Inch)
 Rotational Sensitivity 360° (omnidirectional rotational sensitivity)
 Resolution 4 mil (PDF417), 5 mil (Code 39)
 Print Contrast 30% @ UPC/EAN 100%
 Indicators (LED) Two color LED (green and red)
 Programmable Operation Power mode, beeper tone, focus control, image control & trigger mode
 Image File Format BMP (*.bmp), TIFF (*.tif), JPEG (*.jpg)
 System Interfaces RS-232C, USB 1.1
 Physical
 Height 110.9 mm
 Depth 65.8 mm
 Width 70 mm
 Weight 200 gr (Stand Excluded)
 Cable Standard 2 meter straight
 Material ABS Plastic
 Electrical
 Input Voltage 5 VDC ±5%
 Operating Current 280 mA
 Power Consumption 1,4 Watts
 EMC CE & FCC DOC compliance, BSMI
 Environmental
 Operation temperature 0 °C ~ 40°C
 Storage temperature -20 °C ~ 60 °C
 Humidity %5 ~ %95 (Non Condensing)
 Light Levels Max. 4.500 Lux (fluorescence)
 Drop Durability Designed to with stand 1,5 m drops
 Supported Barcode Types
 1D Barcodes UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8 & JAN 13,ISBN/ISSN, Code 39, Code 39 with full ASCII, trioptic Code 39,Codabar (NM7), Code 128, Code 128 with full ASCII, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, MSI/Plessy, China Postal Code, UPC/EAN RSS, RSS types
 2D Barcodes PDF 417, MicroPDF 417, MaxiCode, DataMatrix (ECC 200), QR Code, Aztec Code, Postal Code, Composite Codes, Micro QR Code
 Optional Japanese Bookland EAN, IATA Code, Code 32, Industrial 2 of 5, standard 2 of 5, Discrete 2 of 5, Matrix 2 of 5, Code 11
