Windows
CE.NET 6.0
operation
systems
-
Marvell CPU
PAX310 806 Mhz proccessor
-
256 MB RAM,
256 MB ROM
-
Low Power
Transflective
TFT 24 bits
color LCD,
240x320 with
touch screen
-
Ergonomic,
compact,
robust and
lightweigt
-
Bluetooth
and
802.11b/g
technology
-

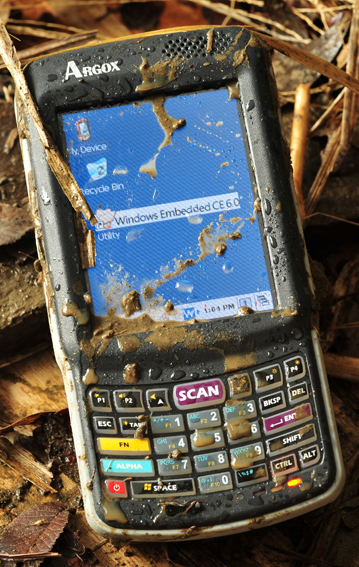

1.8 mt
(6 ft)
drop
resistance
-
IP65
protection
class
|
|
Features |
|
System |
|
CPU |
Marvell CPU PAX310 806
Mhz |
|
RAM |
256 MB |
|
Flash ROM |
256
MB |
|
Operation Systems |
Microsoft Windows CE .NET 6.0
Professional |
|
Display |
|
Type |
Low Power Transflective TFT
24bits color LCD with touch
panel |
|
Size |
3,5" |
|
Resolution |
240 x 320 pixel |
|
Physical |
|
Length |
159
mm |
|
Width |
80,8 mm |
|
Height |
36 mm |
|
Weight |
380 gr (batteries
included) |
|
Keys |
29 Keys (Optional 44 Keys) |
|
Alert |
Speaker, Vibrator |
|
LED |
Blue, Green and Red |
|
Expansion
Slot |
Micro SD Card (for disk memory) |
|
Drop test |
1.8 meters to concrete (Handset)
, 0.9 meters to concrete
(Cradle) |
|
Sealed standard |
IP65 |
|
EMC |
- |
|
Communication |
|
Wired
communication |
RS-232C or USB |
|
Wireless
communication |
Bluetooth or WLAN |
|
Scanner |
|
Scanner
system |
Standart: Laser scan engine
Optional: Area Imager |
|
Scanning rate |
100 scan/sec |
|
Depth of field |
70 mm - 95
mm (5.2 mil) |
|
57 mm - 171
mm (7,5 mil) |
|
50 mm - 210
mm (10,4 mil) |
|
50 mm - 254
mm (13 mil) |
|
75
mm - 300 mm (19,5 mil) |
|
Supported barcode |
1D: Supported all
popular linear barcodes
included GS1 databar,
Code 39, Code 93,
Codabar, Code 128, UPC
A, UPC E, Interleaved
2/5,Matrix 2/5, MSI/Plessey,
UK/Plessey, Telepen,
UPCA,UPCE, Code
11,EAN-8,EAN-13,Industrial
2/5
2D (Optional) :Data
Matrix, Maxicode, QR
code OCR- fonts included
OCR-A and OCR-B |
|
Power |
|

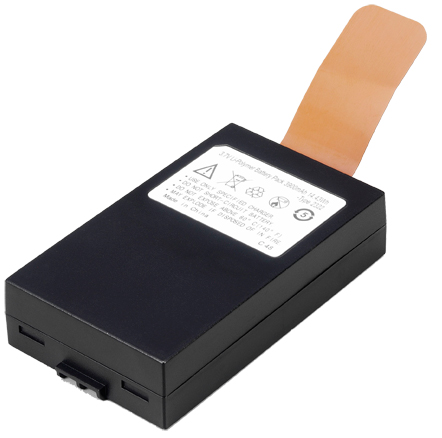

Main Battery |
Standart: 3.7V 3900 mAh
Rechargeable Li-Polymer Battery |
|
Optional: 3.7V 4400 mAh
Rechargeable Li-Ion Battery |
|
Battery
Life |
Standart Battery: |
|
Optional Battery: |
|

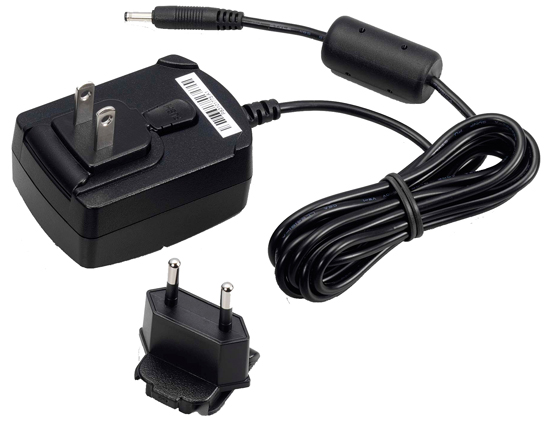

Power
supply |
DC 5V,5A, 100-240V 0,5A,50-60
HZ, 33-48VA |
|
Electrostatic
discharge |
+/-15kVDC
Air discharge
+/- 8kVDC Direct
discharge (contact)
+/- 8kVDC Indirect
discharge (H & V) |
|
Environmental |
|
Operation
temperature |
-10 °C ~
60 °C |
|
Storage
temperature |
-20 °C ~
70 °C |
|
Operation Humidty |
%10 ~ %90
(Non Condensing) |
|
Storage Humidty |
%5 ~ %95
(Non Condensing) |
|
Software |
|
Software |
Embedded Visual C++ 4.0 |
|
Visual Studio. NET |
|
Visual Studio 2005 |
|
Windows CE SDK |
|
Scanner Configuration
Utility |
|
Accessories |
|
Accessories |

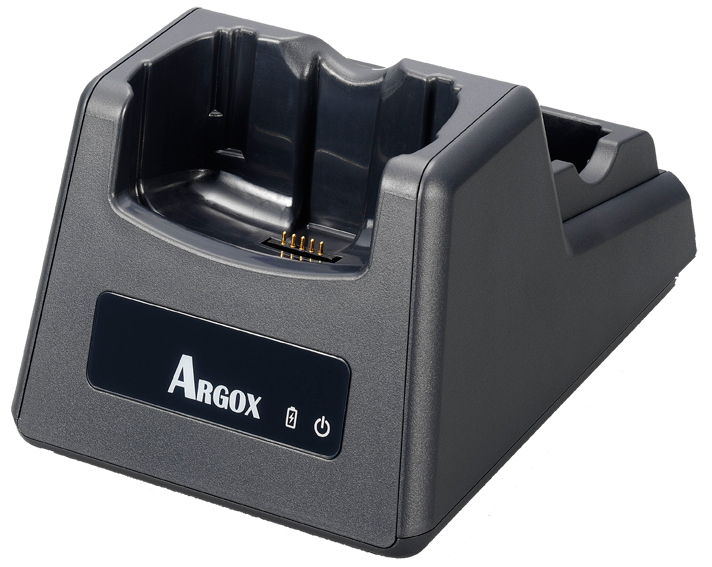

Charging & Communication Cradle |
|
Pistol Grip |
|

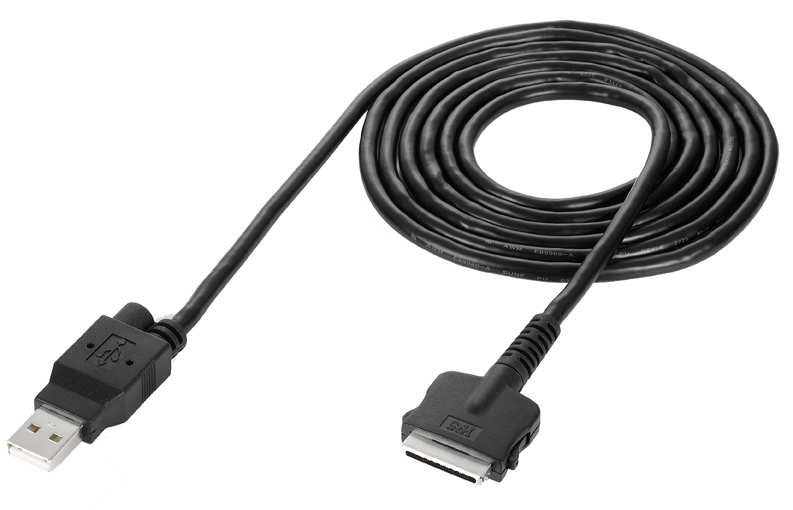

Charging cable |
|
Four slot charging
cradle |
|
|
|
