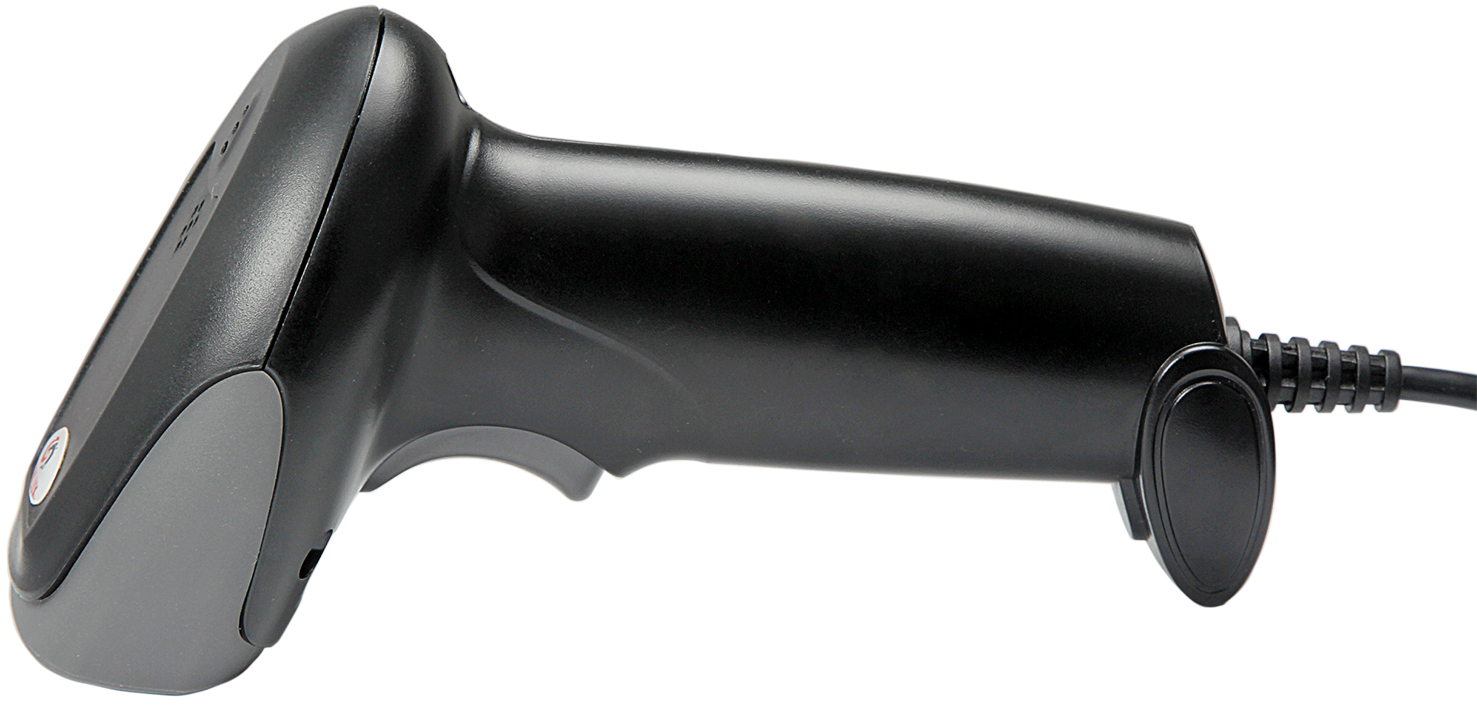

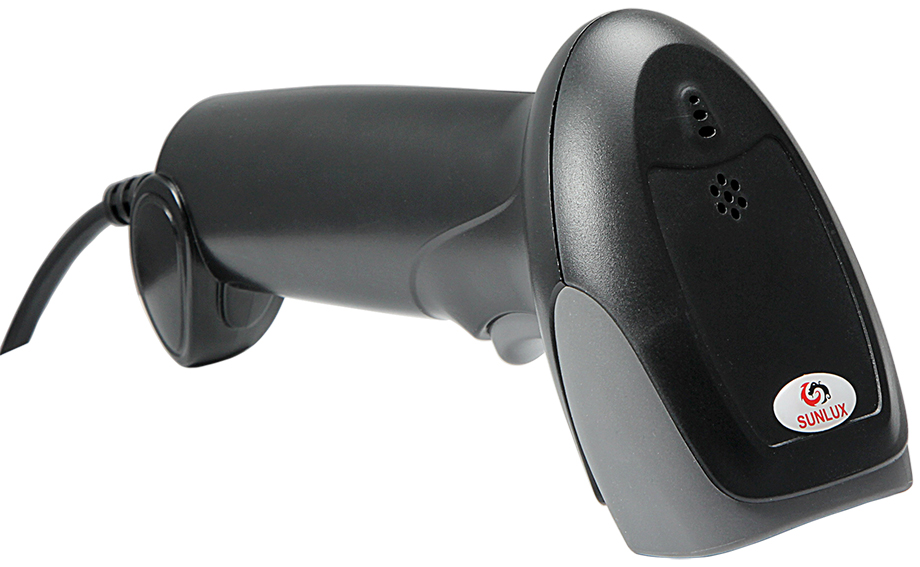

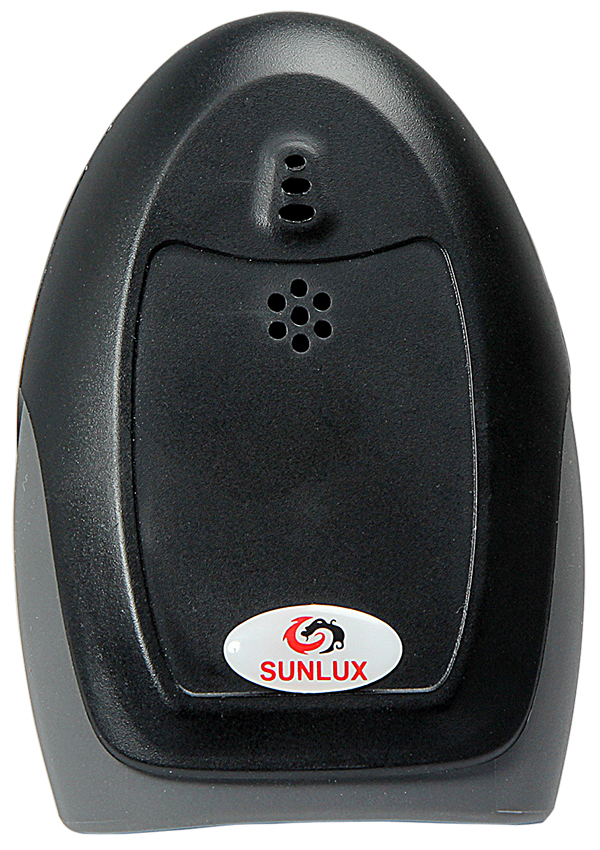

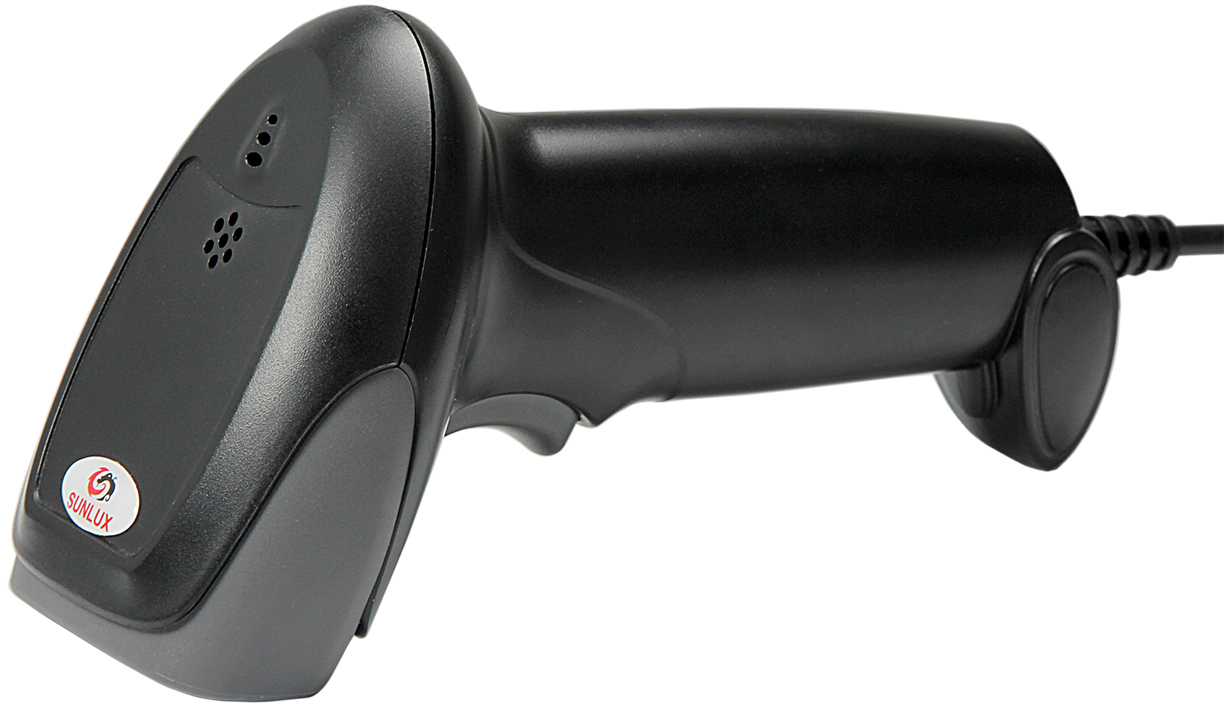

Sunlux XL-3602
2D Barcode Scanner



● Corded 2D Imager Scanner
● Light weight, ergonomic design
● 640 X 480 Pixel CMOS Sensor
● 1D:(4 mil) Resolution
● 50 ~ 220 mm scanning distance
● Scanning From Display
● USB Interface

Performans
 Image Sensor  CMOS
 Resolution  640 X 480 Pixel
 Light Source  Marking: Red LED, Lighting: White LED
 Resolution  1D= Min: 4 Mil
 Scanning Distances  40 - 220 mm (0,33 mm pcs 0.9, EAN13)
 Rotational Sensitivity  Rotation: 360° tilt: ±50° deflection: ±50°
 Field of view angle   Horizontal 36° , Vertical 23°
 Print Contrast (Minimum)  Min: %25
 Indicators (LED)  Beeper and LED
 Scanning Mod  Manual and Continous
 Supported Interfaces  USB, RS232 and USB-VCP
 Physical
 Height 86 mm
 Length 175 mm
 Width 71 mm
 Weight 245 gr
 Case Material ABS + PC
 Cable Standart 2 Meter Straight
 Electrical
 Voltage DC 5V
 Current Operation Mode: 230 mA
Stand by Mode: 150 mA
 Environmental
 Operation temperature -10°C ~ 55°C
 Storage temperature -20°C ~ 60°C
 Humidty %5 ~ %95 (Non Condensing)
 Light Levels 0 ~ 100.000 Lux
 Drop Test 1,5 Meter
 Certification EC (EMC) Class B, Rohs
 Decoding Capability
 1D Barcodes UPC-A, UPC-E, EAN-8, EAN-13, Code 128, Code 39, Code 93, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA25), Codabar(NW-7)
 2D Barcodes QR Code, Micro QR Code, Data Matrix, PDF417
