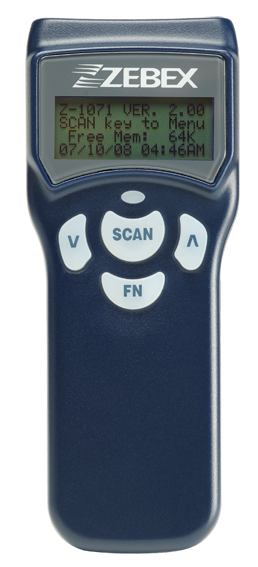

Zebex Z-1170 Mini Data Collector
|
|
 |
Document / Software / Driver |
Applications |
|
Turkish |
English |
Counting |
|
Brochure |
Brochure |
Personnel Monitoring |
|
|
Buyer's Guide |
Shipment tracking |
|
|
User's Manual |
|
|
|
WintaskGen 3.42 |
|
|
|
SDK |
|
|
|
Windows Driver |
|
|
|
|
|
|
|
|
|
Other products in category |
|
 |
 |
 |
Zebex Z-1060 |
Zebex Z-1170 BT (V1) |
Zebex Z-1170 BT (V2) |
|
|
Zebex Z-2121 |
|
|
|
| |
-
Ultra small,
ultra portable form factor
-
Built-in 64-character
LCD
-
With
CCD Barcode Scanner
-
4000 pcs EAN-13 barcode capacity
-
Programmable features
-
93 gr weight
-
Automatic time-stamp
functionality
-
PC based task
generator for customize applications
|
|
Features |
|
System |
|
CPU |
32 Bit C-MOS
microprocessor |
|
RAM |
64 KB non-volatile memory |
|
F-ROM |
128 KB |
|
Display (LCD) |
FSTN, 96×32 dots graphic
LCD (4×16 characters) |
|
Keypads |
4 Keys (SCAN, UP, DOWN & FN) |
|
Indicators (LED) |
Two-color LED (green &
red) |
|
Beepers Operations |
Programmable tone
& beep time |
|
Communication
interface |
RS-232C,
USB-RS232C or USB-HID |
|
Scanner |
|
Engine Type |
1D
CCD Scanner |
|
Ligth source |
617 nm visible
LED |
|
Scan Rate |
330 scans/second |
|
Print Contrast
|
30% @ UPC/EAN 100% |
|
Depth of Field |
0 -300 mm |
|
Physical |
|
Length |
110.7
mm |
|
Width |
44.5 mm |
|
Height |
25.1 mm |
|
Weight |
Approx
93 gr (batteries
included) |
|
Power |
|
Main Battery |
3
pcs Ni-MH
900 mAH rechargeable
batteries |
|
Battery Life |
100 hours at 12 scans per minute |
|
EMC |
CE & FCC Part 15B, 15C |
|
Environmental |
|
Operation
temperature |
0 °C ~ 50 °C |
|
Storage
temperature |
-10 °C ~
60 °C |
|
Operation Humidty |
%10 ~ %70
(Non Condensing) |
|
Storage Humidty |
%5 ~ %70
(Non Condensing) |
|
Drop Durability |
Designed to withstand 1 m drops |
|
Software |
|
Software |
a)
Built-in free task |
|
b)
Support the TaskGen
software |
|
c) Application generator
and SDK support |
|
|
|
Bilkur is
the Turkey distributor of Argox, Bitatek, Godex,
Unitech and
Zebex barcode products. |
|
|
|
