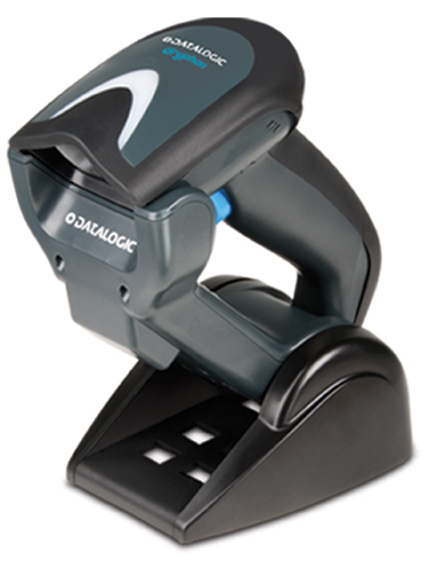

Datalogic Gryphon GM4400
Wireless 2D Barcode Scanner



● 2D Wireless Barcode Scanner
● Datalogic STAR Cordless System™ (Wifi) with up to 30 m (98 ft) range
● Omnidirectional reading
● Datalogic’s patented ‘Green Spot’ for good-read feedback plus the 4-dot Aimer
● Two-position cradle with Scan-While Charging capability
● Batch Mode capability: +1200 codes stored in memory
● User-replaceable, long lasting LithiumIon battery with up to 60,000 scans per charge
● Drop resistance to 1.8 m / 5.9 ft

 Cordless Communications
Datalogic Star Cordless System™ Effective Radiated Power: 433.92 MHz: < 10 mW; 910 MHz: < 1 mW
Multi-Point Configuration: Max. Readers per Radio Receiver: 16
Point-to-Point Configuration; Radio Frequency: 433.92
MHz; 910 MHz; Two Way Communications
 Decoding Capability
 1D Linear Codes Autodiscriminates all standard 1D codes including GS1  DataBar™ linear codes.
 2D Codes Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; QR Code
 Postal Codes Australian Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
 Stacked Codes eAn/JAn Composites; GS1 DataBar Composites; GS1 DataBar expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417;
PDF417; UPC A/e Composites
 Electrical
 Battery Battery Type: Lithium-Ion: 2100 mAh
Charge Time: external Power: 4 Hours @ 12 VDC;
Reads per Charge: 60,000
 Cradle Indicators Battery Charging (Red); Charge Completed (Green); Power/ Data (yellow)
 Current Charging (Typical): < 8 W; Standby/Idle (Typical): < 2.5 mA @ 5 VDC
 Input Voltage 4.75 - 14 VDC ±5%
 Environmental
 Ambient Light 0~100.000 Lux
 Drop Resistance Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface
 ESD Protection (Air Discharge) 16 kV
 Humidity 0 ~ %95 (Non Condensing)
 Particulete and Water Sealing IP52
 Temperature Operating: 0 to 50 °C / 32 to 122 °F;
Storage/Transport-20 to 70 °C / -4 to 158 °F
 Interfaces
 Interfaces RS-232 / IBM 46XX / USB Multi-Interface;
RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
 Physical Characteristics
 Color Available Black, White
 Dimensions Cradle: 18.6 x 9.9 x 5.6 cm / 7.25 x 3.9 x 2.2 in
Reader: 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Weight Cradle: 246.0 g / 8.7 oz; Reader: 245.0 g / 8.6 oz
 Reading Performance
 Image Sensor Wide VGA: 752 x 480 pixel
 Light Source Aiming: 650 nm VLD
 Motion Tolerance 25 IPS
 Print Contrast Ratio (Max.) 25%
 Reading Angle Pitch: +/- 40°; Roll (Tilt): 360°; Skew (Yaw): +/- 40°
 Reading Indicators Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read Led
 Resolution (Max.) 1D Linear: 0.102 mm / 4 mils;
Data Matrix: 0.178 mm / 7 mils
PDF417: 0.127 mm / 5 mils
 Reading Ranges
 Typical Depth of Field Minimum distance determined by symbol length and scan angle.
Printing resolution, contrast, and ambient light dependent.
Code 39: 5 mils: 4.0 to 19.0 cm / 1.6 to 7.5 in
Code 39: 10 mils: 1.0 to 30.0 cm / 0.4 to 11.8 in
Data Matrix: 10 mils: 2.0 to 16.0 cm / 0.8 to 6.3 in
Data Matrix: 15 mils: 0 to 23.6 cm / 0 to 9.3 in
EAN-13: 13 mils: 1.5 to 40.0 cm / 0.6 to 15.7 in
PDF417: 10 mils: 0.5 to 22.0 cm / 0.2 to 8.6 in
QR Code: 10 mils: 3.0 to 12.5 cm / 1.2 to 4.9 in
 Safety & Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
 Environmental Compliance Complies to China RoHS; Complies to eU RoHS
 Laser Classification Caution Laser Radiation - Do not stare into beam; IeC 60825 Class 2
 Utility
 Datalogic aladdin™ Datalogic Aladdin configuration program is available for download at no charge.
 Opos/ Javapos JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.
 Remote Host Download BC4010: Lowers service costs and improves operations
