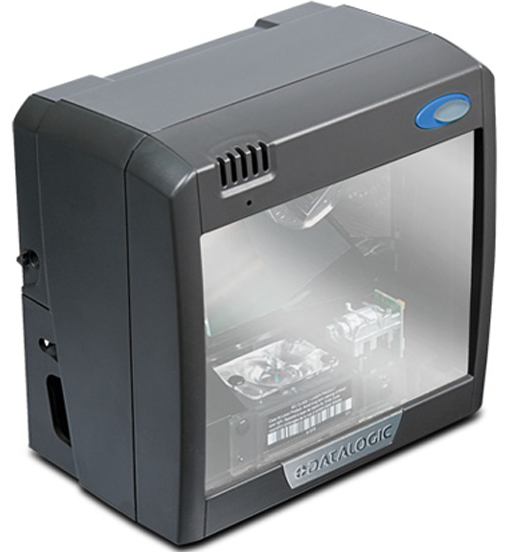

Datalogic Magellan 2200VS
Omnidirectional Laser Barcode Scanner



● 1D Omnidirectional laser barcode scanner
● 1400 Scan per second
Aggressive scanning performance
Advanced Data Formatting
● Schockproof to 1,2 meters
● To connect to an external barcode scanner

 Scanning Capability
 1D Linear barcodes Autodiscriminates all standard 1D codes including GS1
Databar™ linear codes
 Stacked Codes GS1 DataBar Expanded Stacked; GS1 DataBar Stacked;
GS1 DataBar Stacked Omnidirectional
 Electrical
 AC Power requirements AC Input: 90-265 VAC, 47-63 Hz
 Power consumption Operation: 9,6 Watts (Max), 4,0 Watts (Nominal)
 Power consumption Sleep Mode: 2,5 Watts
 Environmental
 ESD Protection (Air Discharge) 25 kV
 Operation Temperature 10°C ~ 40°C
 Storage Temperature -40 °C ~ 70 °C
 Hummidity %5 ~ %95 (Non Condensing )
 Interface
 Interfaces IBM 46xx, Keyboard Wedge, OEM (IBM) USB, RS-232, USB
 Auxiliary Ports Powered RS-232
 Optional
 EAS Features Checkpoint Systems: Integrated EAS hardware will work
with Counterpoint IV, V, VI and VII models. Sensormatic: Good Read Acknowledgement
 Value Addes Features Diagnostic Reporting; Productivity Index Reporting™ (PIR)
 Physical
 Width 152 mm
 Height 152 mm
 DEpth 97 mm
 Weight 1,1 Kg
 Reading Performance
 Motor Speed 6000 rpm
 Read Height 15,2 cm
 Reading Indicators Beeper (Adjustable Tone and Volume)
 Scan Line 20
 Safety and Regulatory
 Agency Approvals The product meets necessary safety and regulatory
approvals for its intended use.
The Quick Reference Guide for this product can be referred
to for a complete list of certifications.
 Environmental Compliance Complies to EU RoHS
 Laser Classification Caution Laser Radiation - Do not stare into beam; CDRH
Class IIa; EN 60825-1 Class 1
