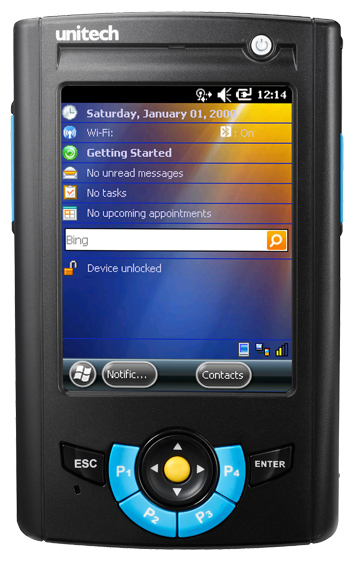

Unitech PA-500II
Windows Mobile Handheld Terminal



● Microsoft Windows Mobile 6.5 operation systems
● Intel PXA-320 (806 Mhz) proccessor
● 256 MB SDRAM, 512 MB Flash ROM
● 3,5 Inch QVGA, with touch screen-Color LCD Display
● Ergonomic, compact, robust and lightweigt
● 90 cm (3 ft) drop resistance
● Without Barcode Scanner
● Free Data Collection Software

 System
 CPU Intel PXA-320 (806 Mhz) proccessor
 RAM 256 MB
 Flash ROM 512 MB
 Operation Systems Windows Mobile 6.5
 Display
 Type Transflective TFT, with touch screen & backlight
 Size 3,5"
 Resolution 240 x 320 pixel
 Keypad
 Quantity 7
 Key Types 6 feature keys + 1 navigation key
 Input Device
 Type Keypad
Touch Screen
Full Alphanumeric Software Keyboard
Barcode scanner
 Indicator
 Type LED and Speaker
 Barcode Engine
 Types Optional: 1D Laser (Motorola Symbol SE-950)
 Barcode Types UPC-A/E, EAN-8/13, Codabar, Code 39, Code 39 full ASCI, Code 93,Code 32, Interleaved & Std. 2 of 5, EAN 128, Code 11, Delta, MSI/Plessey,Code 128, Toshiba
 Auido
 Items 0,8 W Mono Speaker
 Communication
 USB USB Host & Client
 WLAN IEEE 802.11 b/g/n (Summit Radio)
 PAN Bluetooth 2.1 + EDR
 Power
 Main Battery 3.7V @ 2200 mAH rechargeable
 Backup Battery One rechargeable Ni-MH backup battery (Support 2 Hours backup)
 Physical
 Heigth 126 mm (Antenna length excluded)
 Width 77 mm
 Thickness 25 mm
 Weight 213 gr (batteries included)
 Drop test 90 centimeters to concrete
 EMC CE, FCC, BSMI, VCCI, CCC, RoHS compliance
 Environmental
 Operation temperature 0 °C ~ 50 °C
 Storage temperature -20 °C ~ 60 °C
 Humidty %5 ~ %95 (Non Condensing)
 Software
 Software Microsoft Visual Studio 2005 / 2008
Auto Installer
 Expansion Slot
 Type SD (Support SDHC up to 32 GB))
 Accessories
 Accessories Desktop USB Cradle with Battery charger
Main Battery (2200 mAH)
USB communication and charging cable
AC adaptor Universal Power Plugs

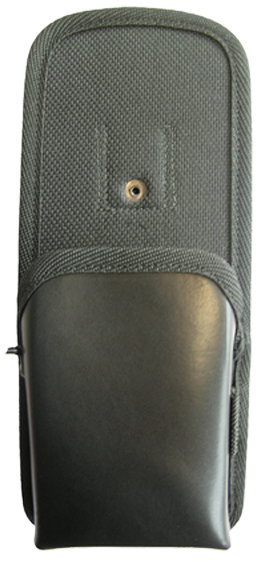

Cases
Turkish
 Data Sheets
 ActiveSync 4.5 Synchronization software (For Windows XP)
 Mobile Device Center  (32 Bit) Synchronization software (For Windows Vista / 7 / 8 / 8.1 / 10)
 Mobile Device Center  (64 Bit) Synchronization software (For Windows Vista / 7 / 8 / 8.1 / 10)
 English
 Data Sheets
 User Manual
 Programming Manual
 ActiveSync 4.5 Synchronization software (For Windows XP)
 Mobile Device Center (32 Bit) Synchronization software (For Windows VISTA and Windows 7)
 Mobile Device Center (64 Bit) Synchronization software (For Windows VISTA and Windows 7)
 PowerToys Remote Managment Software
