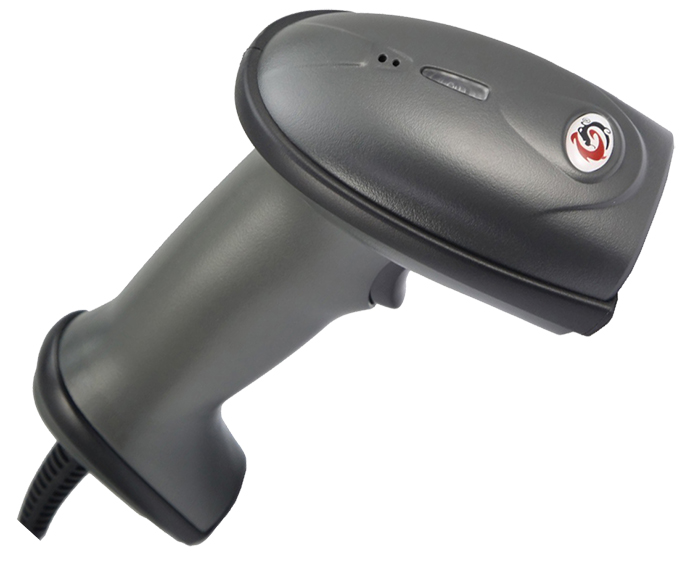

Sunlux XL-3956
2D/Imager Barcode Scanner



● 2D Imager Scanner
● Light weight, ergonomic design
● 640 X 480 Pixel CMOS Sensor
● 1D:(3 mil) and 2D (6,8 Mil) resolution
● 50 ~ 300 mm scanning distance
● Scanning Inverse Barcodes
● USB Interface

 Performans
 Image Sensor  CMOS
 Resolution  640 X 480 Pixel
 Light Source  625 nm ± (10 nm)  Red LED
 Resolution  1D: Min: 5 Mil (EAN-13)
 2D: Min:6.8 Mil (QrCode)
 Scanning Distances  50 - 300 mm (UPC-A, 13 mil)
 25 - 280 mm (QR Code, 20 mil)
 Rotational Sensitivity  Roll: 360° Pitch ve 0° Skew
 Skew: ±50° Roll ve 0° Pitch
 Pitch: ±50° Roll ve 0° Skew
 Print Contrast (Minimum)  Min: %30
 Indicators (LED)  Beeper and LED
 Scanning Mod  Manual
 Interface  USB-HID, USB COM, USB POS, USB Datapipe or RS232
 Physical
 Height 102 mm
 Length 175 mm
 Width 73 mm
 Weight 229 gr
 Case Material ABS Plastic
 Color Black
 Cable Standart 2 Meter Straight
 Electrical
 Voltage DC 3.3 ± 0.3V
 Current Operation Mode: 120 mA
Idle Mode: 94 mA
Slepp Mode: 40 mA
 Power consumption 2 W
 Environmental
 Light Levels 100.000 Lux
 Operation temperature -5°C ~ 45°C
 Storage temperature -40 °C ~ 60 °C
 Humidty %5 ~ %95 (Non Condensing)
 Certification CE (EMC), Class B, RohS
 Decoding Capability
 1D Barcodes Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN,  Code 93, UCC/EAN-128, GS1 Databar
 2D Barcodes PDF417, QR Code(Model 1/2,miroco), DataMatrix (ECC200, ECC000,050, 080, 100,140)
