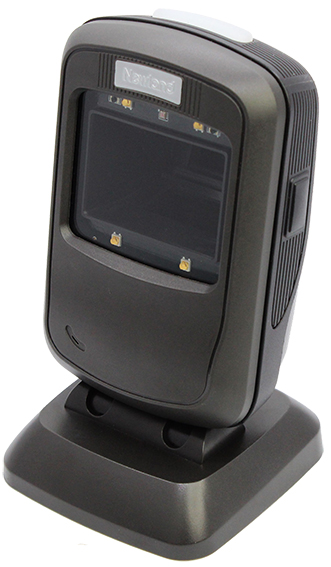

● 2D / Imager Barcode Reader
● Support 1D and 2D Barcodes
● 752 x 480 Pixel Sensor
● 1D: 5 mil resolution
● Reading from LCD Screens
● RS-232 and USB Interfaces
| Performance | |
| Image Sensor | 752 x 480 Pixel CMOS |
| Resolution | 0,127 mm / 5 mil (1D Codes) |
| Motion Tolerance | 2,5m/s |
| Scanning angle | Pitch: ±60°; Roll: ±360°; Skew: ±55° |
| Indicators | LED and Beep volume |
| Print Contrast | ≥%25 |
| Supported Interfaces | RS-232 and USB |
| Physical | |
| Length | 83 mm |
| Width | 81 mm |
| Height | 148 mm |
| Weight | 292 Gram |
| Electrical | |
| Power Adaptor (Optional) | Input: AC100~240V, 50~60Hz |
| Output: 5VDC, 1,5A | |
| Current | Standby: 120 mA |
| Operation: 150 mA | |
| Environmental | |
| Operation temperature | -20 °C ~ 50 °C |
| Storage temperature | -40 °C ~ 70 °C |
| Humidty | %5 ~ %95 (Non Condensing) |
| Drop | 1.5m drop to concrete |
| Sealing | IP50 |
| Certifications | |
| Certifications | FCC Part15 Class B, CE EMC Class B |
| Scanning Capability | |
| 1D Linear Barcodes | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey |
| 2D Codes | PDF417, QR Code, Data Matrix, Chinese Sensible Code |
