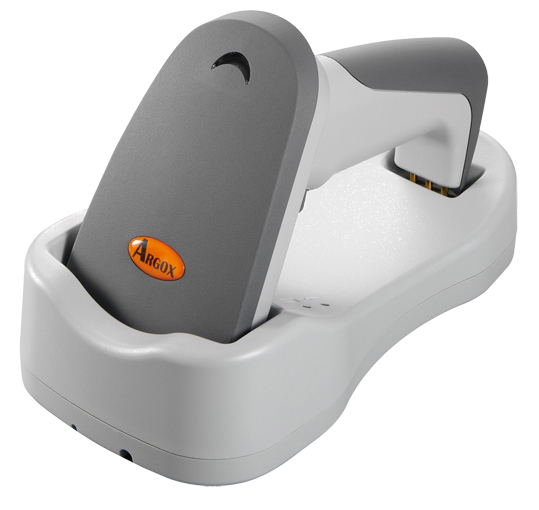

Argox AS-8520
Wireless 1D Barcode Scanner





● 1D Wireless Barcode Scanner
● Light Weight, Ergonomic Design
● Without any moving parts to wear out
● Operate with a 100-meter data transmission range
● Excellent Scanning Performance starting at 0.1mm (4 mil)
● Support GS1 databar (RSS) & CS ( Composite Symbology) barcodes
● 450 scans per second
● 0 ~ 250 mm scanning distance
● Readable Under Sun Light

 Operational
 Light source 630 nm visible red LED
 Optical system 2048 pixel CCD (charge-coupled device)
 Depth of scan field 0-600 mm (Code39, PCS=90%, 20mil)
 Scanning width 160 mm
 Scan speed 450 scans / sec
 Minimum Bar Width 0,1mm (4mil) Code39, PCS=90%, on contact
 Print Contrast 30% @ UPC/EAN 100%
 Scanning angle Front:60° ,Rear: 60° ,Yaw: 75°
 Indicators (LED) Green & Red Led (2 more LED for 8520 cradle)
 Beeper Operation Programmable tone & beep time
 System Interfaces RS-232C and USB
 Physical
 Length 164 mm
 Width-handle 30 mm
 Width-Head 78 mm
 Depth-handle 56 mm
 Depth-Head 35 mm
 Weight 250 gr (Battery Included)
 Cable Standard 2 meter straight
 Material ABS Plastic
 Electrical
 Input Voltage 5 VDC ±0,25V
 Battery -
 Power - operating 900 mW
 Power - standby 150 mW
 Current - operating 225 mA @ 4.2 VDC
 Current - standby 32 mA @ 4.2 VDC
 Recharge Time 5 Hours (Max.)
 Radio Communication
 Type GFSK Modulation
 Radio Frequency 2.4 ~ 2.483 GHZ
 Power 100mw (Adaptive Frequency system)
 Working Range Max. Up to 100 meter (depends on operating environment)
 Environmental
 Operation temperature 0°C ~ 50°C
 Storage temperature -20 °C ~ 70 °C
 Humidty %10 ~ %90 (Non Condensing)
 Light Levels Max. 70.000 Lux
 Drop Durability Designed to with stand 1,5 m drops
 EMC UL, FCC, CE, BSMI, NCC
 Supported Barcode Types
 Standart Autodiscriminates all standard barcodes; including GS1 databar
Other symbologies can be ordered optionally
