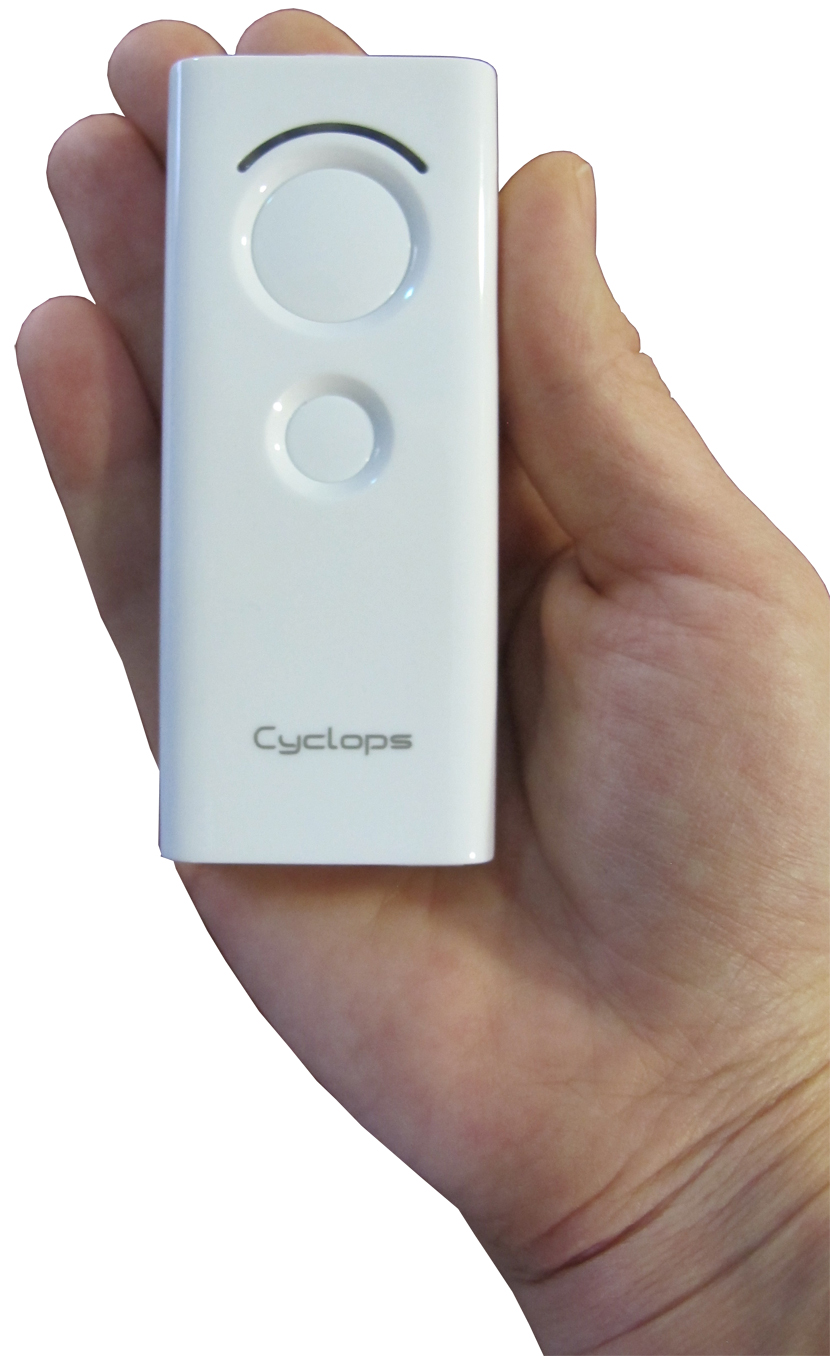

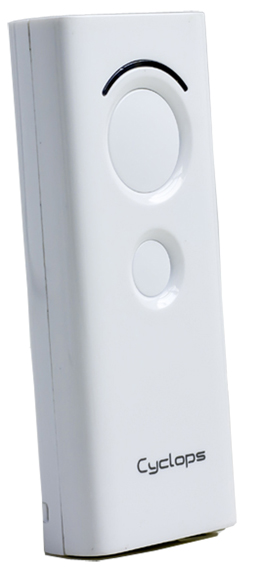

Bitatek BTS-700
(Cyclops II)
Wireless 2D Barcode Scanner





● 1D / 2D Barcode Scanner
● Support both HID and SPP connection
● Light Weight, Ergonomic Design
● Operate with a 10-meter data transmission range
● Windows, Android and IOS support
● 2MB Flash ROM for data storage in batch mode
● USB 2.0 Client Compatible
● Built-in RTC giving time-stamp on each scanned data
● IP 54 high-level industrial protection maximizing application reliability

 Operational
 Optical system Cmos Imager
 Sensor Resolution 1280  x 800 pixel
 Light source 610 nm Aiming LED
 Minimum Bar Width 1D: 0.1 mm (5 mil)
2D: 0.127 mm (5 mil)
 Scan speed 60 Frame / Sec
 Print Contrast %20 (Minimum)
 Memory 2 MB Flash ROM and 128 MB LPDDR SDRAM
 Keys 3 Pcs (Scan, Function ve Reset)
 Software Supported Windows, iOS (5.0 above) and Android (4.0 above)
 Communication
 Communication Mode Bluetooth
 Profile SPP & HID
 Version Ver.2.1+EDR Class2
 Interface Mini USB
 Working Range Max. Up to 10 meter (depends on operating environment)
 Decoding Capability
 Supported Barcode Types  1D UPC-A,UPC-A Add-on, UPC-E, UPC-E Add-on, JAN/EAN-13, JAN/EAN-13 Add-on, JAN/EAN-8, JAN/EAN-8 Add-on, Code128, Code39, NW-7 (Codabar) Interleaved 2 of 5(ITF), GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Composite CC-A/B Composite CC-C, Postal Codes
2D PDF417, MicroPDF417, Aztec Data Matrix, MaxiCode, QRCode, Micro QRCode
 Electrical
 Battery 720 mAh Rechargable Litium-Ion
 Duration 5000 Scan (2D Barcode)
 Physical
 Width 38 mm
 Height 15,9 mm
 Length 90 mm
 Weight 67 gr (Battery Included)
 Material ABS Plastic
 Environmental
 Operation temperature -10°C ~ 50°C
 Storage temperature -25 °C ~ 60 °C
 Humidty %5 ~ %95 (Non Condensing)
 Drop Durability 2 meter (1 drop)  and 1-meter (Tumble Drop 100-Cycle)
 EMC BSMI / NCC / CE / FCC
