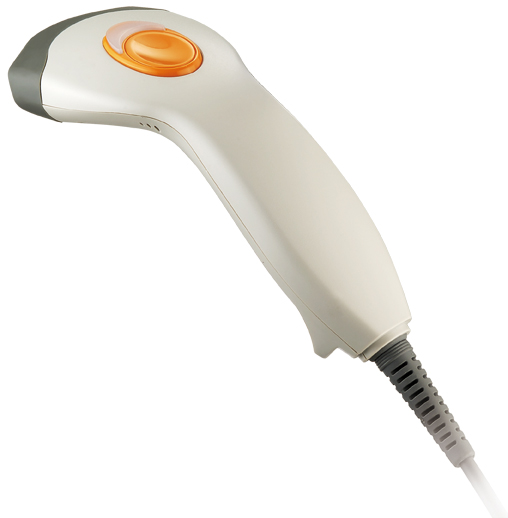

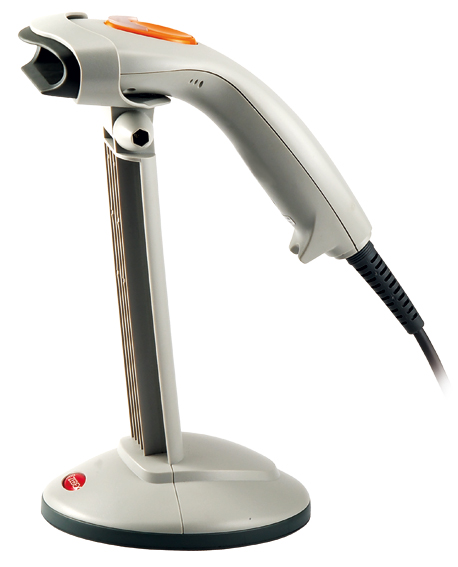

Zebex Z-3101
Single Line Laser Barcode Scanner



● 1D Single Line Laser barcode scanner
● Light weight, ergonomic design
● 32 Bit Microprocessor
● 100 scan per second
● 0,127 mm (5 mil) resolution
● 0 ~ 300 mm scanning distance
● USB, PS/2, RS-232C and WAND interface options

Operational
 Light source 650 nm visible laser diode (VLD)
 Scan Pattern Single Line
 Microproccessor 32 Bit
 Depth of field 0 ~ 300 mm (UPC/EAN 100%, PCS=90%)
 Scan Rate 100 scans/sec
 Scan Angle 42°
 Minimum Bar Width 0.125 mm (5 mil) (0.1 mm actually)(Code 39, PCS=90%)
 Print Contrast  30% @ UPC/EAN 100%
 Indicators (LED) Green LED
 Beeper Operation Programmable tone & beep time
 System Interfaces  Keyboard, RS-232C, HID USB, wand
 Physical
 Height 104.9 mm
 Depth 152.3 mm
 Width 64.4 mm
 Weight 92,3 gr (Without Cable)
 Cable Standard 2 meter straight
 Material ABS Plastic
 Electrical
 Input Voltage 5VDC (±10%)
 Operating Current  120 mA
 Environmental
 Operation temperature 0°C ~ 50°C
 Storage temperature -20 °C ~ 60 °C
 Humidty %5 ~ %95 (Non Condensing)
 Light Levels Max. 10.000 Lux (fluorescence)
 Drop Durability Designed to with stand 1.5M drops
 Supported Barcode Types
 Standart UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8 & JAN 13, ISBN/ISSN, Japanese Bookland EAN, Code 39,  Code 39 with full ASCII, Codabar (NM7),Code 128, Code 128 with full ASCII,  Code 93,Interleaved 2 of 5 (ITF), Addendum 2 of 5, IATA Code, MSI/Plessy, China Postal Code, Code 32
