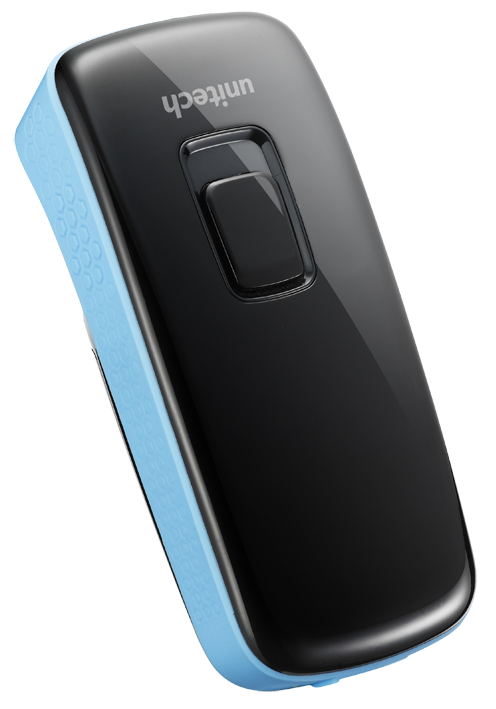

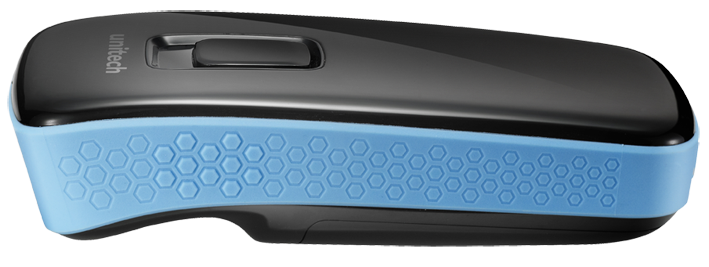

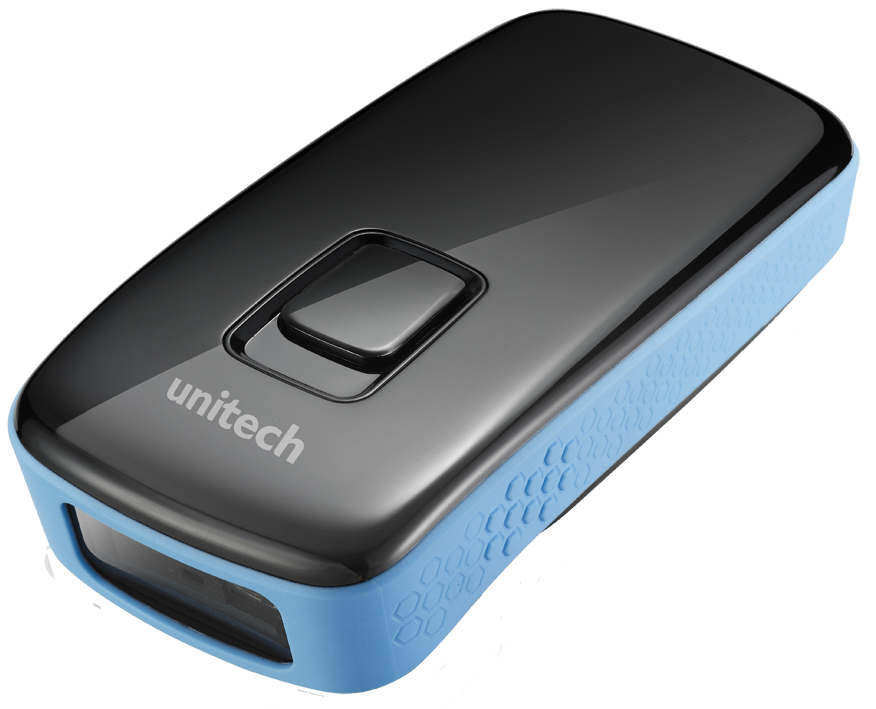

Unitech MS-920
Wireless 2D Barcode Scanner





● 2D Barcode Scanner
● Wireless (Bluetooth) Communication
● Max. 100 meter communication range
● 0,1 mm (4 mil) Resolution
● Windows, Android and IOS support
● Drop resistance to 1.5 m
● Battery for more than 10 hours operation of continuous use

 Optical & Performance
 Imager Sensor 752 x 480 pixels
 Light Source Illumination: Highly visible white LED
Aiming : 617 nm red LED
 Max. Resolution 1D: 0.1 mm (4 mil)
1D: 0.167 mm (6,6 mil)
 Skew Angle ±58 degrees
 Pitch Angle Sensor ±86 degrees
 Printing Contrast Scale 30%
 Motion Tolerance 4 inches per second
 Scanning Distances
 Scanning Distances Code 39, 4 mils: 6 cm ~ 18 cm
Code 39, 5 mils: 4.5 cm ~ 22.5 cm
Code 39, 20 mils: 6 cm ~ 64 cm
Code 39, 40 mils: 12.5 cm ~ 97.5 cm
EAN -13, 13 mils: 4.5 cm ~ 41 cm
Data Matrix, 7 mils: 6.5 cm ~ 15 cm
Data Matrix, 10 mils: 4.5 cm ~ 21 cm
Data Matrix, 15 mils: 4.7 cm ~ 31 cm
PDF417, 6.6 mils: 5 cm ~ 18.2 cm
PDF417, 10 mils: 3.7 cm ~ 27.5 cm
PDF417, 15 mils: 4.5 cm ~ 40 cm
 Functionality
 Symbologies 1D EAN/UPC, GS1 Databar (limited expanded & omni-directional), Code 39, Code 128, UCC/EAN 128, ISBN, ISBT, Interleaved/Matrix/ Industrial and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen
2D Data Matrix, PDF417, Micro PDF 417, Codablock, Maxicode, QR, Aztec Postal, Australian Post, BPO, Canada Post, Dutch Post, Japan Post, PostNet, Sweden Post
 Operation Mode Trigger Mode, Flash Mode, Continuous Mode, Buffer mode
 Data Formatting Prefix, Suffix, Code ID
 Electrical
 Operation Voltage DC 3V to 5V
 Current Consumption Operation mode: 76.8mA

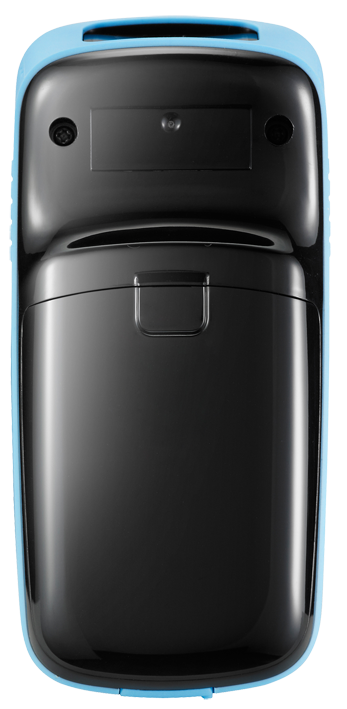

 Battery Type Rechargeable Lithium-ion battery
 Battery Duration 1100 mAh
 Battery Charging time Fully charged in 4 hours
 Operating Time Over 13 hours ( 1 scan / 3 seconds)
 Mechanical
 Housing Material ABS
 Scanner Dimension Height: 28.1 mm, Width: 51.4 mm, Length: 109.3 mm
 Scanner Weight 105.2 gr
 Switch life 10 million time
 Environmental
 ESD Protection Functional after 8K Contact and 12K Air
 Mechanical Shock 1.5 m onto concrete (scanner only)
 IP rate IP42
 Operating Temperature 0°C to 50°C
 Storage Temperature -30°C to 70°C
 Relative Humidity Max. 95% (Non Condensing)
 Communication
 Radio Frequency Unlicensed 2.4GHz
 Protocol Wireless SPP & HID profiles
 Range 100 M (Line of Sight)

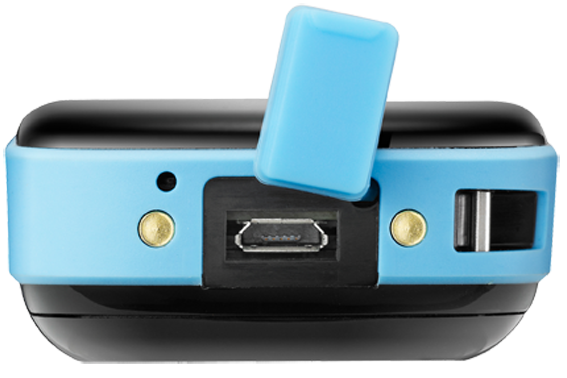

 Host Interface supported USB
 Regulation Approvals
 Regulation Approvals CE, FCC, BSMI, VCCI
 Accessories
 Accessories Battery Pack*1, Whist Strap, Micro USB to USB Cable
