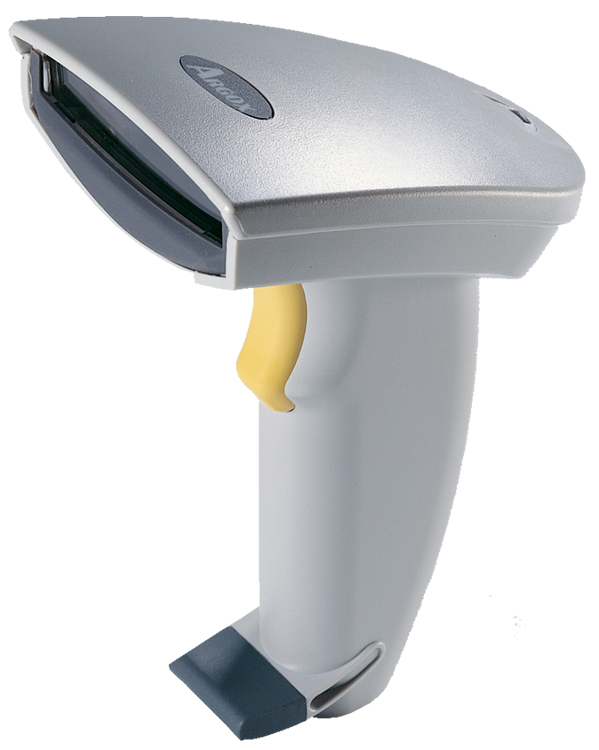

● 1D CCD barcode scanner
● Light weight, ergonomic design
● 200 scan per second
● 0,1 mm (4 mil) resolution
● 0 ~ 250 mm scanning distance
● USB, PS/2 and RS-232C interface options
● Readable under sun ligth
| Operational | |
| Light source | 660 nm visible red LED |
| Optical system | 2048 pixel CCD (charge-coupled device) |
| Depth of field | 0-250 mm |
| Scanning width | 120 mm |
| Scan Rate | 200 scans/sec |
| Minimum Bar Width | 4 mils (0.1mm) - Code 39, PCS=90 % |
| Current - sleep mode | 25 mA @5VDC |
| Print Contrast | 45% or more |
| Scanning angle | Front:60° ,Rear: 60° ,Yaw: 75° |
| Indicators (LED) | Green LED |
| Beeper Operation | 7 tones or no beep |
| System Interfaces | Keyboard, RS-232C and USB |
| Physical | |
| Length | 182 mm |
| Depth | 35 mm, 51 mm |
| Width | 26 mm, 74 mm |
| Weight | 160 gr (Stand excluded) |
| Cable | Standard 2 meter straight |
| Material | ABS Plastic |
| Electrical | |
| Input Voltage | 5VDC ± 0.25V |
| Power |
Operation: Max 1275 mW Standby:600 mW |
| Operating Current |
Operation:255 mA @5.0V Standby: 120 mA @5.0V |
| EMC | CE, FCC, CCC, RoHS |
| Environmental | |
| Operation temperature | 0°C ~ 45°C |
| Storage temperature | -40 °C ~ 60 °C |
| Humidty | %5 ~ %95 (Non Condensing) |
| Light Levels | Max. 60.000 Lux (fluorescence) |
| Drop Durability | Designed to with stand 1.5M drops |
| Supported Barcode Types | |
| Standart | Autodiscriminates all standard onedimension barcodes; including GS1 databar |
| Turkish | ||
| Data Sheets |
 |
|
| English | ||
| Data Sheets |
|
|
| Programming Guide |
|
|
 |
 |
 |
 |
 |
|
