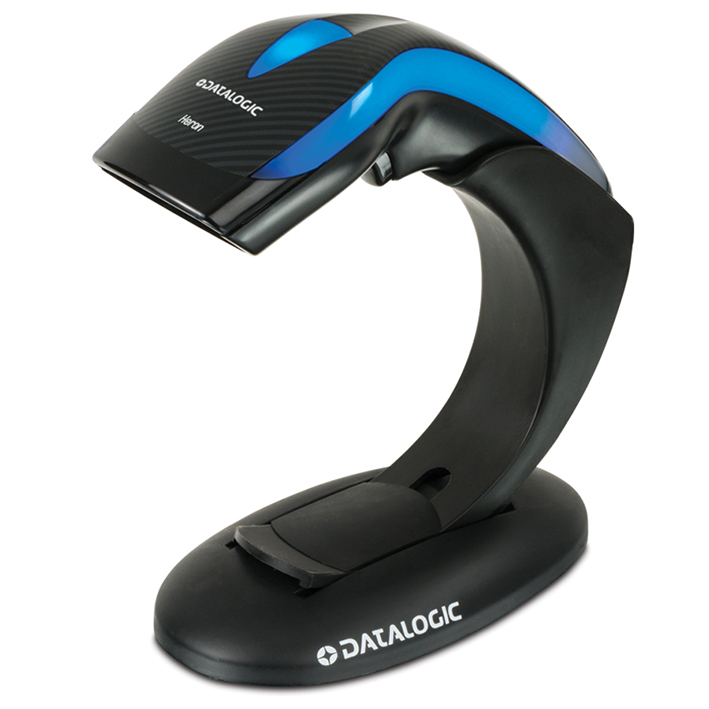

Datalogic Heron HD3100
CCD Barcode Scanner



● 1D CCD barcode Scanner
● Light weight, ergonomic design
● 270 Scan per second
● 0,1 mm (4 mil) resolution
● 20 ~ 600 mm scanning distance
● Multi Interface
● ‘Green Spot’ Good Read Feedback
● Polyphonic speaker for audio feedback
● IP40 Standart
● Schockproof to 1,5 meters

 Reading Performance
 Imager Sensor CCD Sold-State (2500 Piksel)
 Print Contrast 15%
 Scan Rate 270 (Maximum)
 Indicators (LED) Adjustable Beeper Tone , Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED; Good Transmission
 Çözünürlük (Maksimum) 0.100 mm  (4 mils)
 Decoding Capability
 1D Linear Codes Autodiscriminates all standard 1D codesincluding GS1 DataBar™ linear codes.
 Postal Codes China Post
 Stacked Codes GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional
 Electrical
 Çalışma Akımları Max: 500 mA @ 5 VDC, Typical: 300 mA @ 5 VDC,
 Giriş Voltajı 5 VDC (±%5)
 Environmental
 Light Levels 0 ~ 100.000 Lux
 Temperature Operating: 0°C ~ 50°C
Storage: -20 °C ~ 70 °C
 Humidty %5 ~ %90 (Non Condensing)
 Drop Resistance 1,5 meter
 IP Standard IP40
 ESD Protection (Air Discharge) 16 kV
 Interfaces
 Interfaces PS/2, RS-232 and USB (Multi Interface)
 Physical
 Color  Black
 Dimensions 152 mm x 153 mm x 68 mm
 Weight 150 Gram
 Top Case Design Carbon Fiber
 Reading Range
 Typical Depth Of Field 5 mils: 50 mm  ~ 150 mm
10 mils: 20 mm ~ 350 mm
13 mils: 20 mm ~ 400 cm
20 mils: 20 mm ~ 600 cm
 Safety and Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
 Environmental Compliance Complies to China end EU RoHS
 LED Classification IEC 62471 Exempt Class
 Utilities
 Datalogic Aladdin Datalogic Aladdin configuration program is available for download at no charge
 OPOS / JavaPOS JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.
 Remote Host Download Lowers service costs and improves operations
