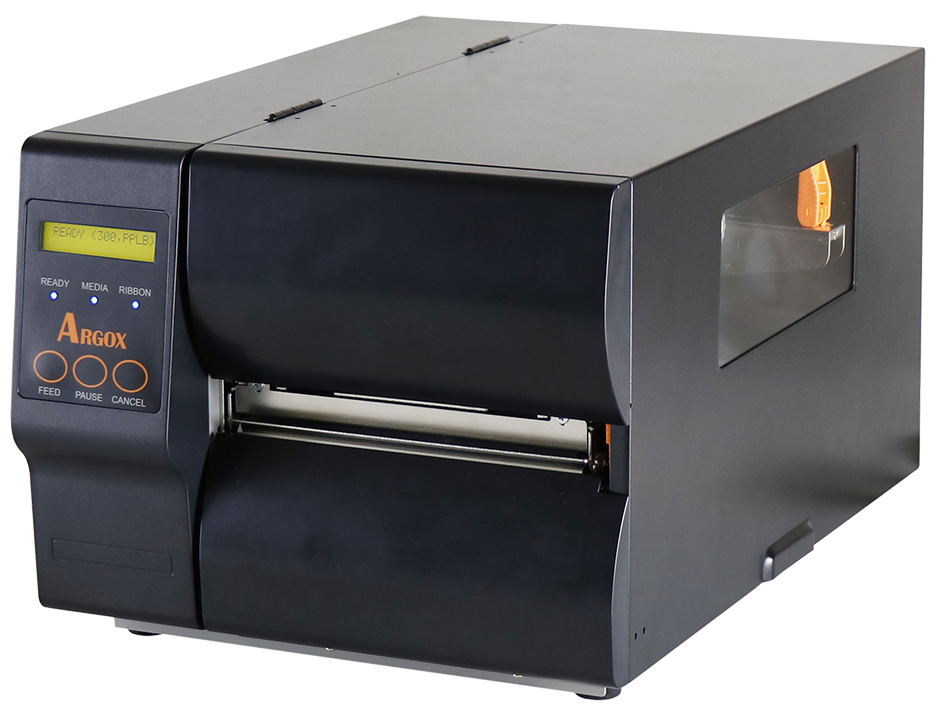

Argox IX6-250
Industrial Barcode Printer



● Direct Thermal And Thermal Printing
● 203 DPI Printing Resolution
Max. 168 mm Printing Width
● Max. 2540 mm Printing Length
● Max. 152 mm / Sec Printing Speed
● 32 MB DRAM and 16 MB Flash ROM
● PPLA, PPLB and PPLZ Barcode Print Language Support
● Ethernet, RS-232C, USB Client and Dual USB Host Port
● Windows and Linux Driver Support

 Operational
 Printing method Direct Thermal and Thermal Transfer
 Printing resolution 203 DPI (8 dots/mm)
 Printing speed (Maximum) 152 mm/saniye
 Printing length Max. 2540 mm
 Printing width Max. 108 mm
 Memory 32 MB DRAM, 18 MB Flash ROM
 Proccessor 32 bit RISC micro proccessor
 Operation interface 3 Button (Feed, Pause and Cancel)
3 LED (Ready, Media and Ribon)
With Backligth Color Display (16x2 Line)
 Communication interface Ethernet, Çift USB Host, USB ve RS-232C
 Real Time Clock Standart
 Sensor Reflective and transmissive media sensor (Movable)
Head open switch sensor
Ribbon end sensor
 Print directions 0, 90, 180, 270 degree
 Agency listing CE, CB/LVD, FCC, ICES, BSMI, CCC
 Physical
 Width 318 mm
 Height 262 mm
 Length (Depth) 470 mm
 Weight 14 kg
 Material Metal
 Electrical
 Power input type Power Cable
 Power source (Input) 100 ~ 240V, 5A, 50/60 Hz
 Environmental
 Temperature Operation: 4 °C ~ 40 °C
Storage : -20 °C ~ 50 °C
 Humidty Operation: %30 ~ %85 (Non Condensing)
Storage: %10 ~ %90 (Non Condensing)
 Label
 Type Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper
 Width 50,8 mm ~ 160 mm
 Thickness 0.0635 ~ 0.254 mm
 Roll Inside diameter 38 mm ~ 76 mm
 Roll Outside diameter Max. 177,8 mm (With 38 mm ID Core)
Max. 210 mm (With 76 mm ID Core)
 Ribbon
 Type Wax, Wax/Resin and Resin
 Ink side Inside / Outside
 Width 50,8 mm ~ 154,9 mm
 Length 450 Meter (Max.)
 Roll Inside diameter 25,4 mm
 Roll Outside diameter 81,3 mm (Max.)
 Software
 Windows drivers Win XP / Vista / 7 / 8 / 8.1 / Win 10, Windows Server 2003 / 2008 / 2012 (32 Bit & 64 Bit)
 Label Design programs Bartender UltraLite (Free)
 Utility programs Printer Utility and Font Utility
 Supported barcode printing language PPLA, PPLB and PPLZ
Supported graphics formats PPLA: PPCX, BMP, IMG, HEX ve GDI formats
PPLB: PCX, BMP, Binary raster and GDI formats
PPLZ:GRF, Hex ve GDI Formats
 Supported Barcode Types
 1D UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked
 2D QR Code, PDF417 (including MicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode
