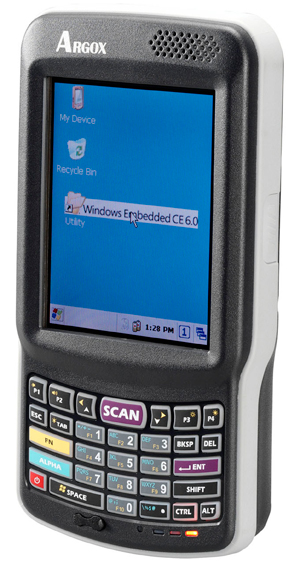

● Windows CE.NET 6.0 operation systems
● Marvell CPU PAX310 806 Mhz proccessor
● 256 MB RAM, 256 MB ROM
● Low Power Transflective TFT 24 bits color LCD, 240x320 with touch screen
● Ergonomic, compact, robust and lightweigt
● Bluetooth and Wifi technology
● 1.8 mt (6 ft) drop resistance

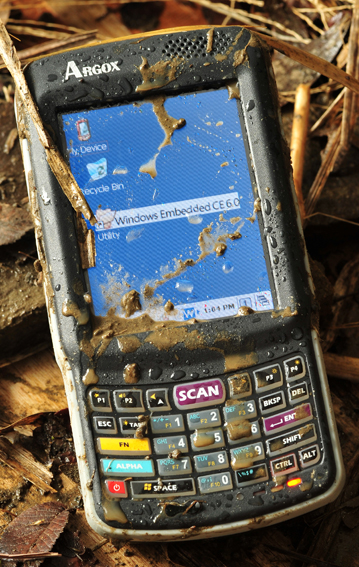

● IP65 protection class
● Free Data Collection Software
| System | |
| CPU | Marvell CPU PAX310 806 Mhz |
| RAM | 256 MB |
| Flash ROM | 256 MB |
| Operation Systems | Microsoft Windows CE .NET 6.0 Professional |
| Display | |
| Type | Low Power Transflective TFT 24bits color LCD with touch panel |
| Size | 3,5" |
| Resolution | 240 x 320 pixel |
| Physical | |
| Length | 159 mm |
| Width | 80,8 mm |
| Height | 36 mm |
| Weight | 380 gr (batteries included) |
| Keys | 29 Keys (Optional 44 Keys) |
| Alert | Speaker, Vibrator |
| LED | Blue, Green and Red |
| Expansion Slot | Micro SD Card (for disk memory) |
| Drop test | 1.8 meters to concrete (Handset) , 0.9 meters to concrete (Cradle) |
| Sealed standard | IP65 |
| EMC | - |
| Communication | |

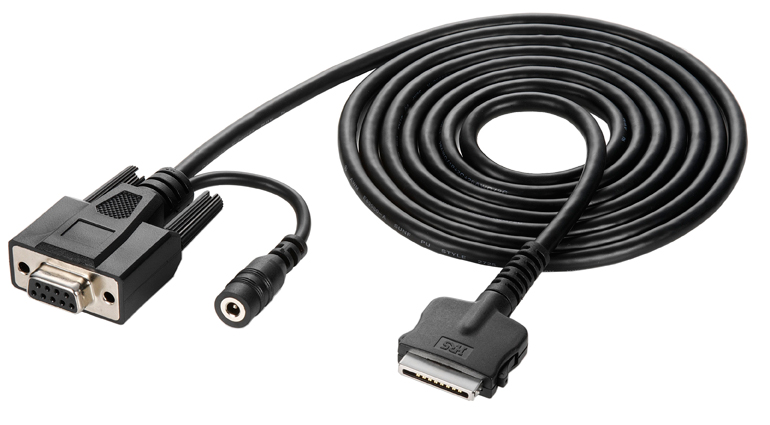

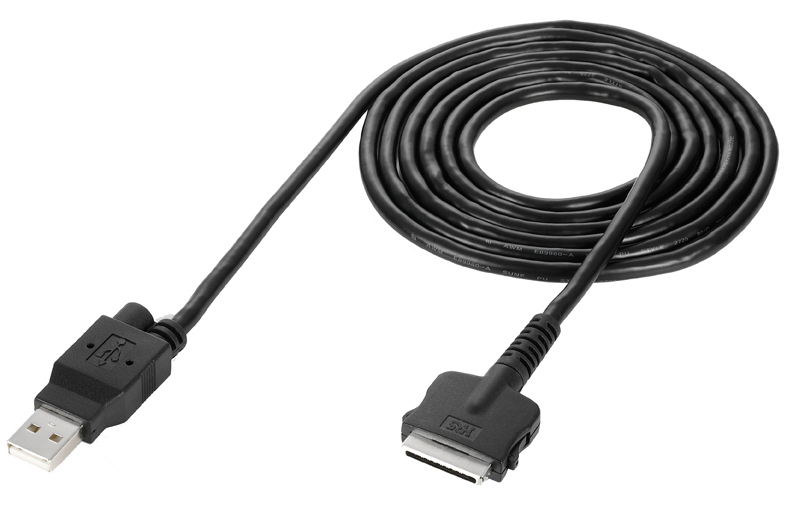

| Wired communication | RS-232C or USB |
| Wireless communication | Bluetooth (V2.1) or WLAN (802.11 b/g/n) |
| Scanner | |
| Scanner system |
Standart: Laser scan engine Optional: Area Imager |
| Scanning rate | 100 scan/sec |
| Depth of field | 70 mm - 95 mm (5.2 mil) |
| 57 mm - 171 mm (7,5 mil) | |
| 50 mm - 210 mm (10,4 mil) | |
| 50 mm - 254 mm (13 mil) | |
| 75 mm - 300 mm (19,5 mil) | |
| Supported barcode |
1D: Supported all
popular linear barcodes
included GS1 databar,
Code 39, Code 93,
Codabar, Code 128, UPC
A, UPC E, Interleaved
2/5,Matrix 2/5,
MSI/Plessey, UK/Plessey,
Telepen, UPCA,UPCE, Code
11,EAN-8,EAN-13,Industrial
2/5 2D (Optional) :Data Matrix, Maxicode, QR code OCR- fonts included OCR-A and OCR-B |
| Power | |

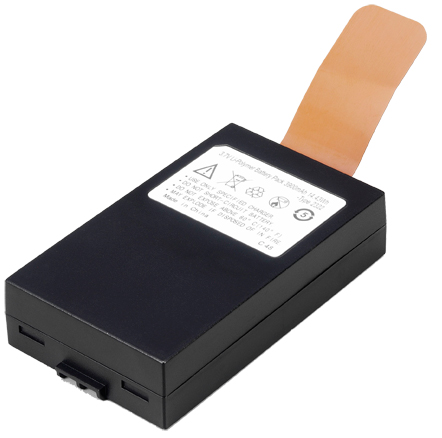

| Main Battery | Standart: 3.7V 3900 mAh Rechargeable Li-Polymer Battery |
| Optional: 3.7V 4400 mAh Rechargeable Li-Ion Battery | |
| Battery Life | Standart Battery: |
| Optional Battery: | |

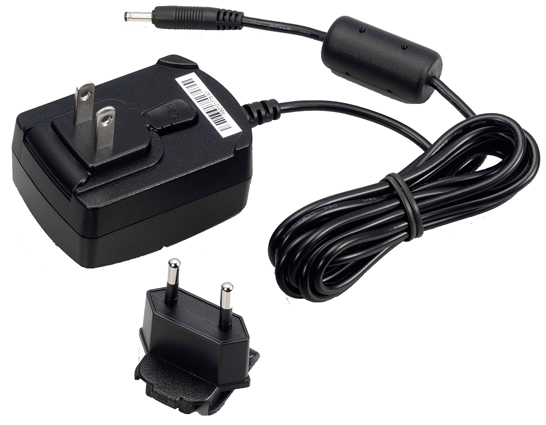

| Power supply | DC 5V,5A, 100-240V 0,5A,50-60 HZ, 33-48VA |
| Electrostatic discharge |
+/-15kVDC Air discharge
+/- 8kVDC Direct discharge (contact) +/- 8kVDC Indirect discharge (H & V) |
| Environmental | |
| Operation temperature | -10 °C ~ 60 °C |
| Storage temperature | -20 °C ~ 70 °C |
| Operation Humidty | %10 ~ %90 (Non Condensing) |
| Storage Humidty | %5 ~ %95 (Non Condensing) |
| Software | |
| Software | Embedded Visual C++ 4.0 |
| Visual Studio. NET | |
| Visual Studio 2005 | |
| Windows CE SDK | |
| Scanner Configuration Utility | |
| Accessories | |

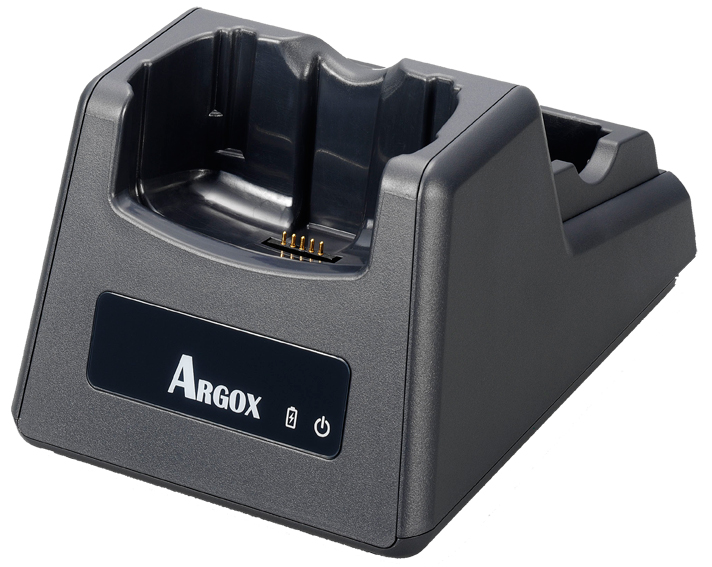

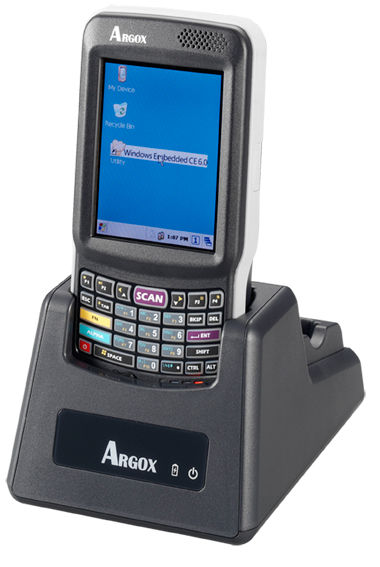

| Accessories | Charging & Communication Cradle |

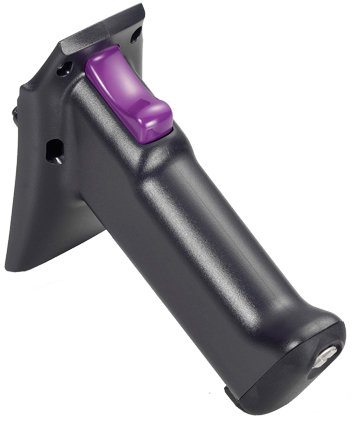

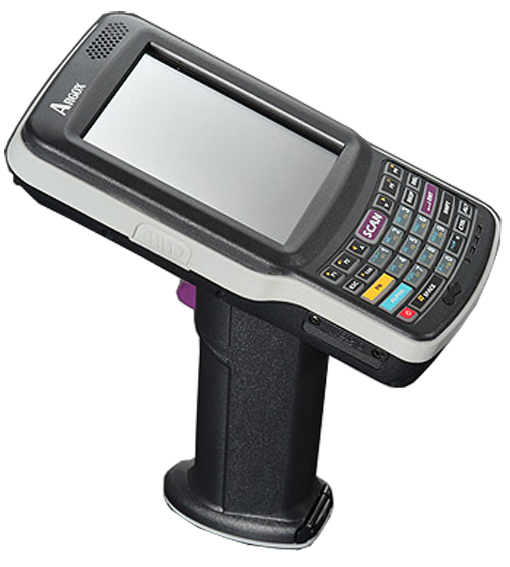

| Pistol Grip | |
| Charging cable | |

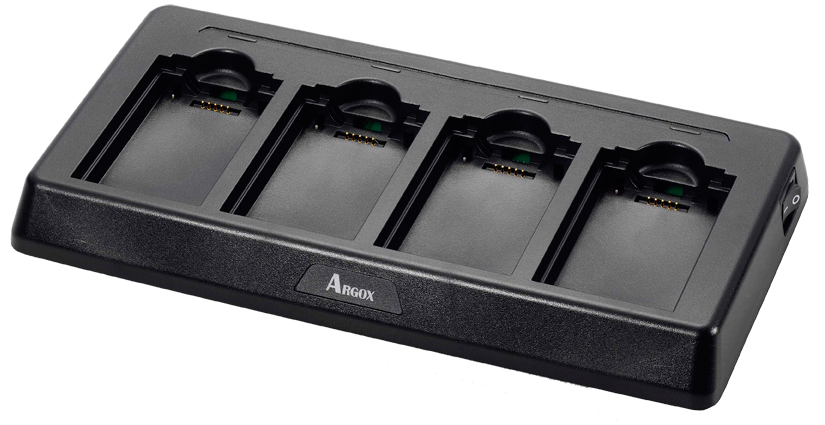

| Four slot charging cradle | |
