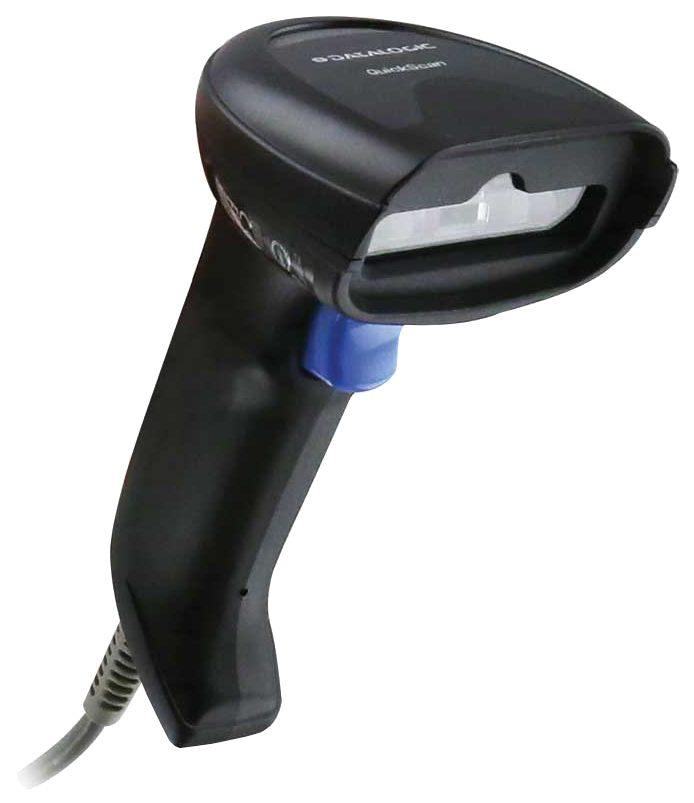

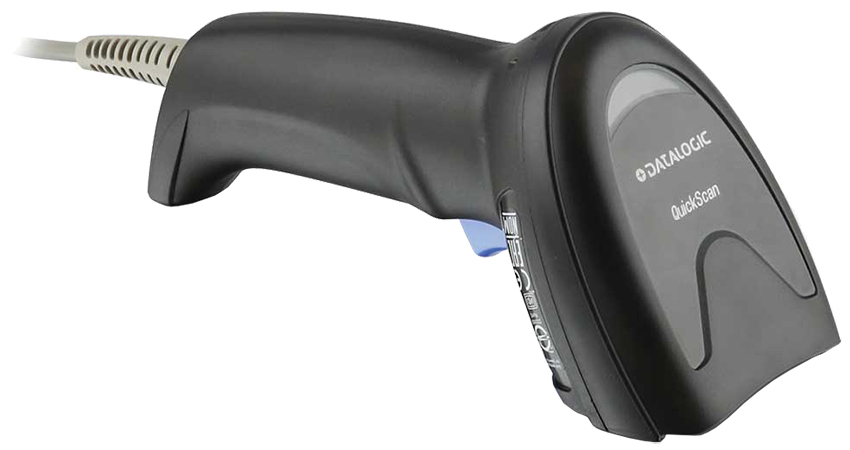

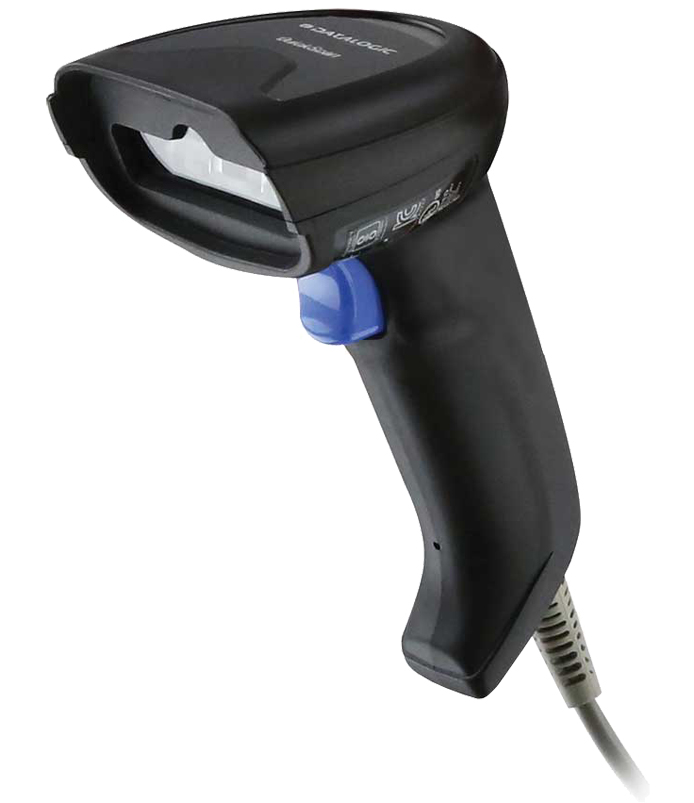

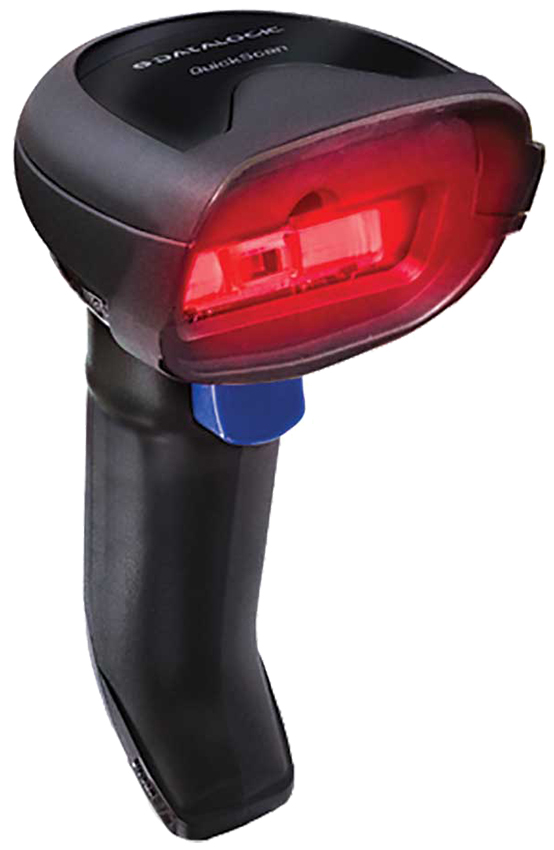

● 1D Imager barcode Scanner
● Light weight, ergonomic design
● 400 Scan per second
● 0,077 mm (3 mil) resolution
● 4 ~ 1030 mm scanning distance

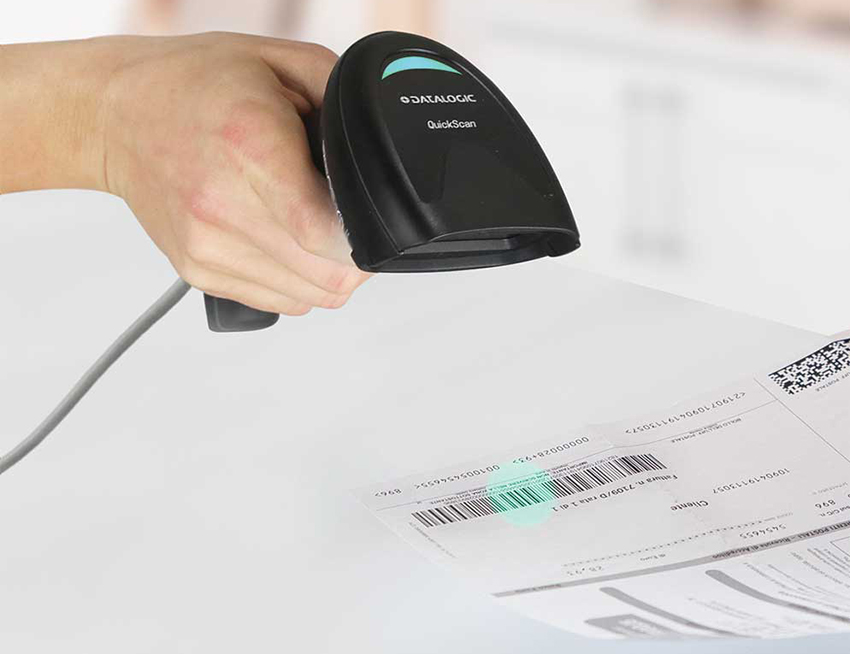

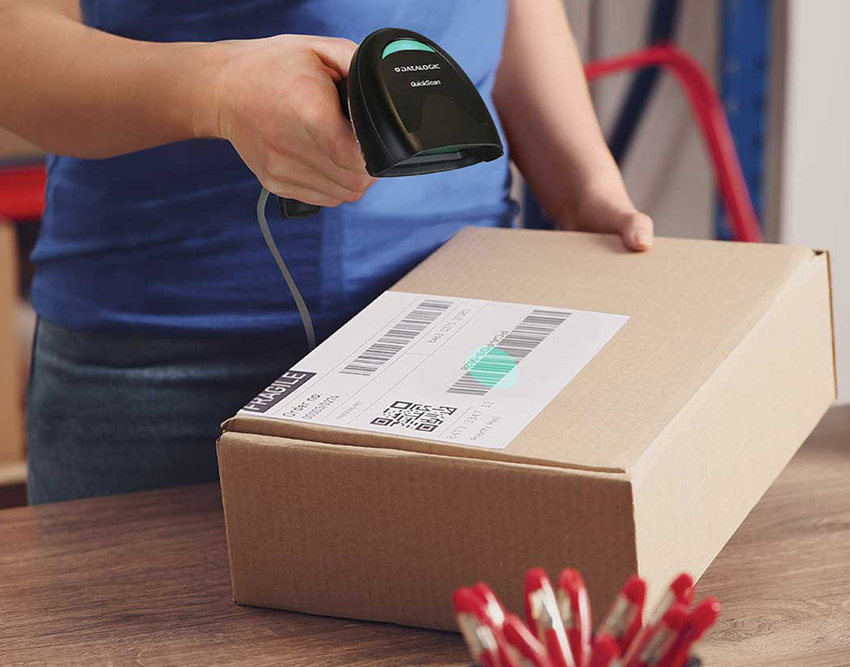

● "Green Spot" Light For Good Read Feedback
● IP42 Standard
● Schockproof to 1,5 meters
| Reading Performance | |
| Imager Sensor | CCD Solid-State |
| Field Of View | 56° ±2° |
| Light Source | Illumination : Red Led 617 nm |
| Read Rate (Maximum) | 1.000.000 pixels/sec (400 Reads/Sec) |
| Motion Tolarence | 40 IPS |
| Print Contrast (Minimum) | 15 % |
| Scan Angle | Pitch: ±65°, Roll (Tilt): ±45°, Skew (Yaw): ±65° |
| Indicators (LED) |
Beeper (Adjustable Tone); Datalogic ‘Green Spot’ Good-read Feedback on the Code; Good-read LED |
| Resolution (Maximum) | 0.077 mm (3 mils) |
| Decoding Capability | |
| 1D Linear barcodes | Autodiscriminates all standard 1D codes including GS1 Databar™ linear codes |
| Electrical | |
| Input Voltage | 5VDC (±5%) |
| Current | Operation : <165 mA @5V |
| Standby / Idle: <40 mA @5V | |
| Interface | |
| Interfaces | USB (Type-C) |
| Environmental | |
| Ambient Light | 0 - 120,000 lux |
| Operation temperature | 0°C ~ 50°C |
| Storage temperature | -40 °C ~ 70 °C |
| Humidty | 0 ~ %95 (Non Condensing) |
| Drop Resistance | Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface |
| Trigger Resistance | Withstands 3 million hits |
| IP Standard | IP42 |
| ESD Protection (Air Discharge) | 16 kV |
| Physical | |
| Color | Black |
| Dimensions | 156 mm x 67 mm x 107 mm |
| Weight | 123 gr |
| Scanning Distances | |
| Scanning Distances | Code 39 (4 mil) : 2,5 cm ~ 22 cm |
| Code 39 (5 mil) : 2 cm ~ 30 cm | |
| Code 39 (7,5 mil) : 1 cm ~ 45 cm | |
| Code 39 (10 mil) : 1 cm ~ 60 cm | |
| Code 39 (20 mil) : 3 cm ~ 103 cm | |
| EAN/UPCA (13 mil) : 1 cm ~ 68 cm | |
| Utilities | |
| Datalogic Aladdin™ | Datalogic Aladdin configuration program is available for download at no charge. |
| OPOS JavaPOS | JavaPOS and OPOS Utilities are available for download at no charge. |
| Remote Host Download | Remote Host Download lowers service costs and improves operations. |
| Safety and Regulatory | |
| Agency Approvals | The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance | Complies to China and EU RoHS |
| LED Classification | Exempt group according to IEC 62471 |
