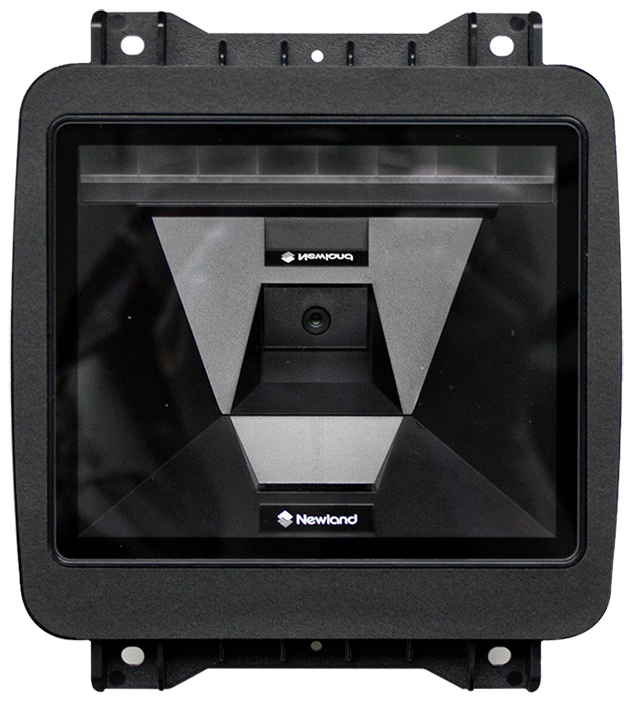

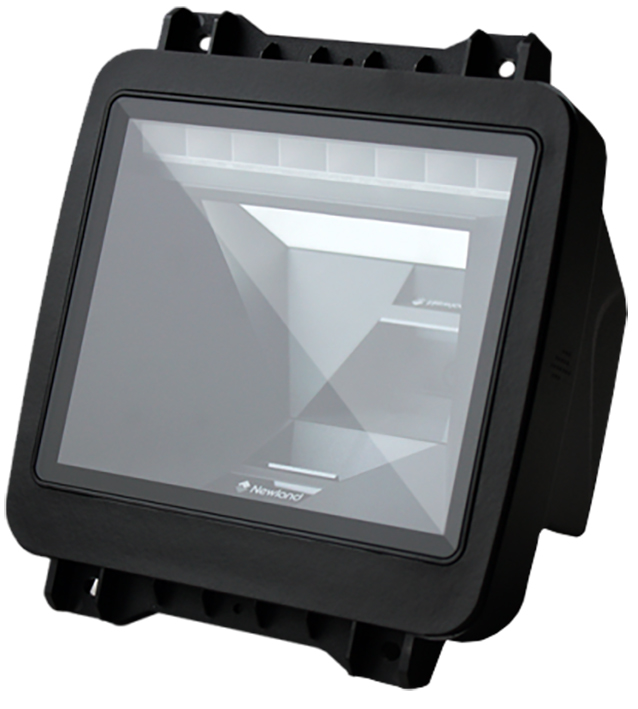

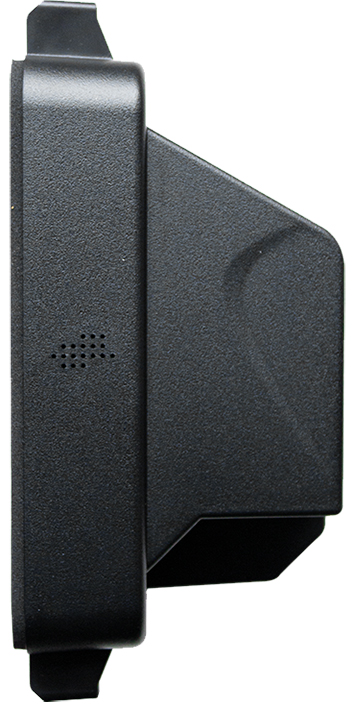

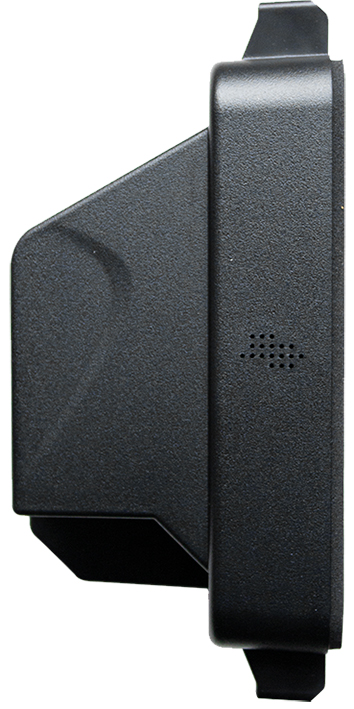

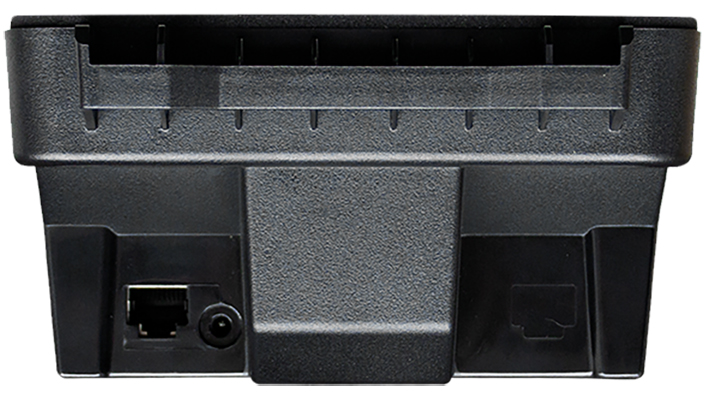

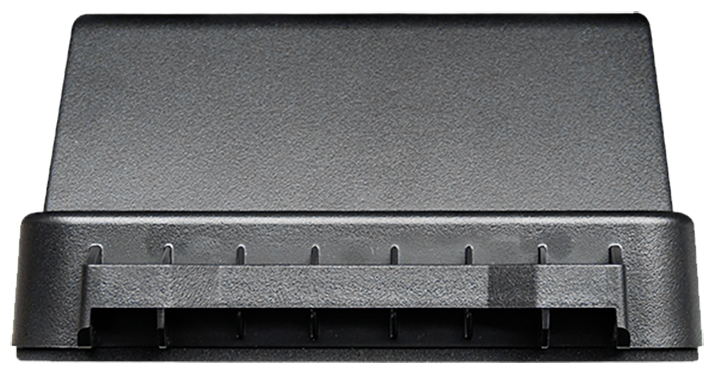

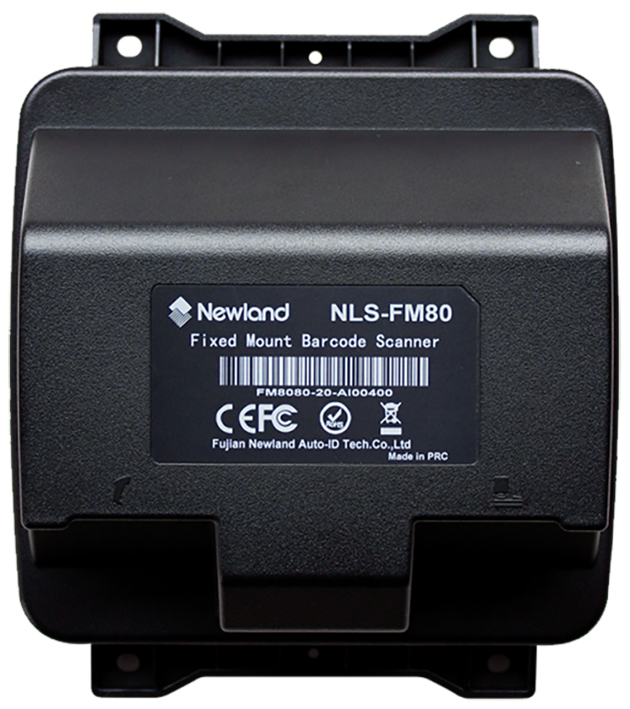

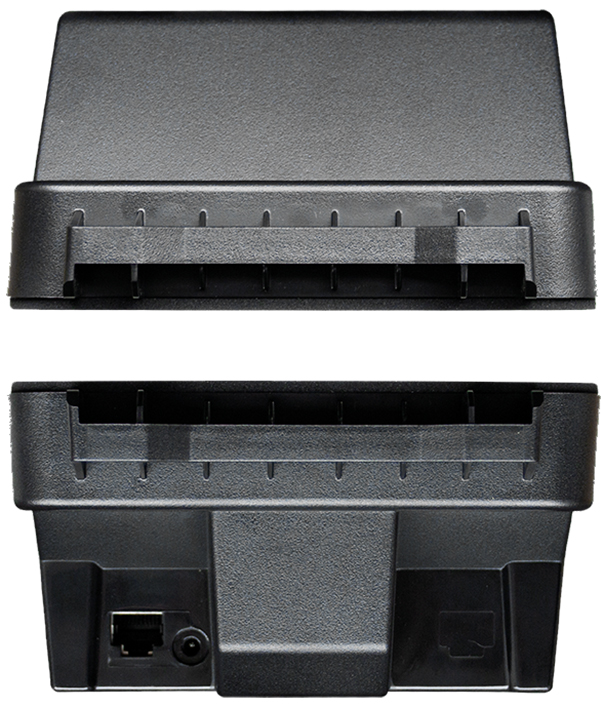

Newland FM8080
(Salmon)
Desktop 1D/2D Barcode Scanner



● 2D / Imager Barcode Reader
● Support 1D and 2D Barcodes
● 1280 x 800 Pixel Sensor
● Reading from LCD Screens
● RS-232C and USB-HID Interfaces

 Performance
 Image Sensor 1280 x 800 Pixel CMOS
 Light Source Illumination: Re LED (614 nm - 624 nm)
 Print Contrast ≥%15
 Scan Mode Advance Sense Mode
 Depth of Field 0 ~ 140 mm
 Scanning angle Pitch: ±55°; Roll: ±360°; Skew: ±55°
 Field Of View Horizontal: 42.4°, Vertical: 36°
 Motion Tolerance 3.5m/s
 Indicators LED and Beep volume
 Supported Interfaces RS-232C and USB-HID
 Physical
 Width 149 mm
 Height 166,5 mm
 Depth 78,5 mm
 Weight 448,3 Gram
 Electrical
 Input Voltage 5VDC (±%5)
 Power Consumption Operation: 2W (typical), 2.5W (Max.)
StandBy: 1.25W
 Current Operation: < 500 mA
StandBy: <100 mA
 Environmental
 Operation temperature -20 °C ~ 60 °C
 Storage temperature -40 °C ~ 70 °C
 Humidty %5 ~ %95 (Non Condensing)
 ESD ±15 KV (air discharge); ±8 KV (direct discharge)
 Sealing IP52
 Certifications
 Certifications FCC Part 15 Class B, CE EMC Class B
 Scanning Capability
 1D Linear Barcodes EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Codabar, UCC/EAN 128, RSS, Interleaved 25, ITF 14, ITF 6, Standard 25, Matrix 25, COOP 25, Industrial 25, Plessey, MSI Plessey, Code 11, Code 93, Code 49, Code 16K etc.
 2D Codes PDF417, QR Code, Data Matrix, Chinese Sensible Code, Micro PDF417, GM Code, Micro QR, Code One etc.
 Accessories
 Certifications USB Cable, 5V DC Power Cable
