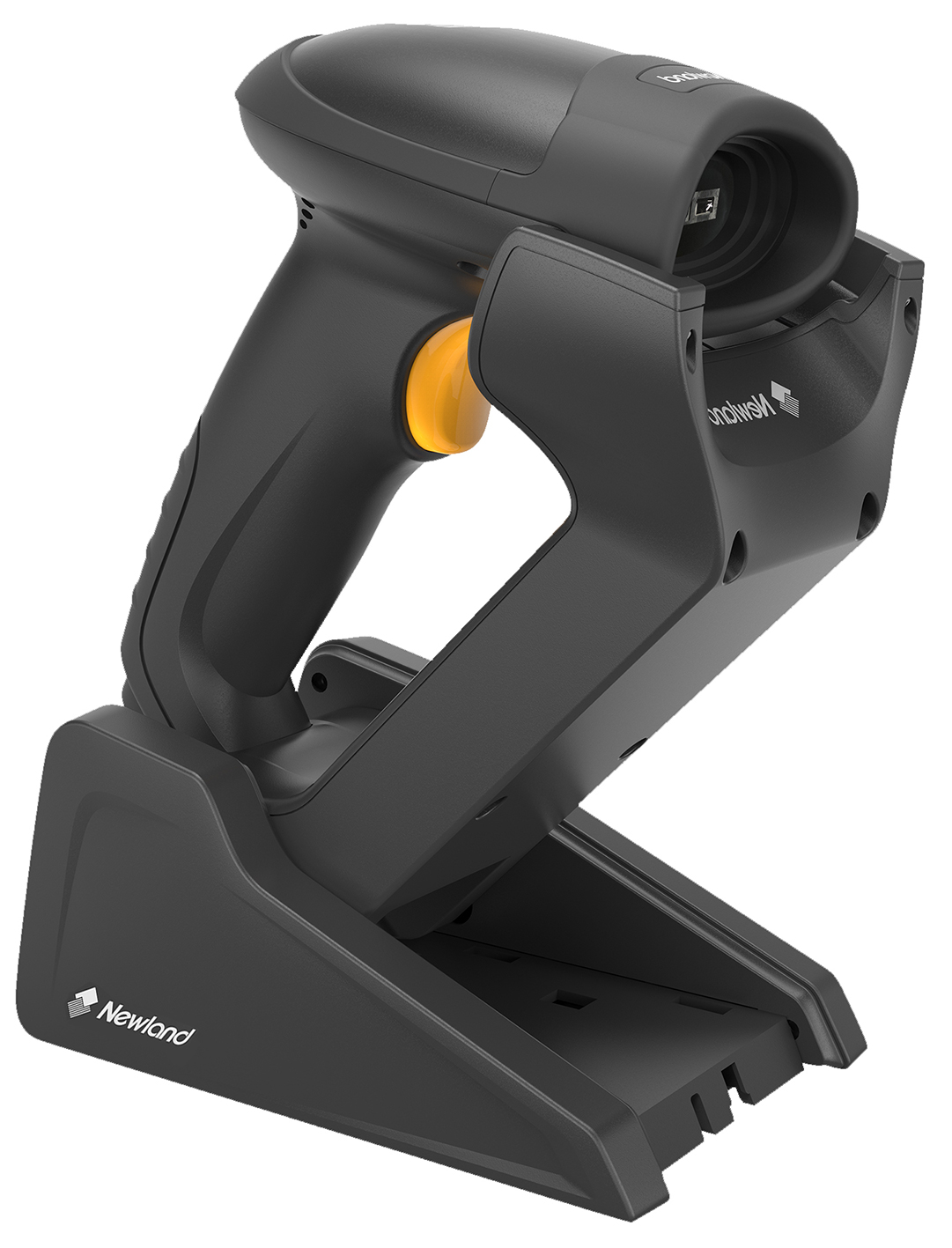

Newland HR1580-BT
(Wahoo II)

1D Wireless Barcode Scanner


● 1D CCD Barcode Scanner
● Wireless (Bluetooth 5.0) Communication
● Operate with a 50-meter data transmission range
● Offline or Online Communication
● RS-232C and USB Interface Options

 Imager Sensor 2500 CCD
 Light source 622 ~ 628 nm Red LED
 Memory Flash 15.000 pcs Code 128 (20 byte of each code 128)
 Scanning Distances 55 mm ~ 550 mm (13 mil EAN13)
90 mm ~ 160 mm (5 mil Code 39)
 Print Contrast ≥%25
 Scan Angle Pitch: ±60°, Skew: ±60°
 Notifications Beep, LED indicator
 Communication Modes Synchronous, asynchronous and batch modes
 Radio Technology Bluetooth 5.0
 Communication Distance Max. 50 metre (Direct Line Of Sight In Open Air)
 Dimensions (Scanner) Height: 159,0 mm
Width: 113,5 mm
Depth: 73,3 mm
 Weight (Scanner) 213 Gram (With Battery)
 Input Voltage DC5V, ≥1.5A
 Battery Type 2200 mAh Li-ion Battery
 Expected Charge Time ≤4 hours
 Expected Battery Life ≥12 hours of continuous operation (scan once per 6 seconds)
 Operation temperature -20°C ~ 50°C
 Storage temperature -40°C ~ 70°C
 Humidty %5 ~ %95 (Non Condensing)
 ESD (Electro Static Discharge) ±8 KV (Air discharge), ±4 KV (Direct Discharge)
 Drop Scanner: 1.5m, Cradle: 1.0m
 IP Standard IP42
 Certifications FCC Part15 Class B, CE EMC Class B
 Decode Capabilities
 1D Barcodes EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey etc.
