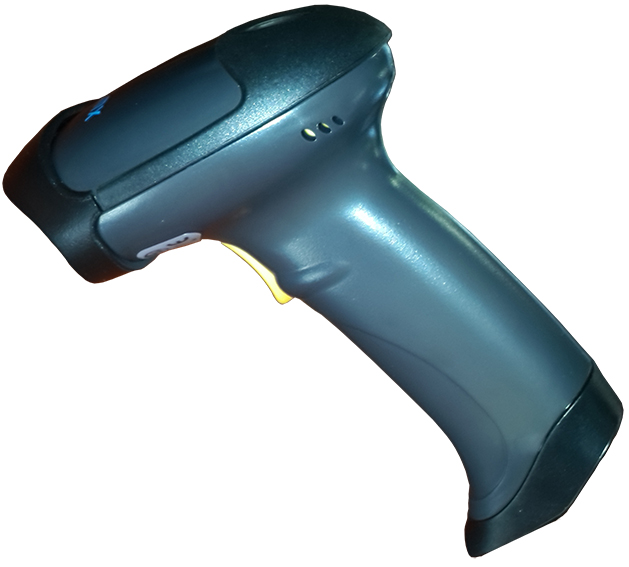

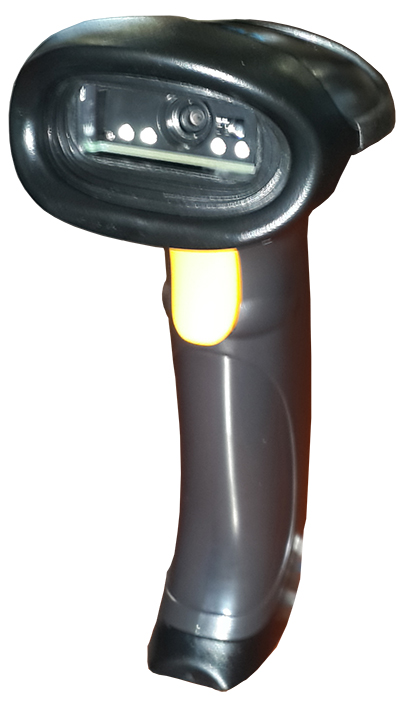

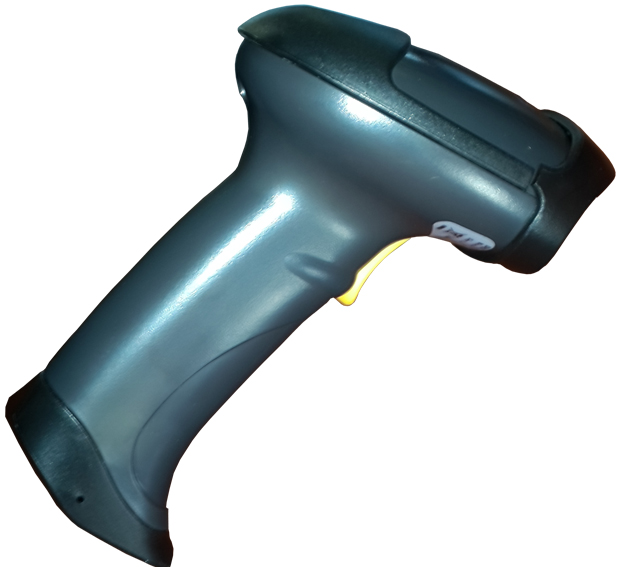

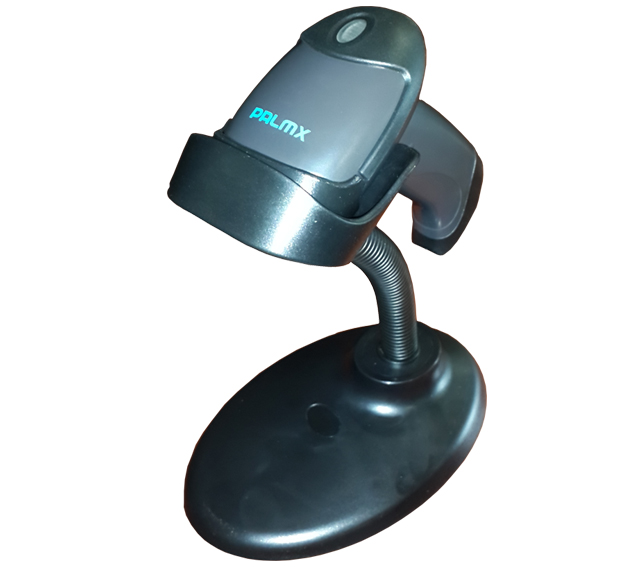

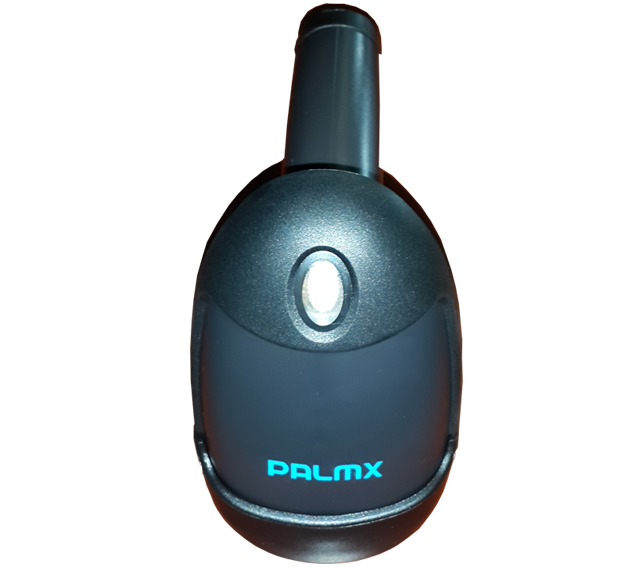

● 2D Imager Scanner
● Light weight, ergonomic design
● 752 X 480 Pixel CMOS Sensor
● 0.127 mm (5 Mil) resolution
● RS-232C and USB Interface
| Operational | |
| Imager Sensor | Wide VGA (752 x 480 Pixel) |
| Light source | 625 nm ± (10 nm) Red LED |
| Minimum Bar Width | 5 Mil (0.127 mm) |
| Scan Distance | 55 - 320 mm (EAN-13, 13 mil) |
| 70 - 155 mm (PDF417, 6.67 mil) | |
| 55 - 175 mm (Datamatrix, 10 mil) | |
| 40 - 160 mm (QrCode, 15 mil) | |
| Scan Angle | Roll: 360° |
| Skew: ±55° | |
| Pitch: ±55° | |
| Symbol Contrast | Min: %30 |
| Indicators (LED) | Beep and LED |
| Interface | RS-232C and USB |
| Physical | |
| Length | - |
| Width | - |
| Height | - |
| Weight | - |
| Cables | - |
| Material | Abs Plastic |
| Color | Black |
| Electrical | |
| Input Voltage | 5 VDC ±%10 |
| Operating Current | Stand By Mod : 35 mA |
| Operation Mod: 160 mA | |
| Environmental | |
| Operation temperature | -20°C ~ 60°C |
| Storage temperature | -40 °C ~ 80 °C |
| Humidty | %5 ~ %85 (Non Condensing) |
| Ambient Light | 0 ~ 100.000 lux (Natural light) |
| Drop Durability | 1,8 Meter |
| Decode Capabilities | |
| Barcode Types | 1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A,UPC-E,Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN,Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5,Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey,MSI-Plessey |
| 2D: PDF 417,Data Matrix(ECC200,ECC000,050,080,100,140),QR Code | |
