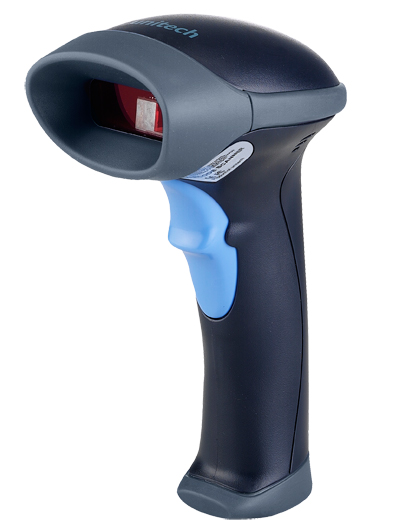

● 1D Barcode Scanner
● Wireless (Bluetooth)Communication
● Max. 10 meter communication range
● 0,1 mm (4 mil) Resolution
● 25 ~ 1143 mm reading distance
● Drop resistance to 1.8 m
● Buffer mode for out-of-range reading
| Optical & Performance | |
| Receiving Device | Laser engine |
| Light Source | Visible Laser Diode 650 nm |
| Max. Resolution | 0.1 mm (4 miles) |
| Scan Rate | 104 scans/second |
| Scan Angle | 47°± 3° (typical), 35°± 3° (narrow) |
| Pitch Angle | ±35 degrees |
| Printing Contrast Scale | 20% Minimum |
|
Reading Distance (DOF PCS=90%) |
Code 39, 4 mil : 2,5 cm ~ 13,9 cm |
| Code 39, 5 mil : 3,18 cm ~ 20,32 cm | |
| Code 39, 7,5 mil : 3,81 cm ~ 33,02 cm | |
| Code 39, 10 mil : 3,81 cm ~ 45,72 cm | |
| Code 39, 13 mil : 3,81 cm ~ 60,96 cm | |
| Code 39, 15 mil : 3,81 cm ~ 71,12 cm | |
| Code 39, 20 mil : 4,45 cm ~ 83,82 cm | |
| Code 39, 40 mil : ~ 91,44 cm | |
| Code 39, 55 mil : ~ 114,3 cm | |
| Functionality | |
| Operation Mode | Trigger Mode, Flash Mode, Continuous Mode, Buffer mode |
| Symbologies |
Code 39, Full ASCII Code39,
Interleave 2 of 5, Standard 2 of
5, China Postal, UPC, Delta Code, MSI, Plessy, Codabar, Code 11, EAN8/13, Code 93,Code 128, EAN128, Code32, Italian Pharmacy, LabelCode,GS1 databar code |
| Data Formatting | Prefix, Suffix, Code ID, Reformatting Date |
| Electrical | |
| Operation Voltage | DC 3V ~ 5V |
| Current Consumption | Operation mode:<170mA |
| Standby mode:<30mmA | |
| Battery Type | Lithium-ion |
| Battery Capacity | 1620mAh charged via the cradle |
| Battery Charging time | Fully charged in 4.5 hours |
| Operating Time | Over 10 hours |
| Mechanical | |
| Scanner Dimension | Height:176 mm, Width:74 mm, Length:89 mm |
| Scanner Weight | 206 gr |
| Cradle Dimension | Yükseklik: 73 mm, Genişlik:95 mm, Uzunluk: 200 mm |
| Environmental | |
| ESD Protection | Functional after 8K Contact and 12K Air |
| Mechanical Shock | 1.8M onto concrete |
| IP rate | IP42 |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -30°C to 70°C |
| Relative Humidity | 5% to 90% non-condensing |
| Communication | |
| Radio Frequency | Unlicensed 2.4GHz |
| Protocol | Wireless, SPP & HID profiles |
| Range | 10 m (Line of sight) |
| Host Interface supported | USB |
| Regulation Approvals | |
| Regulation Approvals | CE,FCC,BSMI,VCCI |
| Accessories | |
| Accessories | Cradle |
| Battery pack | |
| Power adapter | |
| Interface cable | |
| Dongle (USB) | |
