Unitech TB-100
Android Industrial/Enterprise Tablet

● Android™ v3.2 operation systems
● NVIDIA® Tegra™ 2 1.0 GHZ Dual Core Proccessor
● 1 GB DDR-RAM, 16 GB eMMC Flash ROM
● 7 Inch (1280 x 800 pixel) TFT LCD Display
Wifi, Bluetooth, RFID, GPRS (3,5G), GSM, GPS  technology
● 1,2 mt  drop resistance
● IP65 Protection Class
● 2 MP/5MP Camera

 Micro Processor NVIDIA® Tegra™ 2 dual core 1 Ghz Micro Processor
 Memory 1 GB DDR2 SDRAM
 Operation System Android™ v3.2
 Storage 16 GB eMMC Flash ROM
 Navigation GPS
Digital compass
 Other Light Sensor
3-axis digital gyroscope
Vibration motor
 Display Type 7" (Inch) WXGA Multi-Touch 16:10 TFT LCD
 Resolution 1280 x 720 Pixel
 Color 262K
 Dot Size Horizontal: 0.117755 x Vertical: 0.117755
 Luminance 400 cd/m
 View Angle Horizontal: 178° (Typical), Vertical: 178° (Typical)
 Touch Screen
 Type Gorilla 7H hardness Glass, Projected Capacitive Multi-Touch Panel
 Light Transmission >=87%
 Front 1.2 Mp
 Rear 5 Mp AF
 WLAN 802.11 b/g/n
 PAN Bluetooth 2.1 + EDR
 WWAN 3.75G HSPA+:21Mbps(DL)/5.76Mbps(UL), UMTS/ HSDPA/ HSUPA/ PA+850/ 900/ 1900/ 2100 MHz
 AC/DC Adapter AC Power Input: 100V-240V, 50Hz-60Hz, 12V/2A, 24W
DC Power Output: 12V/2A
 Main Battery Li-Polymer Battery (27Whr)
 Battery Life 6 Hours
 Dimensions 136,6 mm x 218 mm x 21 mm
 Weight 560 Gram (Wifi Model), 570 Gram (3G Model)
 Operating temperature -20°C to 60°C
 Storage temperature -55°C to 75°C
 Relative Humidity %10 ~ %95 (Non-Condensing)
 Drop test to Concrete 1,2 meter
 Environmental Sealing IP65
 Vibration and Shock test Meets Mil Std 810G-514.6,Procedure I Cat. 24, Fig. 514.6E-1 & 514.6E-2 (Unit is non-operating) ASTM 4169-99 Truck Assurance Level II, Schedule E (Unit is operating
 ESD Air +/- 8KV, Contact +/- 4KV

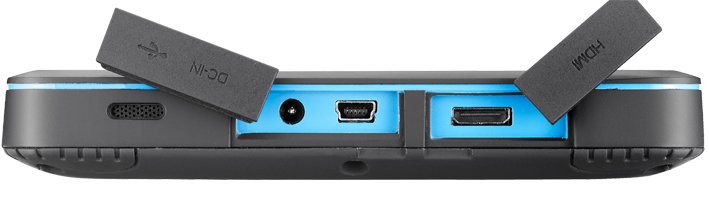

 I/O Ports
 I/O Ports DC-IN Jack x 1
Mini USB Port x 1
Mini HDMI Port x 1
Micro SD Card Slot x 1
3.5-mm stereo headphone jack x 1
Built-in Speaker & Microphone
 Regulatory Approvals
 Regulatory Approvals CE/ FCC Class B/ UL.RoHS compliance
 Accessories Vehicle Cigarette Charger
MS910 Pocket Scanner
Power Cord
