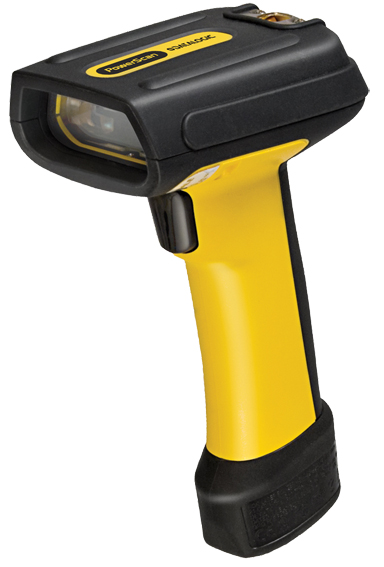

Datalogic PowerScan PD7100
Industrial 1D Barcode Scanner


● Corded Industrial Barcode Scanner
● Decodes 1D, stacked codes and postal codes
● 0,076 mm (3 mil) resolution
● Water and particulate sealing rating:IP65
● Drop resistance to 2.0 m
● Ability to work even at -30°C
● Multi Interface Support

 Decoding Capability
 1D Linear Barcodes Autodiscriminates all standard 1D codes including GS1 Databar™ linear codes
 Postal Codes China Post
 Stacked Codes GS1 DataBar Expanded Stackedi GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional
 Input Voltage 4 - 14 VDC
 Current Operating: 285 mA @ 5 VDC
Standby/Idle: 135 mA @ 5 VDC
 Light Levels 0 ~ 100.000 Lux
 Drop Durability 2 meter
 ESD Protection (Air Discharge) 25 kV
 Humidty %5 ~ %95 (Non Condensing)
 Operation temperature -30°C ~ 50°C
 Storage temperature -40 °C ~ 60 °C
 IP Standard IP65
 Supported Interfaces IBM 46xx, Keyboard Wedge, OEM (IBM) USB, RS-232, USB
 Dimensions 203 mm x 76 mm x 114 mm
 Weight Reader: 280 gr
 Color Black or Yellow/Black
 Reading Performance
 Light Source Aiming: 630 - 680 nm VLD
Illumination: LED Array 630 - 670 nm
 Print Contrast Ratio (Min.) 15%
 Reading Angle Pitch: ±65°; Roll (Tilt): 30°; Skew (Yaw): ±65°
 Reading Indicators Beeper (Adjustable Tone),Datalogic ‘Green Spot’ Good Read Feedback, Good Read LED
 Resolution (Max.) 0.076 mm (3 mils)
 Scanning Distances
 Scanning Distances 5 mil: 1,5 cm ~ 14 cm
7,5 mil: 0 cm ~ 44 cm
10 mil: 0 cm ~ 60 cm
20 mil: 0 cm ~ 119 cm
40 mil: 0 cm ~ 240 cm
Reflective-55 mil: 0 cm ~ 300 cm
Reflective-100 mil: 0 cm ~ 530 cm
 Safety and Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
 Environmental Compliance Complies to China end EU RoHS
 Laser Classification Caution Laser Radiation - Do not stare into beam EN 60825-1 Class 1
 Datalogic Aladdin™ Datalogic Aladdin configuration program is available for download at no charge
 Remote Host Download Lowers service costs and improves operations.
