Cordless Communication |
|
Datalogic Star Cordless System |
Point to Point Configuration |
|
Mult Point Configuration |
|
Seamless Roaming |
|
Two Way Communications |
|
Effective Radiated Power |
<10 mW (433.92 MHz) |
|
<1 mW (910 MHz) |
|
Max. Readers in Same Area |
Max. 2000 |
|
Max. Readers per Radio Receiver |
Max. 32 |
|
Radio Frequency |
433.92 MHz or 910 MHz |
|
Radio Range (Open Air) |
Max. 50 metre (433,92 Mhz) |
|
Max. 30 metre (910 Mhz) |
|
Decoding Capability |
|
|
1D Linear Barcodes |
Autodiscriminates all standard
1D codes including GS1
Databar™ linear codes |
|
Stacked Codes |
Code 16K, Code 49, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectiona |
|
Electrical |
|
|
Battery Type |
2150 mAH Lityum-Ion |
|
Charge Time |
External Power : 4 Hours |
|
Host Power :10 Hours |
|
Reads per Charge |
60.000 + |
|
Input Voltage |
10-30 VDC, POT:5 VDC
±%10 |
|
Current |
Operating:
1A
@ 10 VDC, 330 mA @30 VDC, POT: 500 mA |
|
Cradle Indicator LEDs |
RED: Battery Charging |
|
Green: Charge Completed |
|
Yellow: Power/Data |
|
Environmental |
|
|
Light Levels |
Immune to light exposure in offices/facilities and direct exposure to sunlight |
|
Drop Durability |
2 meter |
|
ESD Protection (Air
Discharge) |
20
kV |
|
Humidty |
Max: %90 (Non Condensing) |
|
Operation temperature |
-20°C ~ 50°C |
|
Storage temperature |
-20 °C ~ 70 °C |
|
IP Standard |
PM8300: IP65, PM8300-D, PM8300-DK: IP64 |
|
Interfaces |
|
Supported Interfaces |
Keyboard Wedge, RS-232, RS-485 (BC8060 Only), USB, Wand (Multi-Interface) |
|
Physical Characteristics |
|
|
Color |
Black or Yellow/Black |
|
Dimensions |

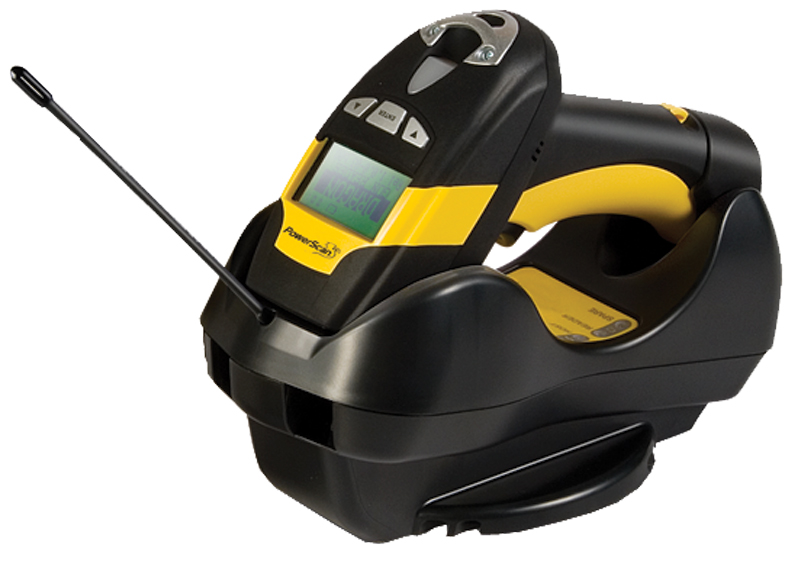

Cradle: 240 mm x 108 mm x 95 mm |
|

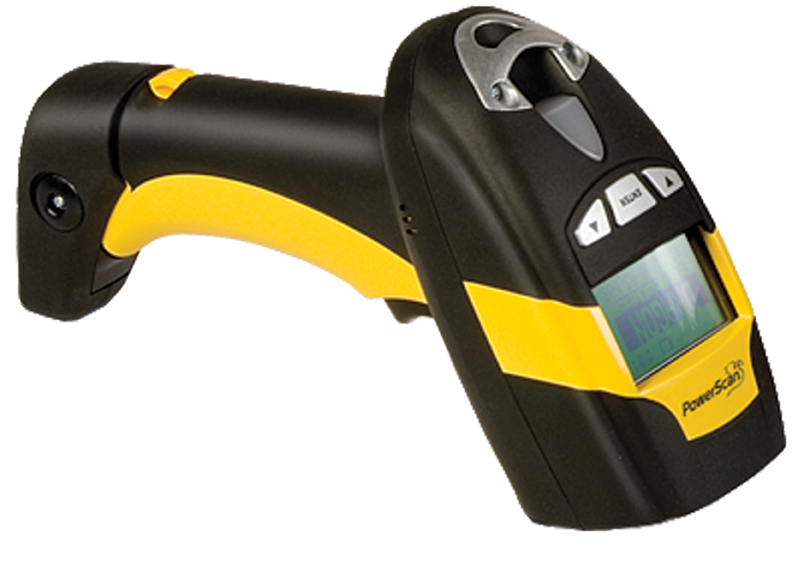

PM8300: 207 mm x 114 mm x 69 mm |
|
PM8300-D and PM8300-DK: 210 mm
x 114 mm x 69 mm |
|
Display |
PM8300: No Display |
|
PM8300-D and PM8300-DK : Graphic with backlight |
|
Font Dimensions:
4 Line x 16 Columns |
|
Screen Dimensions: 32 x 96 pixel |
|
Keypad |
PM8300: No Keypad |
|
PM8300-D: 3 Key |
|
PM8300-DK: 16 Key |
|
Weight |
Cradle: 380 gr |
|
Reader
: 395 gr |
|
Reading
Performance |
|
Light Source |
630 - 680 nm VLD |
|
Aiming: 630 - 680 nm VLD (Activated by ‘Double-Click’ Trigger) |
|
Print Contrast Ratio (Min.) |
15% |
|
Read Rate |
35±5
Scan / Sec |
|
Reading Angle |
Pitch: ±65°; Roll (Tilt): 30°; Skew (Yaw): ±65° |
|
Reading Indicators |
Beeper (Adjustable Tone and Volume), Datalogic Three Green Lights (3GL™) Good Read Feedback, Datalogic ‘Green Spot’ on the Code, Dual Good Read LEDs, Good Transmission |
|
Resolution (Max.) |
PM83X0: 0.076 mm (3 mils), PM83X0 Auto Range: 0.190 mm (7.5 mils) |
|
Scanning Distances |
|
|
PM8300 |
5 mil: 21 mm ~ 133 mm |
|
7,5 mil: 35 mm ~ 242 mm |
|
10 mil: 29 mm ~ 428 mm |
|
13 mil: 23 mm ~ 551 mm |
|
20 mil: 63 mm ~ 785 mm |
|
40 mil: 25 mm ~ 978 mm |
|
PM8300 AR |
7,5 mil: 180 mm ~ 500 mm |
|
10 mil: 180 mm ~ 850 mm |
|
15 mil: 150 mm ~ 1650 mm |
|
20 mil: 120 mm ~ 2100 mm |
|
40
mil: 180 mm ~ 3750 mm |
|
55 mil: 250 mm ~ 4850 mm |
|
Reflective-100 mil: 1,5 mt ~
12,5 mt |
|
Safety and Regulatory |
|
|
Agency Approvals |
The product meets necessary
safety and regulatory approvals
for its intended use. The Quick
Reference Guide for this product
can be referred to for a
complete list of certifications. |
|
Environmental Compliance |
Complies to EU RoHS |
|
Laser Classification |
Caution Laser Radiation - Do not stare into beam, CDRH Class II, EN 60825-1 Class 2 |
|
Utilities |
|
|
Datalogic Aladdin™ |
Datalogic Aladdin configuration program is available for download at no charge |
