● Support 1D,2D,Postal Codes,Dot Code,Stacked Codes and Digimarc Codes
● 1280 x 800 Pixel Imager Sensor
● Wireless Technology (Bluetooth) with up to 50 m (164 ft) range
● ‘Green Spot’ for good-read feedback plus the 4-dot Aimer
● Ability to read even on phone and computer screens
● Compatible IP52 Standart
● 1.5 meter drop resistant
● USB Type-C Cable
| Cordless Communication | ||
| Protocol | Bluetooth 4.0 (Class 1) | |
| Frekans | 2,4 Ghz | |
| Profil | SPP (Serial Port Profile) | |
| Security | Data Encryption, Scanner Authentication | |
| Communication Distance | Max. 50 m (164 ft) (Open Air) | |
| Interfaces | ||

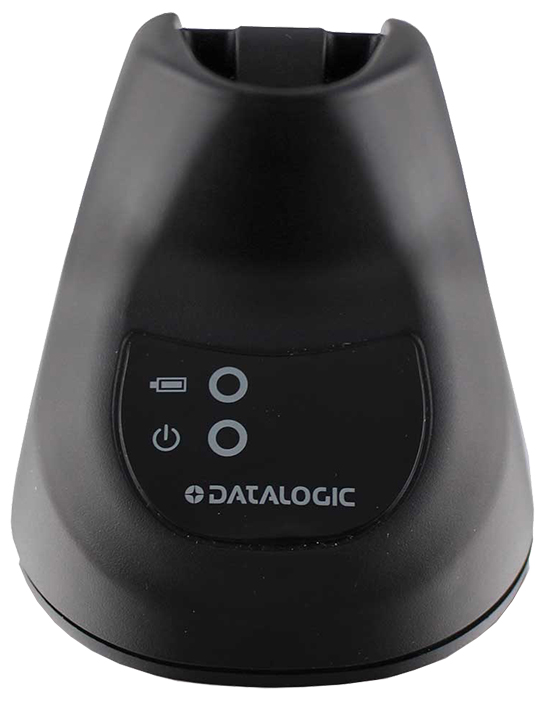

| Cradle (BC2090) | USB Type C / USB / RS-232 Multi-Interface | |
| Reading Performance | ||
| Image Sensör | 1 Megapixel (1280 x 800 pixels) | |
| Light source | Aiming: Blue LED emission 460 nm | |
| Illumination: : Red LED emission 617 nm | ||
| Image Capture | Graphic Formats: BMP, JPEG, TIFF | |
| Illumination: : Red LED emission 617 nm | ||
| Motion Tolerance | 25 IPS | |
| Print Contrast (Minimum) | 25% | |
| Scan Angle | Pitch: ±65°; Roll (Tilt): ±360°, Skew (Yaw): ±65° | |
| Indicators (LED) | Beeper (Adjustable Tone and Volume), Datalogic ‘Green Spot’ Good-read feedback on the code, Good-read LED | |
| Resolution | 1D Linear: 0.077 mm (3 mils) | |
| PDF417: 0.077 mm (3 mils) | ||
| Data Matrix: 0.127 mm (5 mils) | ||
| QrCode: 0.17 mm (6.7 mils) | ||
| Decoding Capability | ||
| 1D Linear barcodes | Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. | |
| 2D Kodlar | Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR Code, QR Code, Dot code | |
| Postal Codes | Australian Post, British Post, China Post, IMB, Japanese Post,KIX Post, Planet Code, Postnet, Royal Mail Code (RM4SCC) | |
| Stacked Codes | EAN/JAN Composites, GS1 DataBar Composites, GS1DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF, MicroPDF417, PDF417, UPC A/E Composites | |
| Digital Watermarking | Digimarc Barcodes | |
| Scanning Distances | ||
| 1D | Code 39: 5 mils: 0,5 cm ~ 25 cm | |
| Code 39: 10 mils: 0.5 cm ~ 38 cm | ||
| EAN/UPC-A: 13 mils: 0,5 cm ~ 51 cm | ||
| 2D | PDF417: 6.7 mils: 0,5 cm ~ 21 cm cm | |
| QR Code: 20 mils: 0 cm ~ 37 cm | ||
| Data Matrix: 10 mils: 0.5 cm ~ 21.5 cm | ||
| Physical | ||
| Dimensions | Scanner: 159 mm x 68 mm x 107 mm | |
| Cradle (BC2090): 148 mm x 68 mm x 126 mm | ||
| Weight | 206,5 gr (Battery Included) | |
| Color | Black | |
| Electrical | ||
| Battery | Battery Type: Lithium-Ion: 3250 mAh | |
| Charge Time | 3 Hours @ USB Type-C (Scanner Only) | |
| 4 Hours @ 12 VDC (External Power) | ||
| Reads per Charge | 115.000 | |
| Current | Charging (Typical): Scanner only: 500mA @ 3.7 V (Operative) Cradle only (BC2090): 45 mA @ 5 V (Operative) | |
| Input Voltage | 5V+/-5% (Scanner) in Type-C Port 4.5 – 14 VDC +/- 5% (Cradle BC2090) | |
| Environmental | ||
| Light Levels | 0 ~ 110.000 Lux | |
| Temperature | Operating | 0°C ~ 50°C |
| Storage | -40 °C ~ 70 °C | |
| Humidty | %5 ~ %95 (Non Condensing) | |
| Drop Durability | 1,5 meter | |
| Trigger Resistance | Withstands 10 Mhits | |
| IP Standard | IP52 | |
| ESD Protection (Air Discharge) | 16 kV | |
| Scanning Distances | ||
| Scanning Distances |
5 mils : 2.5 to 15.0 cm 7.5 mils : 0 to 24.0 cm 10 mils: 0 to 35.0 cm 13 mils: 0 to 40.0 cm 20 mils: 0 to 60.0 cm |
|
| Safety and Regulatory | ||
| Agency Approvals | The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications. | |
| Environmental Compliance | Complies to China end EU RoHS | |
| Led Classification | Illuminator Exempt group, Aiming Risk Group 1 according to IEC 62471 | |
| Utilities | ||
| Datalogic Aladdin | Datalogic Aladdin configuration program is available for download at no charge | |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge. OPOS Utilities are available for download at no charge. |
|
| Remote Host Download | Lowers service costs and improves operations | |
