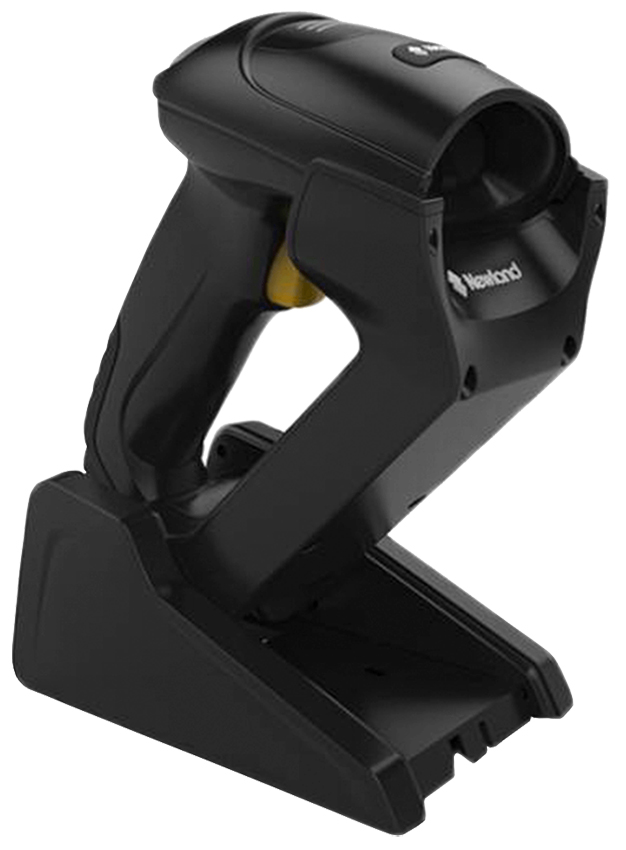

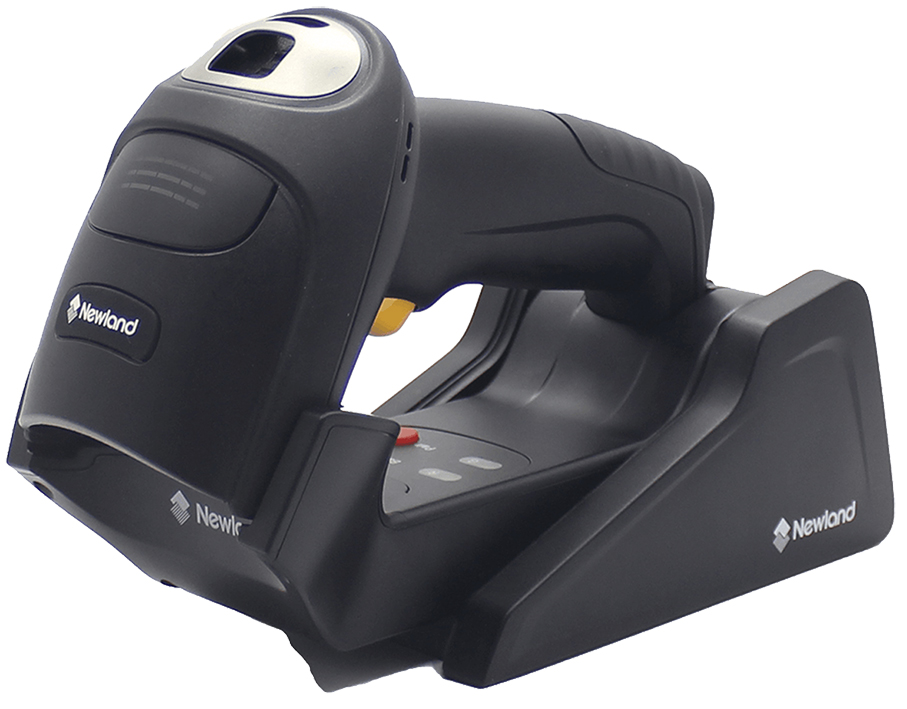

Newland HR5280-BT
(Bonito)

2D Wireless Barcode Scanner
(Logistic Version)



● 2D Imager Barcode Scanner
● 1280 x 800 Piksel Imager Sensor
● Wireless (Bluetooth 5.0) Communication
● Operate with a 50-meter data transmission range
● Schockproof to 1,8 meters
● RS-232C and USB Interface Options

 Performance
 Imager Sensor 1280 x 800 Pixel CMOS
 Light source Illumination: White LED
Aiming: 650 nm Laser Diod
 Motion Tolerance Max. 50 cm/s
 Scanning Angle Pitch: ±55°; Roll: ±360°; Skew: ±55°
 Field of View Horizontal Horizontal: 48°, Vertical: 28°
 Indicators (LED) LED and Beep volume
 Memory 15.000 Pcs Code 128 (20 Byte of each Code 128)
 Print Contrast ≥%20
 Interfaces RS-232C ve USB
 Communication
 Radio Technology Bluetooth 5.0
 Communication Distance Max. 50 metre (Direct Line Of Sight In Open Air)
 Operating Modes Automatic Batch or Manual Batch
 Physical
 Dimensions (Scanner) Height: 172,5 mm
Width: 77,5 mm
Length: 95,5 mm
 Weight (Scanner) 227 Gram (Without Battery)
 Electrical
 Input Voltage 5V DC (±5%)
 Battery Type 2200 mAh Li-ion Battery
 Expected Charge Time ≤4 hours
 Expected Battery Life ≥12 hours of continuous operation (scan once per 6 seconds)
 Environmental
 Operation temperature -20°C ~ 50°C
 Storage temperature -40°C ~ 70°C
 Humidty %5 ~ %95 (Non Condensing)
 ESD (Electro Static Discharge) ±15 kV (air discharge), ±8 kV (direct discharge)
 Drop Scanner: 1.8m. Cradle: 1.0m
 IP Standard IP54
 Certifications
 Certifications FCC Part15 Class B, CE EMC Class B
 Decode Capabilities
 1D Barcodes EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey etc.
 2D Barcodes PDF417, QR Code, Data Matrix, Aztec, Maxicode etc.
 Scanning Distances
 1D Barcodes EAN-13 (13 Mil) 30 mm ~ 550 mm
Code 39 (5 Mil) 90 mm ~ 230 mm
 2D Barcodes PDF417 (6,67 Mil) 110 mm ~ 220 mm
Datamatrix (10 Mil) 100 mm ~ 220 mm
QrCode (15 Mil) 30 mm ~ 370 mm
