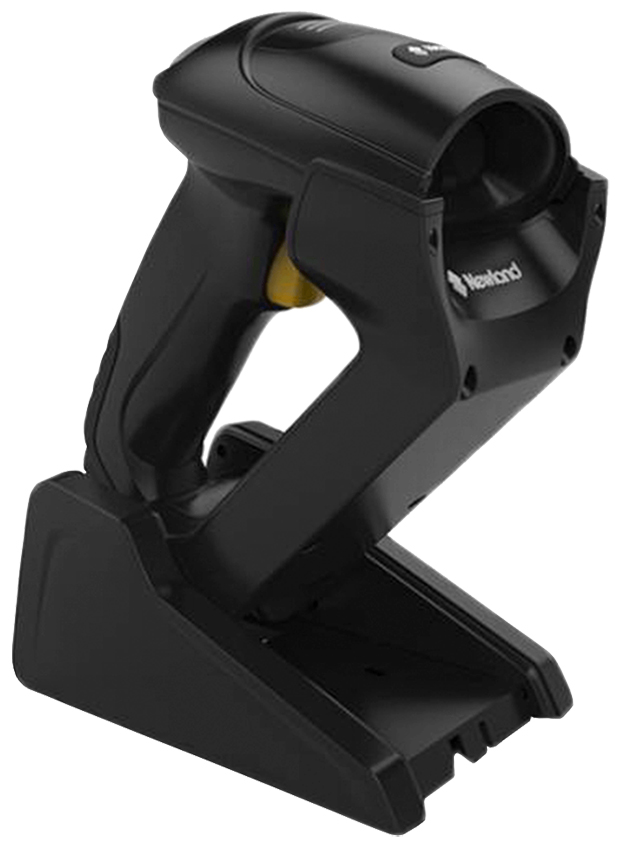

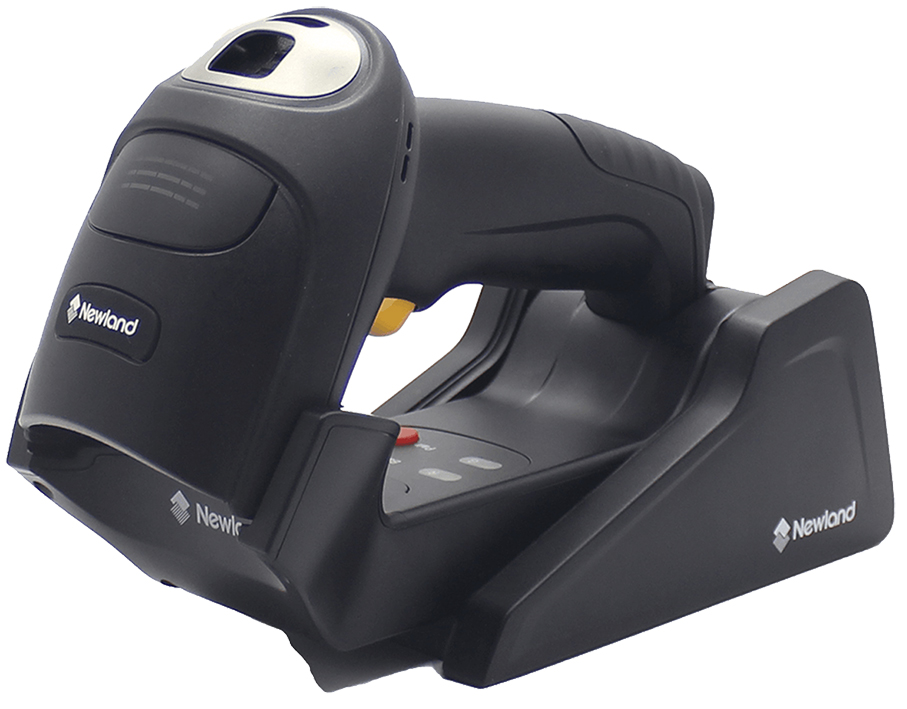

Newland HR3280-BT
(Marlin II)

2D Wireless Barcode Scanner


● 2D Imager Barcode Scanner
● 1280 x 800 Piksel Imager Sensor
● Wireless (Zigbee) Communication
● Operate with a 50-meter data transmission range
● 0.127 mm (5 Mil) resolution
● RS-232C and USB Interface Options

 Imager Sensor 1280 x 800 Pixel CMOS
 Light source Illumination: Red / White LED
Aiming: Green LED
 Motion Tolerance Max. 50 cm/s
 Scanning Angle Pitch: ±55°; Roll: ±360°; Skew: ±55°
 Field of View Horizontal Horizontal: 39°, Vertical: 24°
 Indicators (LED) LED and Beep volume
 Memory 15.000 Pcs Code 128 (20 Byte of each Code 128)
 Print Contrast ≥%25
 Interfaces RS-232C ve USB
 Radio Technology Bluetooth 5.0
 Communication Distance Max. 50 metre (Direct Line Of Sight In Open Air)
 Operating Modes Synchronous, Asynchronous and Batch modes
 Dimensions (Scanner) Height: 159 mm
Width: 113,5 mm
Depth: 73,3 mm
 Weight (Scanner) 217 Gram (Without Battery)
 Input Voltage 5V DC (±5%)
 Battery Type 2200 mAh Li-ion Battery
 Expected Charge Time ≤4 hours
 Expected Battery Life ≥12 hours of continuous operation (scan once per 6 seconds)
 Operation temperature -20°C ~ 60°C
 Storage temperature -40°C ~ 70°C
 Humidty %5 ~ %95 (Non Condensing)
 ESD (Electro Static Discharge) ±8KV (air discharge); ±4KV (direct discharge)
 Drop Scanner: 1,5 m, Cradle: 1 m
 IP Standard IP42
 Certifications FCC Part15 Class B, CE EMC Class B
 Decode Capabilities
 1D Barcodes EAN-8, EAN-13, UPC-E, UPC-A, Code128, Coupon, UCC/EAN128, CodaBar, I2Of5, Febraban, ITF14, ITF6, Matrix 25, Code39, Code93, ISSN, ISBN, Industrial 25, Standard 25, China Posy 25, Plessey, Code 11, MSI Plessey, UCC/EAN Composite, GS1 Databar, Code 49, Code 16K, AIM 128, ISBT 128
 2D Barcodes PDF417, MicroPDF417, QR Code, Micro QR Code, Aztec, Data Matrix, Chinese Sensible Code, Maxicode
 Scanning Distances
 1D Barcodes EAN-13 (13 Mil) 50 mm ~ 495 mm
Code 39 (5 Mil) 85 mm ~ 220 mm
 2D Barcodes PDF417 (6,67 Mil) 70 mm ~ 215 mm
Datamatrix (10 Mil) 50 mm ~ 220 mm
QrCode (15 Mil) 20 mm ~ 325 mm
