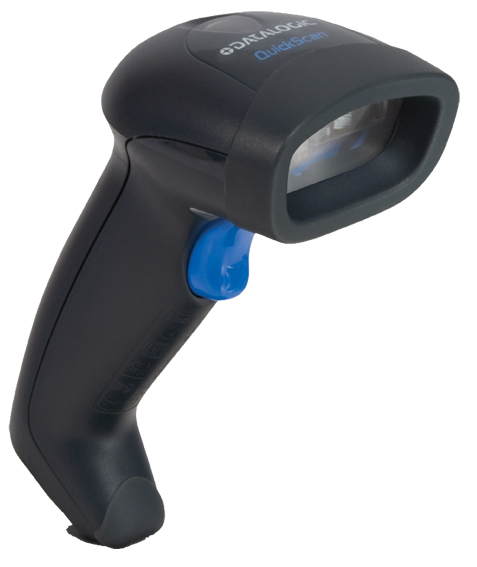

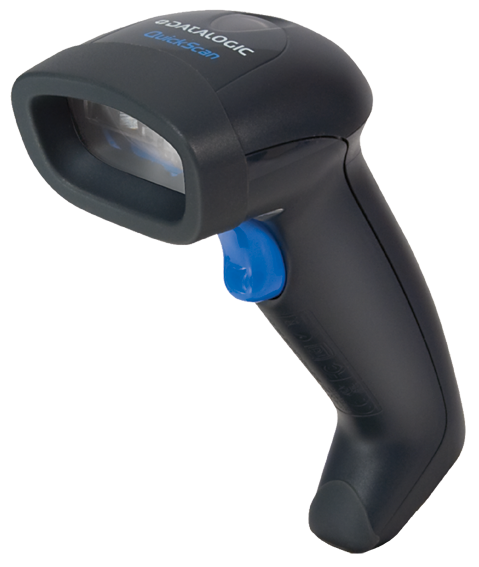

● 1D Imager barcode Scanner
● Light weight, ergonomic design
● 270 Scan per second
● 0,1 mm (4 mil) resolution
● 8 ~ 650 mm scanning distance
● "Green Spot" Light For Good Read Feedback
● IP42 Standard
● Schockproof to 1,5 meters
| Reading Performance | |
| Light source | 610-650 nm Red Led |
| Print Contrast (Minimum) | 15% |
| Scan Rate | 270 Scan/Sec |
| Scan Angle | Pitch: +/- 65°; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 70° |
| Indicators (LED) | Adjustable Beeper Tone , Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED; Good Transmission |
| Resolution | 0.102 mm (4 mil) |
| Scanning View | 56° +/- 2° |
| Decoding Capability | |
| 1D Linear barcodes | Autodiscriminates all standard 1D codes including GS1 Databar™ linear codes |
| Postal Codes | China Post |
| Stacked Codes | GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional |
| Electrical | |
| AC Power requirements | QD2130: 5 VDC ± 10V |
| QD2110 : 4-14 VDC ± 10V | |
| Power consumption | Operation Mod: 340 mA @5VDC |
| Standby Mod: 190 mA @5VDC | |
| Interfaces | |
| Support Interface | QD2110 : RS-232 / IBM 46XX / USB (Multi Interface) |
| QD2130: RS-232 / USB / Keyboard Wedge / Wand (Multi Interface) | |
| Physical | |
| Height | 170 mm |
| Depth | 66 mm |
| Width | 71 mm |
| Weight | 121,9 gr |
| Color | Black |
| Environmental | |
| Light Levels | 100.000 Lux |
| Operation temperature | 0°C ~ 50°C |
| Storage temperature | -40 °C ~ 70 °C |
| Humidty | %5 ~ %95 (Non Condensing) |
| Drop Durability | 1,5 meter |
| IP Standard | IP42 |
| ESD Protection (Air Discharge) | 16 kV |
| Scanning Distances | |
| Scanning Distances | 4 mil: 20 mm ~ 110 mm |
| 5 mil: 15 mm ~ 150 mm | |
| 7,5 mil: 8 mm ~ 250 mm | |
| 10 mil: 8 mm ~ 380 mm | |
| 13 mil: 19 mm ~ 450 mm | |
| 20 mil: 25 mm ~ 650 mm | |
| Safety and Regulatory | |
| Agency Approvals | The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance | Complies to China end EU RoHS |
| LED Clasification | IEC 60825-1 Class 1 LED Product |
| Utilities | |
| Datalogic Aladdin | Datalogic Aladdin configuration program is available for download at no charge |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge. OPOS Utilities are available for download at no charge. |
| Remote Host Download | Lowers service costs and improves operations |
