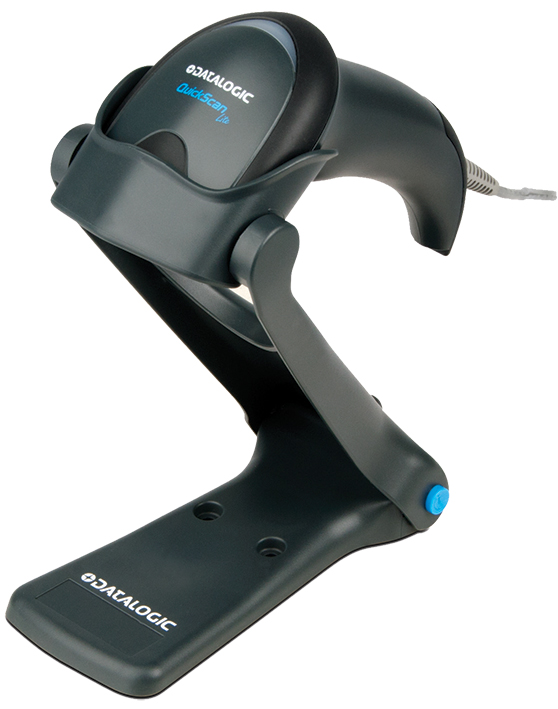

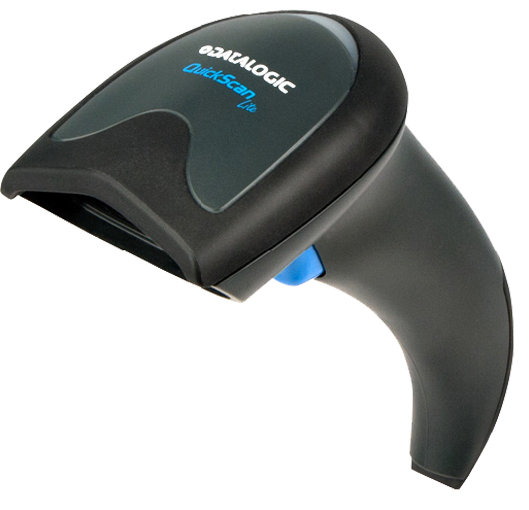

Datalogic QuickScanLite QW2100
Imager Barcode Scanner


● 1D Imager barcode Scanner
● Light weight, ergonomic design
● 400 Scan per second
0,1 mm (4 mil) resolution
● 25 ~ 600 mm scanning distance
● Laser-like thinner and extended scan line
● IP42 Standart
● Schockproof to 1,5 meters

 Reading Performance
 Light source 610-650 nm Red Led
 Print Contrast (Minimum) 25%
 Scan Rate 400 Scan/Sec
  Scan Angle Pitch: +/- 65°; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 70°
 Indicators (LED) Adjustable Beeper Tone , Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED; Good Transmission
 Resolution 0.102 mm / 4 mil (1D Codes)
 Scanning View 56° +/- 2°
 Height 170 mm
 Depth 65 mm
 Width 70 mm
 Weight 119 gr (Without Stand)
 Color Black
 AC Power requirements 5VDC ± 0.5V
 Power consumption Operation Mode: 340 mA @5VDC
 Power consumption Standby Mode: 190 mA @5VDC
 Light Levels 100.000 Lux
 Operation temperature 0°C ~ 50°C
 Storage temperature -40 °C ~ 70 °C
 Humidty %5 ~ %95 (Non Condensing)
 Drop Durability 1,5 meter
 IP Standard IP42
 ESD Protection (Air Discharge) 16 kV
 Scanning Capability
 1D Linear barcodes Autodiscriminates all standard 1D codes including GS1
Databar™ linear codes
 Postal Codes Australian Post; British Post; Canadian Post; China Post; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)
 Stacked Codes EAN/JAN Composites; GS1 DataBar Composites; GS1, DataBar Expanded Stacked; GS1 DataBar Stacked; GS1, DataBar Stacked Omnidirectional
 Scanning Distances
 Scanning Distances 5 mils : 2.5 to 15.0 cm
7.5 mils : 0 to 24.0 cm
10 mils: 0 to 35.0 cm
13 mils: 0 to 40.0 cm
20 mils: 0 to 60.0 cm
 Safety and Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use.
 Environmental Compliance Complies to China end EU RoHS
