Newland MT9052
(Orca II)
Android Handheld Terminal

● Android 8.1 (Oreo) Operation Systems
● GMS (Google Mobile Service) Support
● Quad Core 1,5 Ghz Proccessor
● 2 GB RAM, 16 GB ROM
● 5 Inch Capacitive Touch Screen
● Wifi, Bluetooth, 4G, NFC, GPS Technology
● 2D Barcode Scanner
● IP65 Protection Class
Note: This Model Does Not Have GSM (Speaking) Feature

 Model  Operation System Wifi Bluetooth 4G GSM
 MT9052-GL-2WE-DO  Android 8.1 (Oreo) Yes Yes Yes None
 Micro Processor Quad Core 1,5 Ghz (64-bit) Proccessor
 Memory 2 GB RAM, 16 GB ROM
 Operation System Android 8.1 (Oreo)
 Camera 8 megapixels, auto focus, with LED flashlight
 Keypad Quantity 10 Pcs (Including Side Keys)
Left Volume Up, Volume Down, Left Scan Key
Right Right Scan Key, Power Button, Function Key
Front  Feature Button, Home Button, Scan Button, Back Button
 Notification Vibrator, Muli Color LED and Speaker
 Expansion MicroSD card slot (Max. 32 GB)
 Display Type HD
 Touch Screen Type Capacitive
 Dimension 5" (Inch)
 Resolutioin 1280 x 720 Pixel
Barcode Scanner
 Optic System 2D Area Imager
 Supported Barcode Types 1D: Code 128, UCC/EAN-128, AIM 128, EAN-8, JAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 25, ITF-6, ITF-14, Deutsche 14, Deutsche 12, COOP 25, Matrix 25, Industrial 25, Standard 25, Code 39, Codabar/NW7, Code 93, Code 11, Plessey, MSI/Plessey, GS1 Databa
2D: QrCode, PDF417, DataMatrix, MaxiCode etc.
 USB Micro USB
 Wifi Frequency 2.4 Ghz and 5 Ghz
Protocol IEEE 802.11 a/b/g/n/ac
 Bluetooth Bluetooth 4.0 LE
 WWAN 2G: GSM/GPRS/EDGE (900/1800MHz)
3G: WCDMA (B1, B8); CDMA2000 1X/ EV-DO Rev. A (BC0);
TD-SCDMA (B34, B39)
4G: TD-LTE (B38, B39, B40, B41), FDD-LTE (B1, B3)
SIM Slot: Mini SIM
 GSM None
 GPS Available
 RFID Frequency: 13,56 Mhz
Supported Tags: ISO14443A/B, MIFARE, Felica, NFC Forum Tags, ISO15693
 Power Source Input: AC100 ~ 240V, 50 ~ 60Hz
Output: 5V/2A
 Main Battery 3.8V, 4500 mAh
 Working time ~ 10 Hours
 Charge time ~ 5 Hours (Via AC Adapter)
 Dimensions Width: 78.5 mm
Height: 155 mm
Thickness: 20.5 mm
Weight 260g (including battery)
 Operating temperature -20°C to 55°C
 Storage temperature -30°C to 70°C
 Drop 1,5 meter
 Environmental Sealing IP65
 Certifications CE,RED,FCCID,RoHS,IEC6247,Laser Safety (Class II)

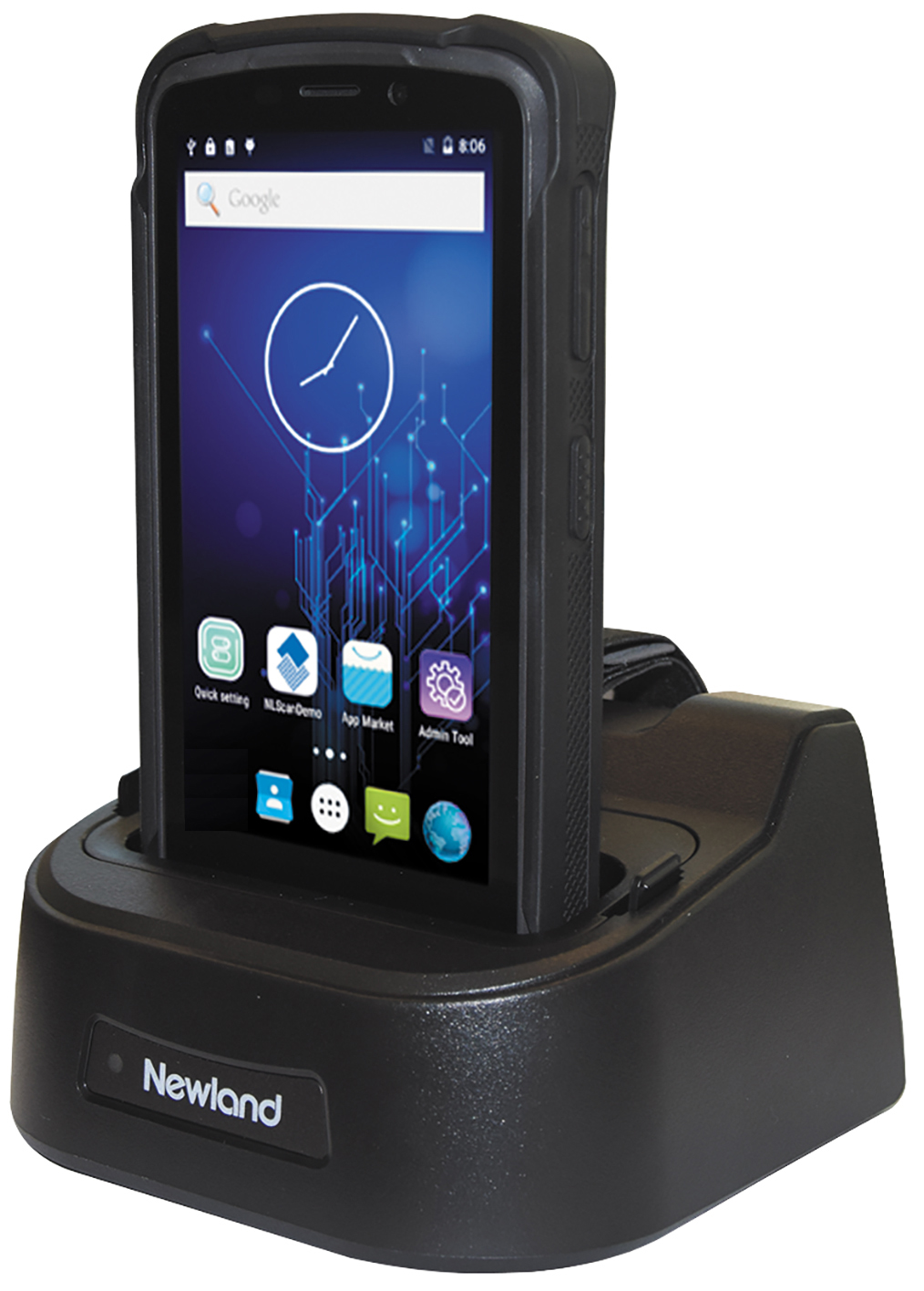

 Accessories Single Charging Cradle
USB Cable
AC adapter

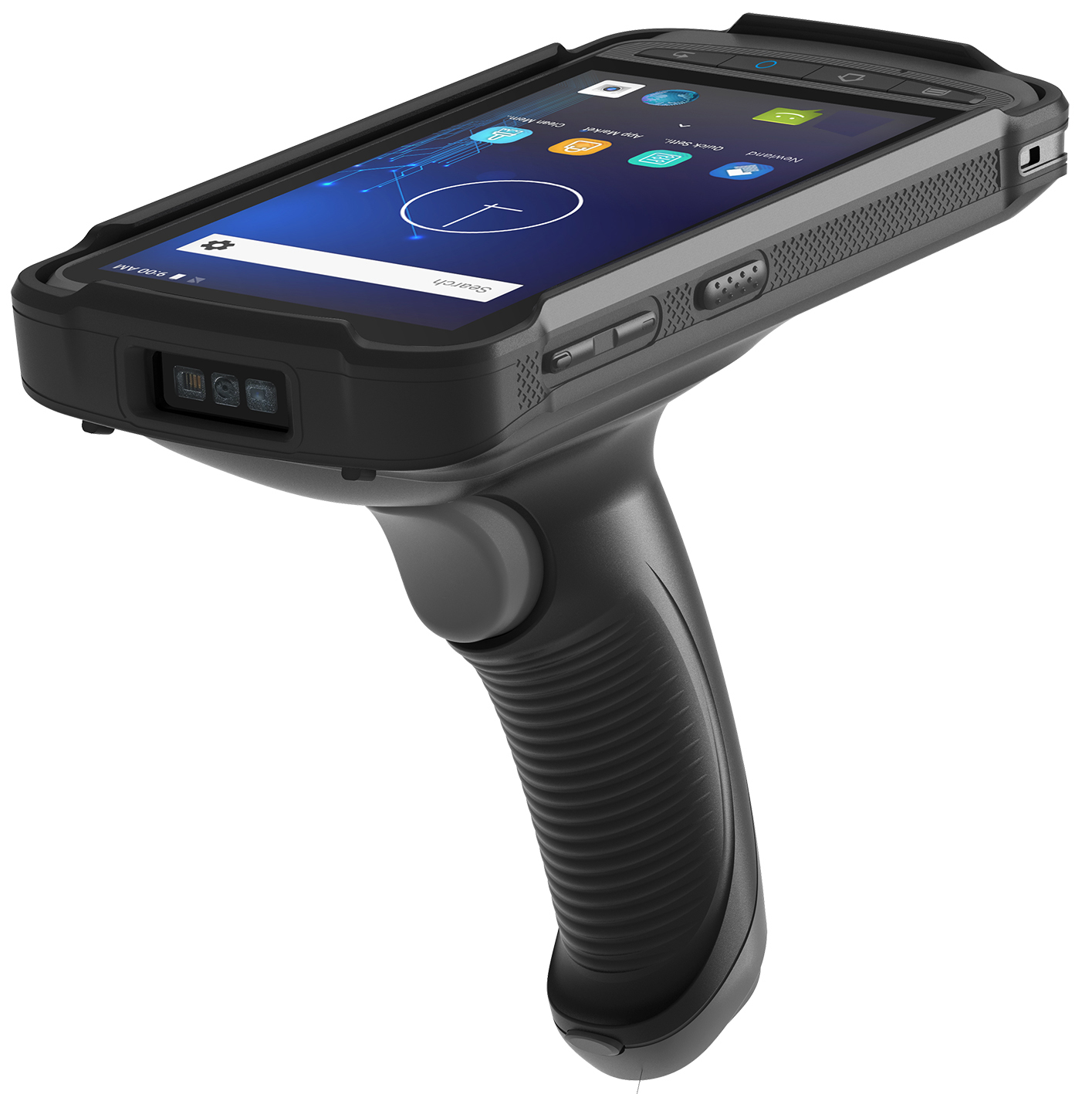

Pistol Grip
Wrist Strap
Hand Strap
