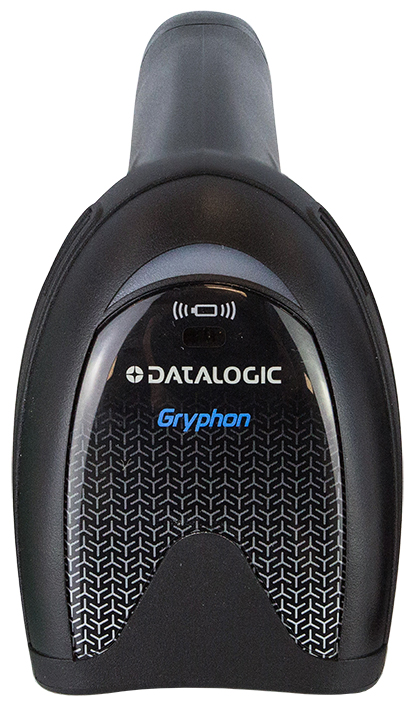

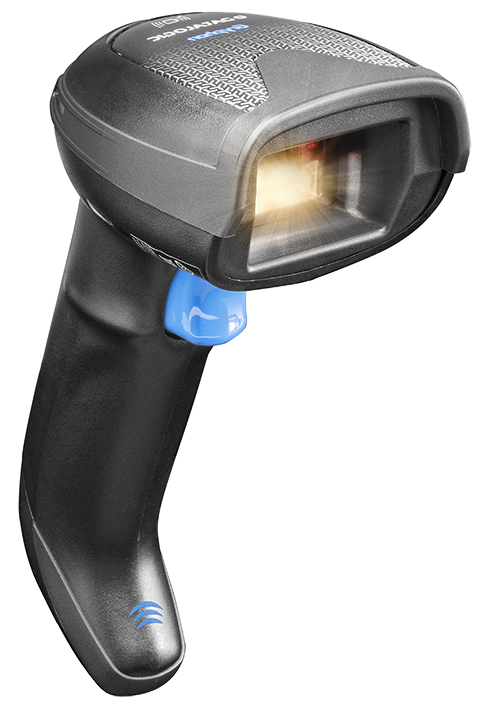

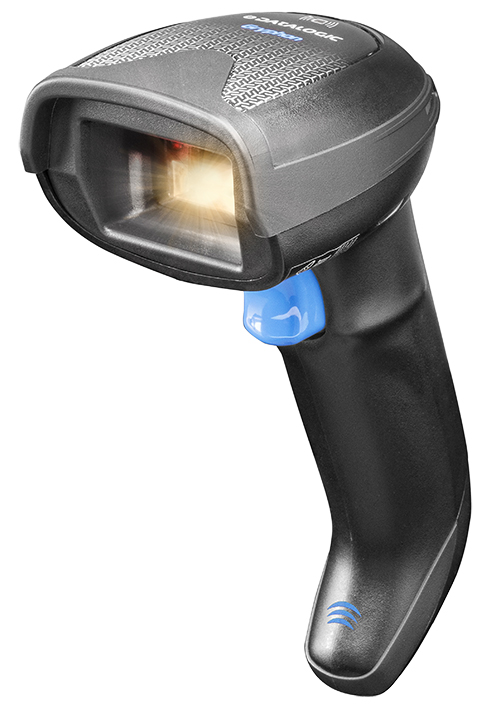

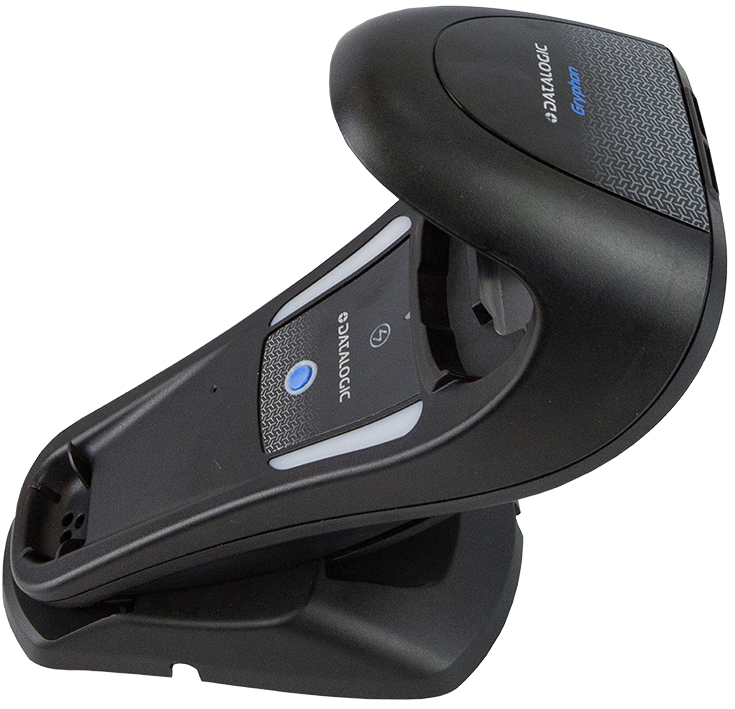

Datalogic Gryphon GBT4500
Wireless 2D Barcode Scanner



● 2D Barcode Scanner
● Wide VGA (752 x 480 Pixel) Imager Sensor
● Bluetooth Wireless Technology with up to 30 m (98 ft) range

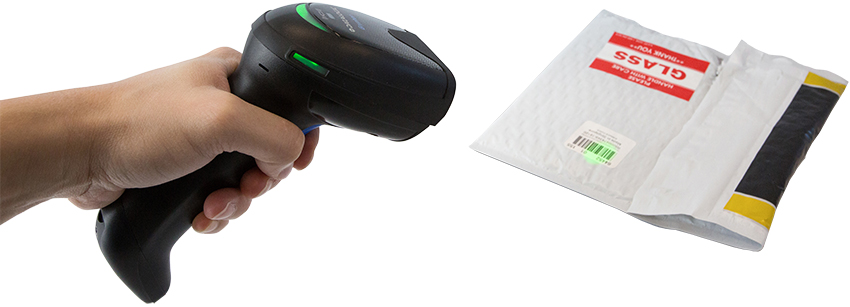

● ‘Green Spot’ for good-read feedback plus the 4-dot Aimer
● Fastest speed-to-read: 325 scans/second
● Point-to-point and multi-point transmission

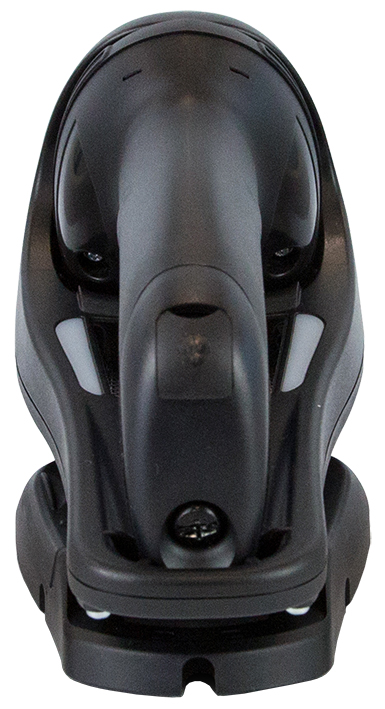

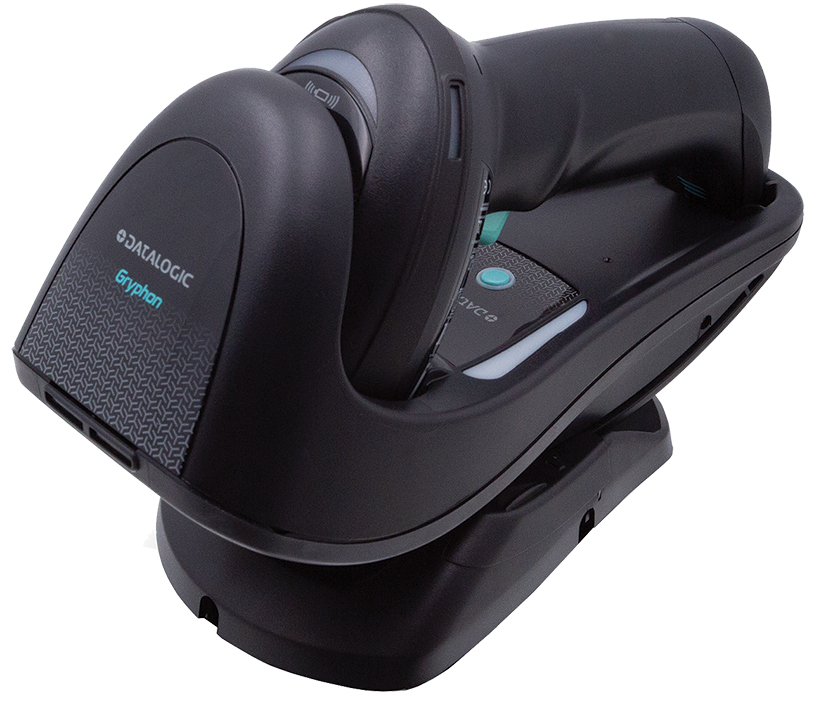

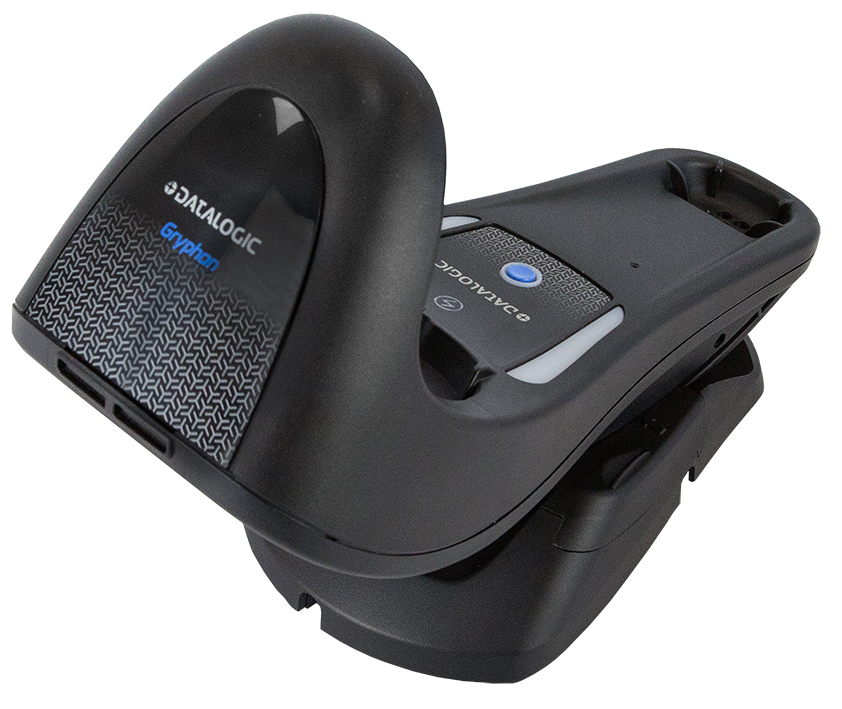

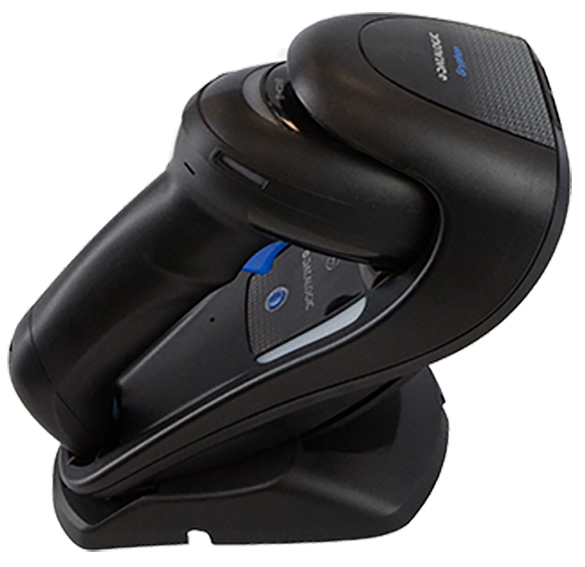

● Two-position cradle with Scan-While-Charging capability
● Batch Mode capability (>1200 codes stored in memory)
● User-replaceable and long lasting Lithium-Ion battery

 Reading Performance
 Image Sensör Wide VGA (752 x 480 pixel)
 Light source (Aiming) 610-650 nm Red LED
 Motion Tolerance 25 IPS
 Print Contrast (Minimum) 25%
 Scan Angle Pitch: +/- 40°; Roll (Tilt): 360°; Skew (Yaw): +/- 40°
 Indicators (LED) Ayarlanabilir Ses Tonu, Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED
 Resolution 1D Linear: 0.102 mm / 4 mils
Data Matrix: 0.178 mm / 7 mils
PDF417: 0.102 mm / 4 mils
 Cordless Communication
 Protocol Bluetooth 2.0 Class 2
 Frekans 2,4 Ghz
 Profil SPP (Serial Port Profile)
 Readers per radio receiver Max. 7 Device (Optional)
 Decoding Capability
 1D Linear barcodes Autodiscriminates all standard 1D codes including GS1 Databar™ linear codes
 2D Kodlar Aztec Code, China Han Xin Code, Data Matrix, MaxiCode, QR Code
 Postal Codes Australian Post, British Post, Canadian Post, China Post, Japanese Post, KIX Post, Korea Post, Planet Code, Postnet, Royal Mail Code (RM4SCC)
 Stacked Codes EAN/JAN Composites, GS1 DataBar Composites, GS1, DataBar Expanded Stacked, GS1 DataBar Stacked, GS1, DataBar Stacked Omnidirectional
 Scanning Distances
 Scanning Distances Code 39: 5 mils: 4.0 ~ 19.0 cm
Code 39: 10 mils: 1.0 ~ 30.0 cm
Data Matrix: 10 mils: 2.0 ~ 16.0 cm
Data Matrix: 15 mils: 0 ~ 23.6 cm
EAN -13: 13 mils: 1.5 ~ 40.0 cm
PDF417: 10 mils: 0.5 ~ 22.0 cm
QR Code: 10 mils: 3.0 ~ 12.5 cm
 Physical
 Height 170 mm
 Depth 65 mm
 Width 70 mm
 Weight 119 gr (Without Stand)
 Color Black
 Electrical
 AC Power requirements 5VDC ± 0.5V
 Power consumption Operation Mode: 340 mA @5VDC
 Power consumption Standby Mode: 190 mA @5VDC
 Environmental
 Light Levels 100.000 Lux
 Operation temperature 0°C ~ 50°C
 Storage temperature -40 °C ~ 70 °C
 Humidty %5 ~ %95 (Non Condensing)
 Drop Durability 1,5 meter
 IP Standard IP42
 ESD Protection (Air Discharge) 16 kV
 Scanning Distances
 Scanning Distances 5 mils : 2.5 to 15.0 cm
7.5 mils : 0 to 24.0 cm
10 mils: 0 to 35.0 cm
13 mils: 0 to 40.0 cm
20 mils: 0 to 60.0 cm
 Safety and Regulatory
 Agency Approvals The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications.
 Environmental Compliance Complies to China end EU RoHS
 Laser Classification Caution Laser Radiation - Do not stare into beam; IEC 60825 Class 2
 Utilities
 Datalogic Aladdin Datalogic Aladdin configuration program is available for download at no charge
 OPOS / JavaPOS JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge.
 Remote Host Download Lowers service costs and improves operations
