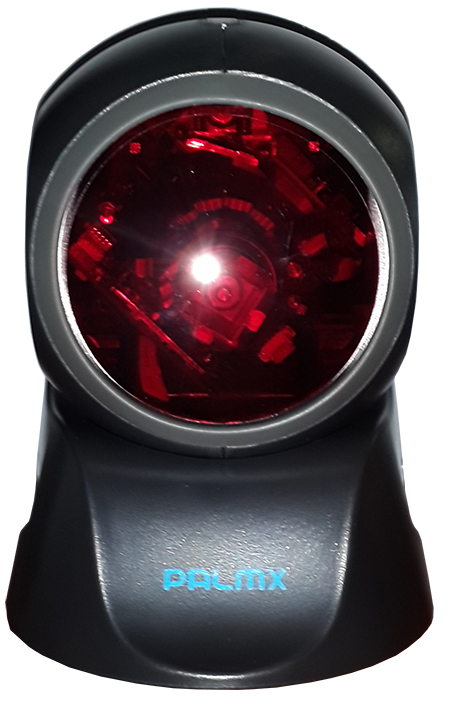

● 1D Omnidirectional laser barcode scanner
● 24 Number of scan Line
● 2000 Scan per second
● 0,127 mm (5 mil) resolution
● 0 ~ 230 mm scanning distance
● Handsfree uses
● RS-232C, PS/2, USB and Virtual COM Interface
| Operational | |
| Micro Proccessor | 32 Bit |
| Light source | 650 nm (±10) visible laser diode (VLD) |
| 24 | Single Line |
| Depth of field | 0 - 230 mm |
| Scan Rate | 2000 scans/sec |
| Minimum Bar Width | 0,127 mm (5 mil) |
| Print Contrast | %30 |
| Indicators (LED) | LED and Beeper |
| System Interfaces | PS/2, RS-232C, USB and Virtual COM |
| Physical | |
| Length | 112 mm |
| Width | 102 mm |
| Height | 147 mm |
| Weight | 360 Gr |
| Cables | Standard 2 meter straight |
| Material | Abs Plastic |
| Color | Black |
| Electrical | |
| Input Voltage | +5V DC, 250 mA |
| Output | +1.25 Watt |
| Environmental | |
| Operation temperature | 0°C ~ 40°C |
| Storage temperature | -10 °C ~ 60 °C |
| Humidty | %20 ~ %95 (Non Condensing) |
| IP Standart | IP54 |
| Ortam Işık Seviyesi | Max. 4800 Lux |
| Drop Durability | 1,2 Meter |
| Decode Capabilities | |
| Barcode Types | UPC-A,UPC-E,EAN-13,EAN-8,ISBN/ISSN, Code39, CODABAR,Interleaved 2 of 5, Industrial 2 of 5, Chinese 2 of 5, Code128, Code93,Code11 MSI/PIESSEY, UK/PLESSE,UCC/EAN128, China Postage |
