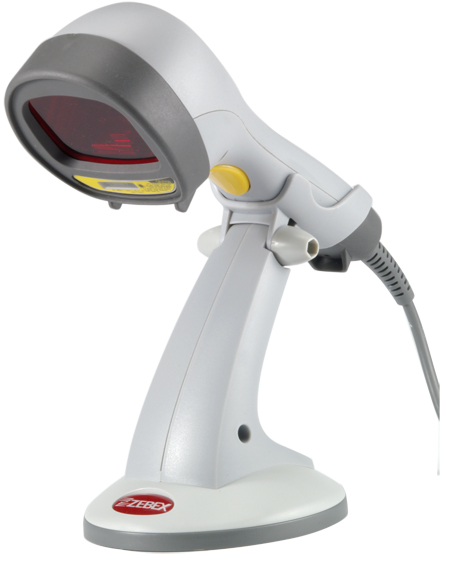

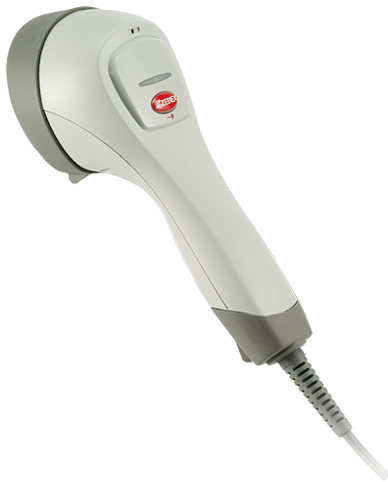

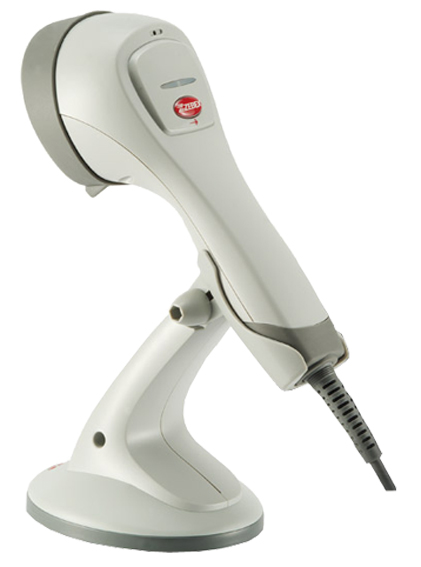

● 1D Omnidirectional laser barcode scanner
● 20 Number of scan Line
● 1400 Scan per second
● 0 ~ 200 mm scanning distance
● Support both omnidirectional and single-line scanning
●
Stand-alone as a hands-free scanner or as a
scanning modul
| Operational | |
| Light source | 650 nm visible laser diode (VLD) |
| Scan Pattern | 5 directions of scan field |
| Number of Scan line | 20 |
| Depth of field | 0 – 200 mm (UPC/EAN 100%, PCS=90%) |
| Scan Rate |
1.400 scans per second
(omnidirectional) 74 scans per second (single-line) |
| Minimum Bar Width | 0.125 mm (5 mil) (0.1 mm actually)(Code 39, PCS=90%) |
| Print Contrast | 30% @ UPC/EAN 100% |
| Indicators (LED) | Two color LED (green and red) |
| Beeper Operation | Programmable tone & beep time |
| System Interfaces | Keyboard, RS-232C, HID USB, wand |
| Physical | |
| Height | 68,4 mm |
| Depth | 200,3 mm |
| Width | 75,2 mm |
| Weight | 245 gr (Stand Excluded) |
| Cable | Standard 2 meter straight |
| Material | ABS Plastic |
| Electrical | |
| Input Voltage | 5 VDC ±10% |
| Operating Current | 200 mA |
| Power Consumption | 1,35 Watts |
| Laser Safety | CDRH Class IIa; IEC 60825 Class 2 |
| EMC | CE EN55022 B, FCC Part 15 Class B, VCCI, BSMI |
| Environmental | |
| Operation temperature | 0°C ~ 40°C |
| Storage temperature | -20 °C ~ 60 °C |
| Humidty | %5 ~ %95 (Non Condensing) |
| Light Levels | Max. 4.500 Lux (fluorescence) |
| Drop Durability | Designed to with stand 1,5 m drops |
| Supported Barcode Types | |
| Standart | UPC/EAN/JAN, UPC/EAN with supplementary, JAN 8 & JAN 13,ISBN/ISSN, Japanese Bookland EAN, Code 39, Code 39 with full ASCII, trioptic Code 39, Codabar (NM7), Code 128, Code 128 with full ASCII, Code 93, Interleaved 2 of 5 (ITF), Addendum 2 of 5, MSI/Plessy, China Postal Code, Code 32 |
| Optional | Industrial 2 of 5, Standard 2 of 5, Discrete 2 of 5, Matrix 2 of 5, Code 11, UPC/EAN RSS, RSS variantd |
